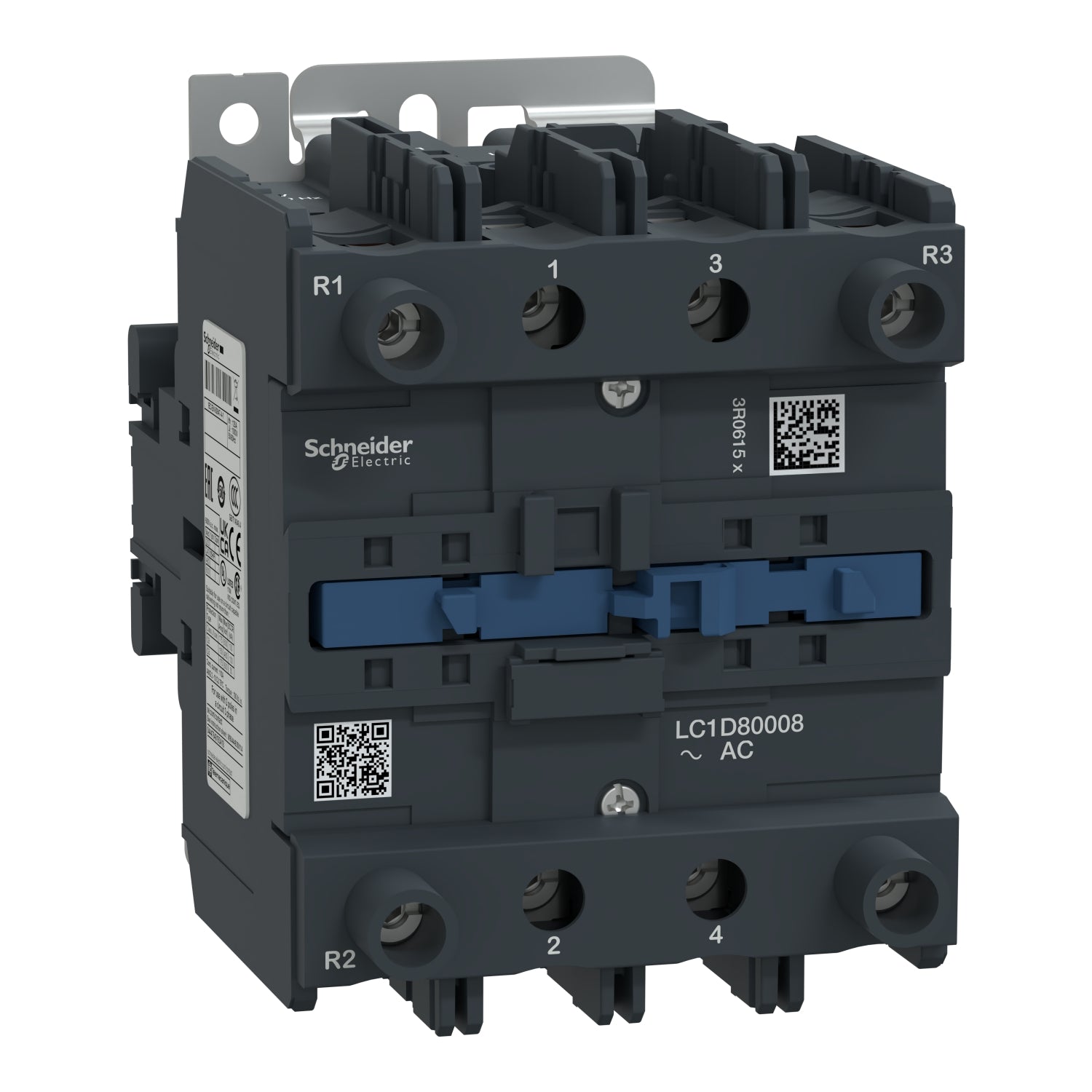

Schneider Electric LC1D80008M7 4-Pole 125A Contactor 220V AC Coil TeSys Deca
- Regular price
- $842.00
- Sale price
- $842.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1D80008M7
Description
The Schneider Electric LC1D80008M7 is a TeSys Deca 4-pole contactor designed for switching non-inductive and resistive loads in industrial power circuits. It supports high current operation up to 125A and operates with a 220V AC control coil, ensuring stable and reliable switching performance. This contactor is built for demanding applications requiring durability, precise control, and consistent electrical performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1D80008M7 |
| Subcategory | Contactors |
| Product Series | TeSys Deca |
| Contactor Type | Non-inductive (Resistive Load) |
| Poles | 4P (2NO + 2NC) |
| Rated Operational Current | 125 A (AC-1) |
| Rated Operational Voltage | Up to 1000 V AC |
| Control Voltage | 220 V AC 50/60 Hz |
| Thermal Current (Ith) | 125 A |
| Breaking Capacity | 1100 A at 440 V |
| Mechanical Durability | 4 million cycles |
| Electrical Durability | 0.8 million cycles |
| Mounting Type | DIN Rail or Panel Mount |
| Protection Rating | IP20 (Front Face) |
| Operating Temperature Range | -40°C to +60°C |
| Dimensions (H x W x D) | 127 x 96 x 140 mm |
| Weight | 4.06 lb (1.84 kg) |
Information About LC1D80008M7
The LC1D80008M7 is part of Schneider Electric’s TeSys Deca series, engineered for robust control of resistive loads in industrial and commercial systems. It features a 4-pole configuration with 2 normally open and 2 normally closed contacts, enabling flexible circuit design and control schemes. The device is constructed with durable materials and supports both DIN rail and panel mounting, making it adaptable to various installation environments. Designed for compatibility with a wide range of accessories and auxiliary components, it integrates easily into motor control and power distribution systems while meeting multiple international standards.
Key Features:
- 4-Pole Configuration: Includes 2NO + 2NC contacts for versatile switching applications
- High Current Capacity: Rated operational current up to 125A for AC-1 applications
- 220V AC Coil: Ensures stable control circuit operation at 50/60 Hz
- Wide Voltage Range: Supports power circuits up to 1000V AC
- Durable Construction: Designed for up to 4 million mechanical cycles
- Flexible Mounting Options: Compatible with DIN rail or panel mounting
- Screw Terminal Connections: Secure and reliable wiring for power and control circuits
- Certified to Global Standards: Complies with IEC, UL, CSA, CCC, EAC, and Marine certifications
The LC1D80008M7 delivers the reliability and precision required for high-current resistive load switching in industrial control systems.
