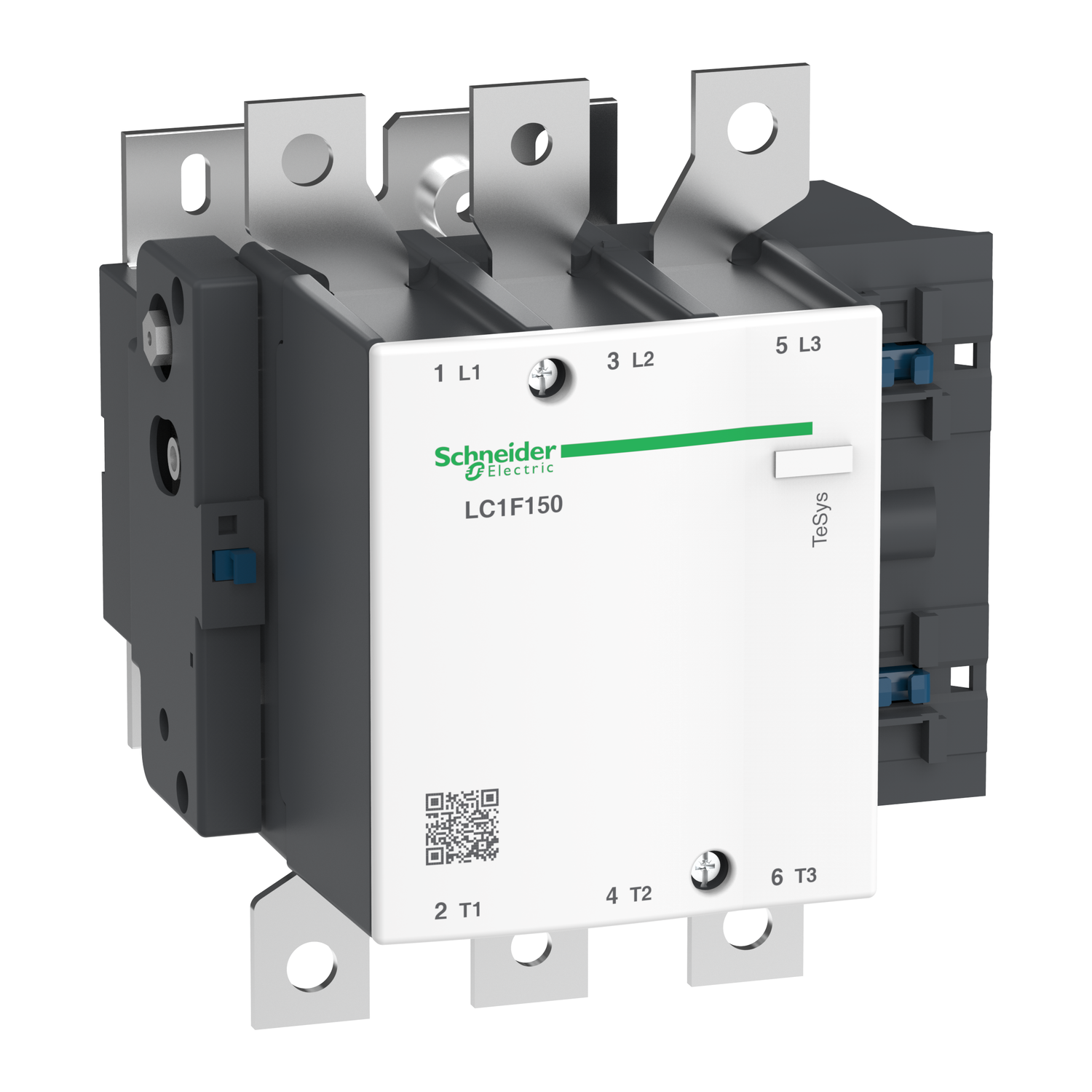

Schneider Electric LC1F150G7 TeSys F 3-Pole 150A IEC Contactor with 120V AC Coil
- Regular price
- $549.00
- Sale price
- $549.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F150G7
Description
The Schneider Electric LC1F150G7 is a TeSys F nonreversing contactor built for motor control and resistive load switching in industrial power systems. It is a 3-pole device rated for 150A in AC-3 duty and uses a 120V AC 50/60Hz control coil for dependable switching in panel-mounted installations. Its design supports demanding service conditions where consistent contact performance and high current capacity are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1F150G7 |
| Subcategory | Contactors |
| Series | TeSys F |
| Product Type | Nonreversing IEC contactor |
| Poles | 3P |
| Main Contact Configuration | 3 NO |
| Built-In Auxiliary Contact | 1 NO |
| Contactor Application | Motor control; resistive load |
| Utilization Category | AC-1, AC-3, AC-4 |
| Rated Operational Current (AC-3) | 150 A at <= 440 V AC |
| Rated Operational Current (AC-1) | 250 A at <= 440 V AC |
| Rated Operational Voltage | <= 690 V AC 50/60 Hz; <= 460 V DC |
| Control Circuit Voltage | 120 V AC 40...400 Hz |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 1000 V IEC 60947-4-1 |
| Mechanical Durability | 10 million cycles |
| Maximum Operating Rate | 2400 cycles/hour at 55°C |
| Mounting Support | Plate / panel mount |
| Ingress Protection | IP2X front face with shrouds |
| Dimensions (H x W x D) | 6.7 x 6.4 x 6.7 in (170 x 163.5 x 171 mm) |
| Weight | 7.56 lb (3.43 kg) |
Information About
LC1F150G7
The LC1F150G7 is a TeSys F series IEC contactor designed around a 3-pole, 3 NO power contact arrangement for motor control and AC-1 resistive load applications. It is built for direct panel mounting and uses bolted power connections with screw clamp control terminals, which makes it suitable for industrial control panels, infrastructure equipment, building systems, and renewable energy installations. The unit includes a built-in 1 NO auxiliary contact as standard and supports accessories that expand control and integration options. Its electrical design covers AC-1, AC-3, and AC-4 utilization categories, with a 120V AC coil operating across 40 to 400 Hz and insulation ratings up to 1000V per IEC 60947-4-1.
Key Features:
- TeSys F Platform: Designed within Schneider Electric’s TeSys F range for motor control and resistive load switching in heavy-duty applications.
- 150A AC-3 Rating: Handles 150A at up to 440V AC in AC-3 duty for three-phase motor control.
- 250A AC-1 Capacity: Supports resistive loads up to 250A at up to 440V AC-1.
- 120V AC Coil: Uses a 120V AC 50/60Hz control coil with operation across 40 to 400 Hz.
- 3-Pole Main Contacts: Provides a 3P, 3 NO contact structure for nonreversing power switching.
- Built-In Auxiliary Contact: Includes one normally open auxiliary contact as standard for control circuit functionality.
- High Short-Circuit Coordination: Can achieve SCCR up to 65kA with a 480VAC breaker up to 250A, or up to 100kA with 600VAC Class J or CC fuses up to 200A.
- Long Service Life: Rated for 10 million mechanical cycles with operating rates up to 2400 cycles per hour at 55°C.
The LC1F150G7 delivers the reliability and precision required for industrial motor control, power switching, and heavy-duty panel applications.
Description
The Schneider Electric LC1F150G7 is a TeSys F nonreversing contactor built for motor control and resistive load switching in industrial power systems. It is a 3-pole device rated for 150A in AC-3 duty and uses a 120V AC 50/60Hz control coil for dependable switching in panel-mounted installations. Its design supports demanding service conditions where consistent contact performance and high current capacity are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1F150G7 |
| Subcategory | Contactors |
| Series | TeSys F |
| Product Type | Nonreversing IEC contactor |
| Poles | 3P |
| Main Contact Configuration | 3 NO |
| Built-In Auxiliary Contact | 1 NO |
| Contactor Application | Motor control; resistive load |
| Utilization Category | AC-1, AC-3, AC-4 |
| Rated Operational Current (AC-3) | 150 A at <= 440 V AC |
| Rated Operational Current (AC-1) | 250 A at <= 440 V AC |
| Rated Operational Voltage | <= 690 V AC 50/60 Hz; <= 460 V DC |
| Control Circuit Voltage | 120 V AC 40...400 Hz |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 1000 V IEC 60947-4-1 |
| Mechanical Durability | 10 million cycles |
| Maximum Operating Rate | 2400 cycles/hour at 55°C |
| Mounting Support | Plate / panel mount |
| Ingress Protection | IP2X front face with shrouds |
| Dimensions (H x W x D) | 6.7 x 6.4 x 6.7 in (170 x 163.5 x 171 mm) |
| Weight | 7.56 lb (3.43 kg) |
Information About
LC1F150G7
The LC1F150G7 is a TeSys F series IEC contactor designed around a 3-pole, 3 NO power contact arrangement for motor control and AC-1 resistive load applications. It is built for direct panel mounting and uses bolted power connections with screw clamp control terminals, which makes it suitable for industrial control panels, infrastructure equipment, building systems, and renewable energy installations. The unit includes a built-in 1 NO auxiliary contact as standard and supports accessories that expand control and integration options. Its electrical design covers AC-1, AC-3, and AC-4 utilization categories, with a 120V AC coil operating across 40 to 400 Hz and insulation ratings up to 1000V per IEC 60947-4-1.
Key Features:
- TeSys F Platform: Designed within Schneider Electric’s TeSys F range for motor control and resistive load switching in heavy-duty applications.
- 150A AC-3 Rating: Handles 150A at up to 440V AC in AC-3 duty for three-phase motor control.
- 250A AC-1 Capacity: Supports resistive loads up to 250A at up to 440V AC-1.
- 120V AC Coil: Uses a 120V AC 50/60Hz control coil with operation across 40 to 400 Hz.
- 3-Pole Main Contacts: Provides a 3P, 3 NO contact structure for nonreversing power switching.
- Built-In Auxiliary Contact: Includes one normally open auxiliary contact as standard for control circuit functionality.
- High Short-Circuit Coordination: Can achieve SCCR up to 65kA with a 480VAC breaker up to 250A, or up to 100kA with 600VAC Class J or CC fuses up to 200A.
- Long Service Life: Rated for 10 million mechanical cycles with operating rates up to 2400 cycles per hour at 55°C.
The LC1F150G7 delivers the reliability and precision required for industrial motor control, power switching, and heavy-duty panel applications.
