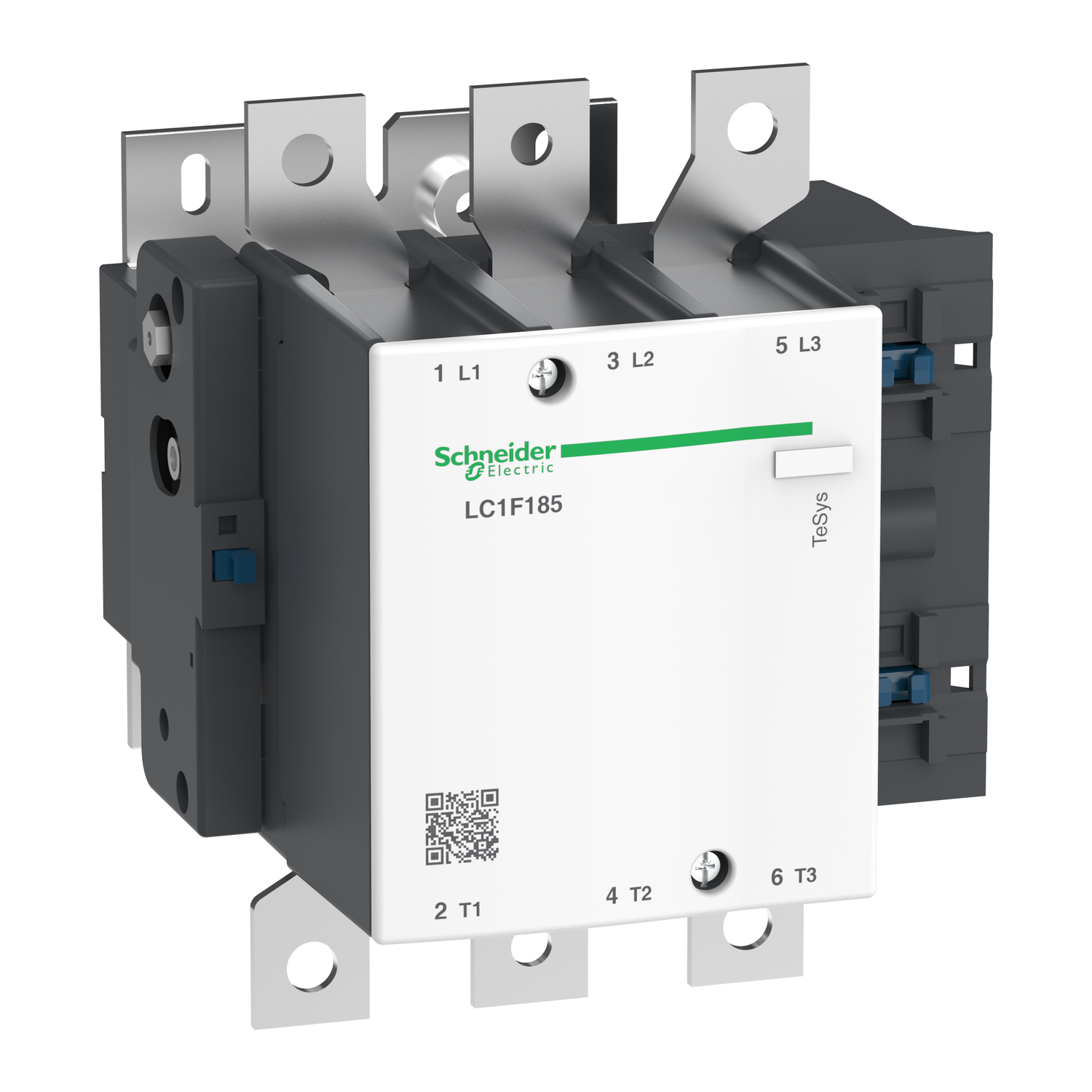

Schneider Electric LC1F185BD TeSys F 3P 185A Contactor 24V DC Coil for Motor Control
- Regular price
- $1,138.00
- Sale price
- $1,138.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F185BD
Description
The Schneider Electric LC1F185BD is a TeSys F three-pole contactor designed for switching industrial motors and resistive loads in high-current control systems. It is rated for AC-3 motor duty up to 185 A at 440 V and supports motor applications up to 90 kW at 380...400 V AC. Its 24 V DC coil and heavy-duty contactor construction make it suitable for panel-mounted motor starters and power switching assemblies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1F185BD |
| Subcategory | Contactor |
| Range | TeSys |
| Product Series | TeSys F |
| Product Type | Contactor |
| Poles Description | 3P |
| Power Pole Contact Composition | 3 NO |
| Rated Operational Voltage | <= 690 V AC 50/60 Hz; <= 460 V DC |
| Control Circuit Voltage | 24 V DC |
| Rated Operational Current | 275 A AC-1 at <= 440 V; 185 A AC-3 at <= 440 V |
| Motor Power | 90 kW at 380...400 V AC 50/60 Hz (AC-3) |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 1000 V IEC 60947-4-1; 1500 V VDE 0110 group C |
| Rated Breaking Capacity | 1480 A conforming to IEC 60947-4-1 |
| Mechanical Durability | 10 Mcycles |
| Maximum Operating Rate | 2400 cyc/h at 55 °C |
| Mounting Support | Plate |
| IP Degree of Protection | IP2X front face with shrouds |
| Ambient Operating Temperature | -5...55 °C |
| Dimensions | 174 mm H x 168.5 mm W x 181 mm D |
| Weight | 4.65 kg |
Information About LC1F185BD
The LC1F185BD is part of Schneider Electric’s TeSys F range and is built as a 3P contactor with 3 NO main power contacts for motor control and resistive load applications. It operates with a 24 V DC control circuit, and Schneider Electric’s U.S. support documentation identifies the corresponding standard DC replacement coil family for LC1F185 devices as LX4FG, with 24 V DC represented by LX4FG024. The unit is designed for bolted power connections using bars or cable lugs, with screw clamp terminals on the control circuit and plate mounting for industrial installations. It is specified for high operating rates up to 2400 cycles per hour, operation up to 55 °C ambient, and compliance with major IEC, UL, CSA, UKCA, and marine-related certifications.
Key Features:
- TeSys F platform: Built within Schneider Electric’s TeSys F contactor range for industrial motor control and resistive load switching.
- 3-pole contact design: Uses a 3P, 3 NO main contact configuration for three-phase power switching duties.
- 24 V DC coil control: Operates with a 24 V DC coil; Schneider Electric lists LX4FG024 as the standard DC replacement coil for LC1F185 devices.
- AC-3 current rating: Rated at 185 A AC-3 at up to 440 V for motor applications.
- Motor power capability: Supports up to 90 kW at 380...400 V AC-3, with higher ratings available at other voltages.
- High operating endurance: Designed for operating rates up to 2400 cycles per hour with mechanical durability of 10 million cycles.
- Industrial connection format: Provides bolt terminals for bars or cable lugs and control screw clamp terminals for standard panel wiring.
- Protection and insulation: Features IP2X front-face protection with shrouds and an 8 kV rated impulse withstand voltage.
The LC1F185BD delivers the reliability and precision required for heavy-duty motor control and resistive load switching in industrial power systems.
