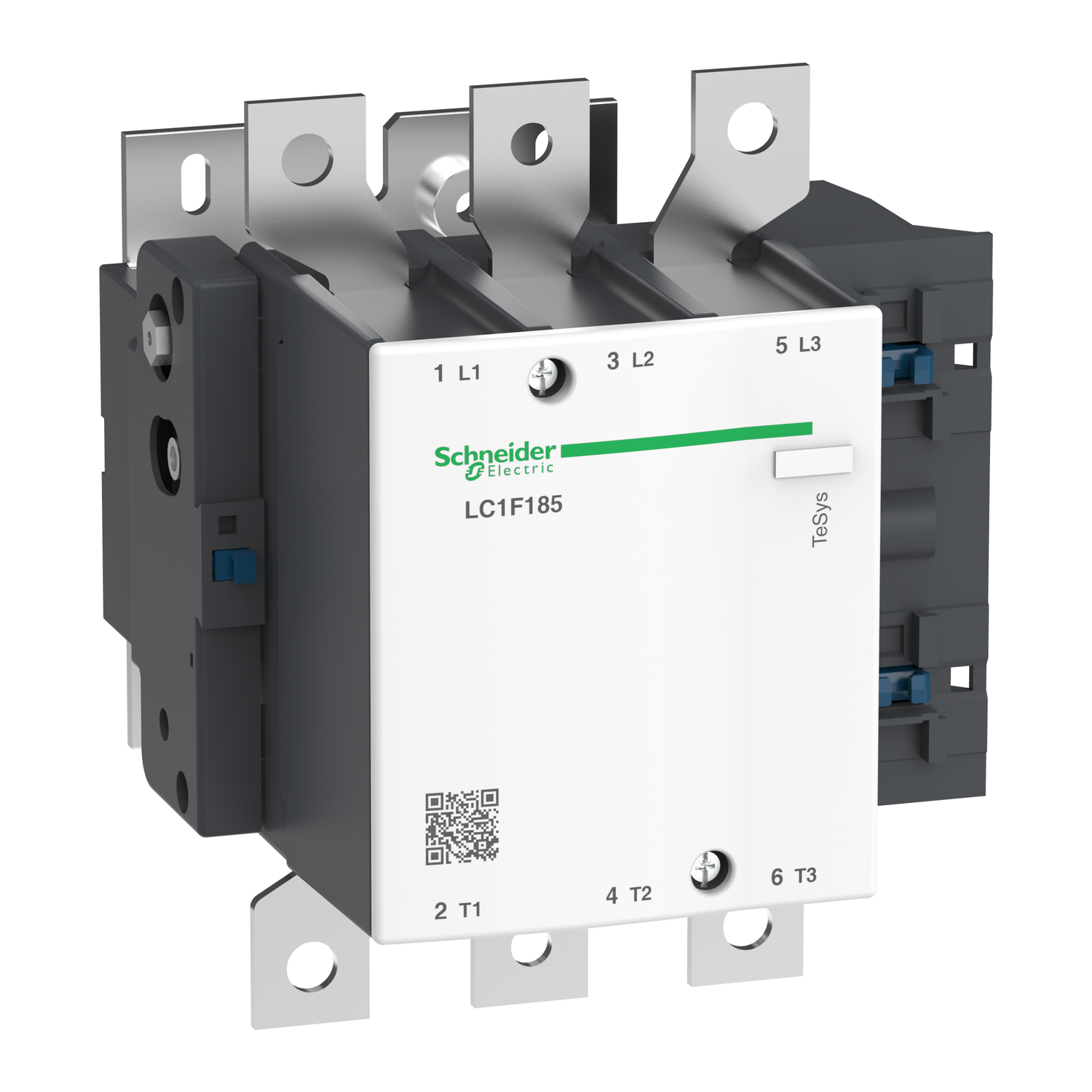

Schneider Electric LC1F185G6 TeSys F 3P Contactor 185A 120V AC Motor Control
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F185G6
Description
The Schneider Electric LC1F185G6 is a TeSys F three-pole contactor designed for switching motors and resistive loads in industrial control systems. It is rated for AC-3 applications up to 185 A at 440 V and supports motor power up to 90 kW at 380...400 V AC. This contactor features a 120 V AC 60 Hz coil and is built for reliable operation in high-demand switching environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1F185G6 |
| Subcategory | Contactor |
| Range | TeSys |
| Product Series | TeSys F |
| Poles Description | 3P |
| Power Pole Contact Composition | 3 NO |
| Rated Operational Voltage | <= 690 V AC 50/60 Hz; <= 460 V DC |
| Control Circuit Voltage | 120 V AC 60 Hz |
| Rated Operational Current | 275 A AC-1; 185 A AC-3 at <= 440 V |
| Motor Power | 90 kW at 380...400 V AC (AC-3) |
| Rated Insulation Voltage | 1000 V |
| Impulse Withstand Voltage | 8 kV |
| Breaking Capacity | 1480 A |
| Mechanical Durability | 10 million cycles |
| Maximum Operating Rate | 2400 cycles/hour |
| Mounting Type | Plate |
| Protection Rating | IP2X front face with shrouds |
| Operating Temperature Range | -5°C to 55°C |
| Dimensions (H x W x D) | 174 x 168.5 x 181 mm |
| Weight | 4.65 kg |
Information About LC1F185G6
The LC1F185G6 is part of the Schneider Electric TeSys F range, engineered for high-current motor control and power switching applications. It features a 3-pole (3 NO) configuration and supports utilization categories AC-1, AC-3, and AC-4, enabling use across a range of industrial loads. The unit operates with a 120 V AC control circuit and is designed for installation using plate mounting with bolted power connections and screw clamp control terminals. It provides high mechanical durability and complies with multiple international standards, making it suitable for demanding industrial environments.
Key Features:
- High current rating: Supports up to 185 A (AC-3) and 275 A (AC-1) for industrial motor control
- Three-pole configuration: 3 NO contacts designed for efficient three-phase load switching
- 120 V AC coil: Operates at 60 Hz for standard industrial control systems
- Wide voltage capability: Rated up to 690 V AC and 460 V DC operation
- High motor capacity: Supports motors up to 90 kW at 400 V AC
- Strong breaking capacity: Rated breaking capacity up to 1480 A for reliable disconnection
- Durable construction: Mechanical durability up to 10 million cycles for long service life
- Flexible installation: Plate mounting with bolt and screw terminal connections
The LC1F185G6 delivers the reliability and precision required for heavy-duty motor control and industrial load switching applications.
