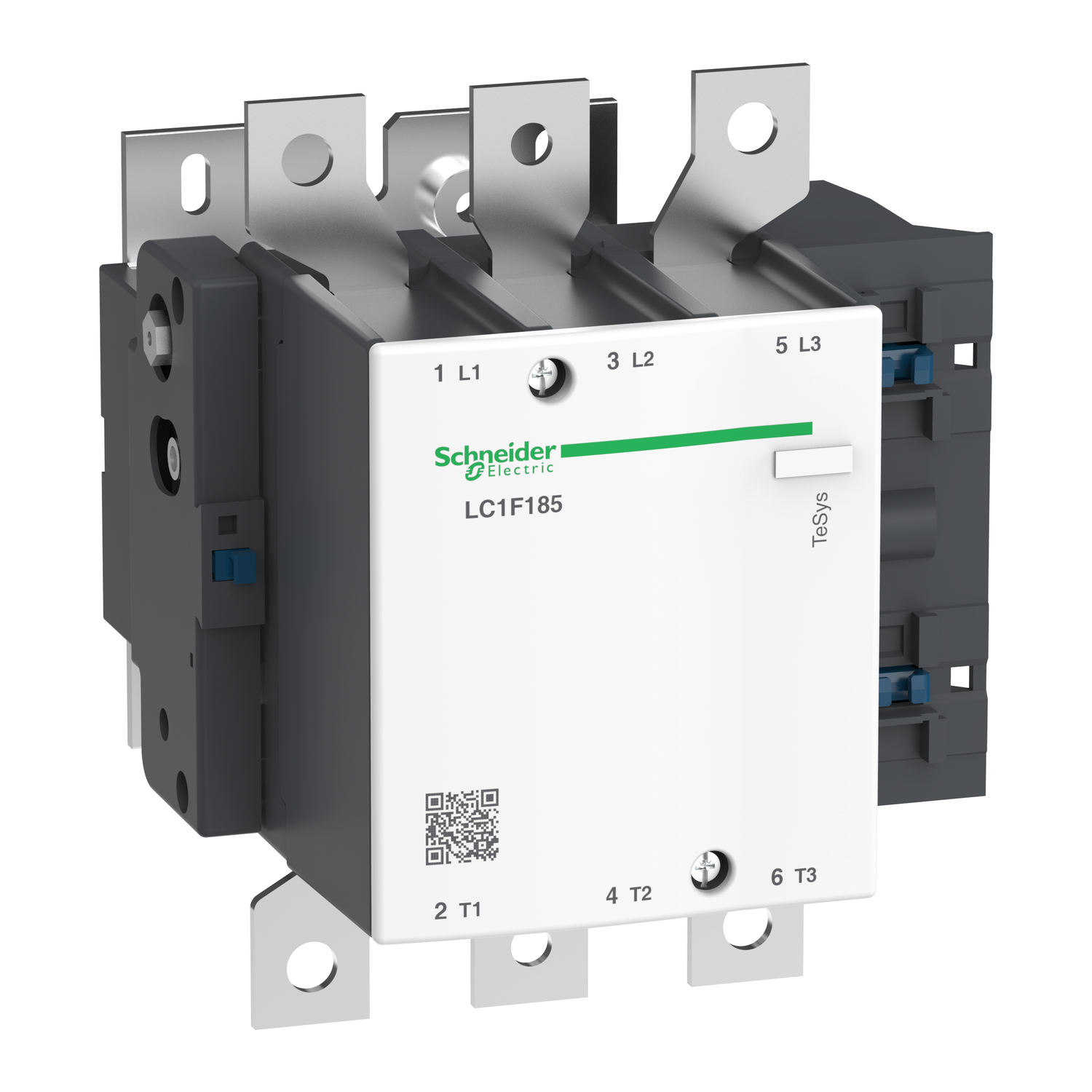

Schneider Electric LC1F185G7 TeSys F 3P Contactor 185A 120V AC Coil for Motor Control
- Regular price
- $788.00
- Sale price
- $788.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F185G7
Description
The Schneider Electric LC1F185G7 is a TeSys F three-pole contactor designed for switching industrial motors and resistive loads in high-current power circuits. It is rated for AC-3 duty up to 185 A and supports motor applications up to 90 kW at 380...400 V AC, making it suitable for demanding control panels and motor starters.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1F185G7 |
| Subcategory | Contactor |
| Range | TeSys |
| Product Series | TeSys F |
| Product Type | Contactor |
| Poles Description | 3P |
| Power Pole Contact Composition | 3 NO |
| Rated Operational Voltage | <= 690 V AC 50/60 Hz; <= 460 V DC |
| Control Circuit Voltage | 120 V AC 40...400 Hz |
| Rated Operational Current | 185 A AC-3 at <= 440 V; 275 A AC-1 at <= 440 V |
| Motor Power | 90 kW at 380...400 V AC 50/60 Hz (AC-3) |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 1000 V IEC 60947-4-1; 1500 V VDE 0110 group C |
| Rated Breaking Capacity | 1480 A conforming to IEC 60947-4-1 |
| Mechanical Durability | 10 Mcycles |
| Maximum Operating Rate | 2400 cyc/h at 55 °C |
| Mounting Support | Plate |
| IP Degree of Protection | IP2X front face with shrouds |
| Ambient Operating Temperature | -5...55 °C |
| Dimensions | 174 mm H x 168.5 mm W x 181 mm D |
| Weight | 4.65 kg |
Information About LC1F185G7

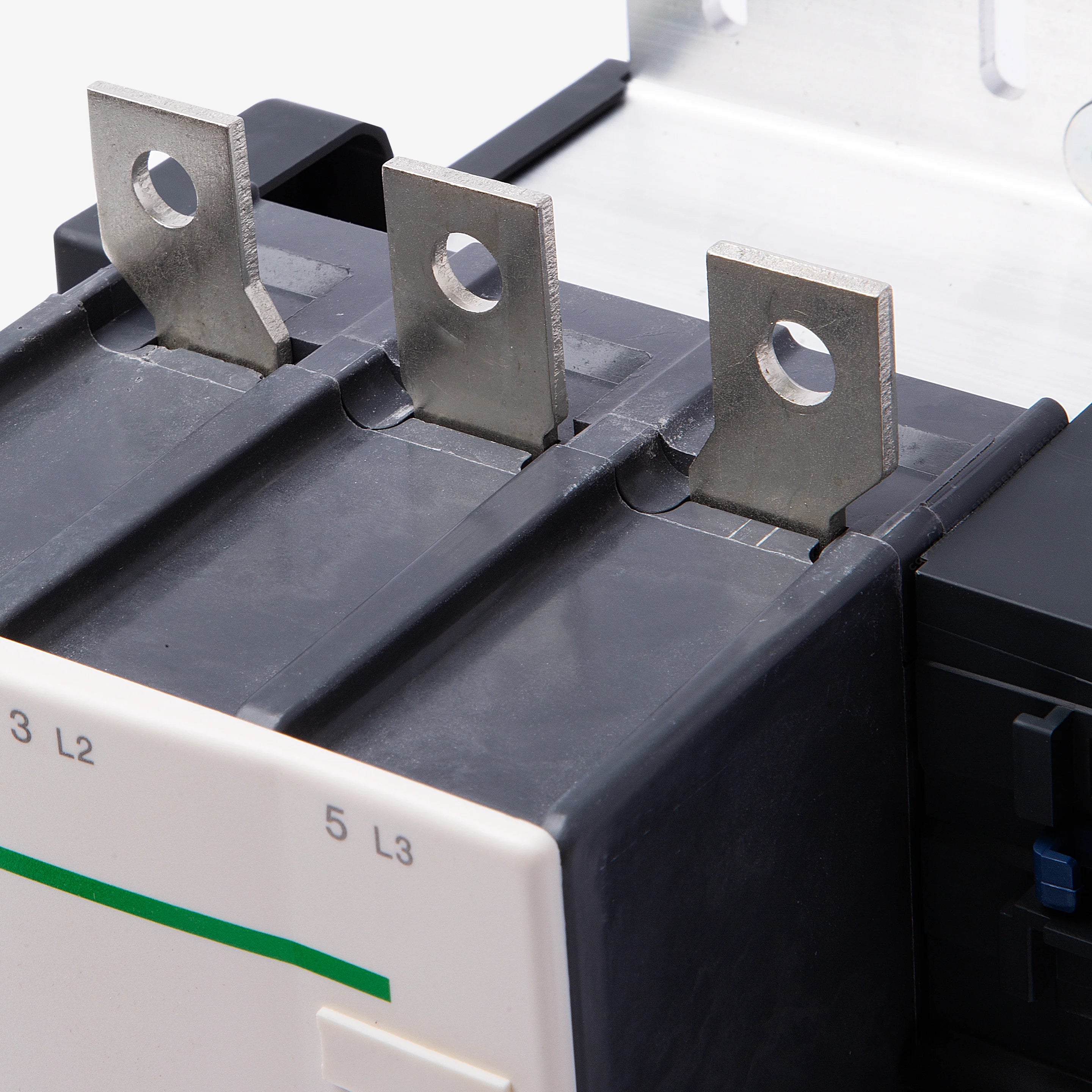

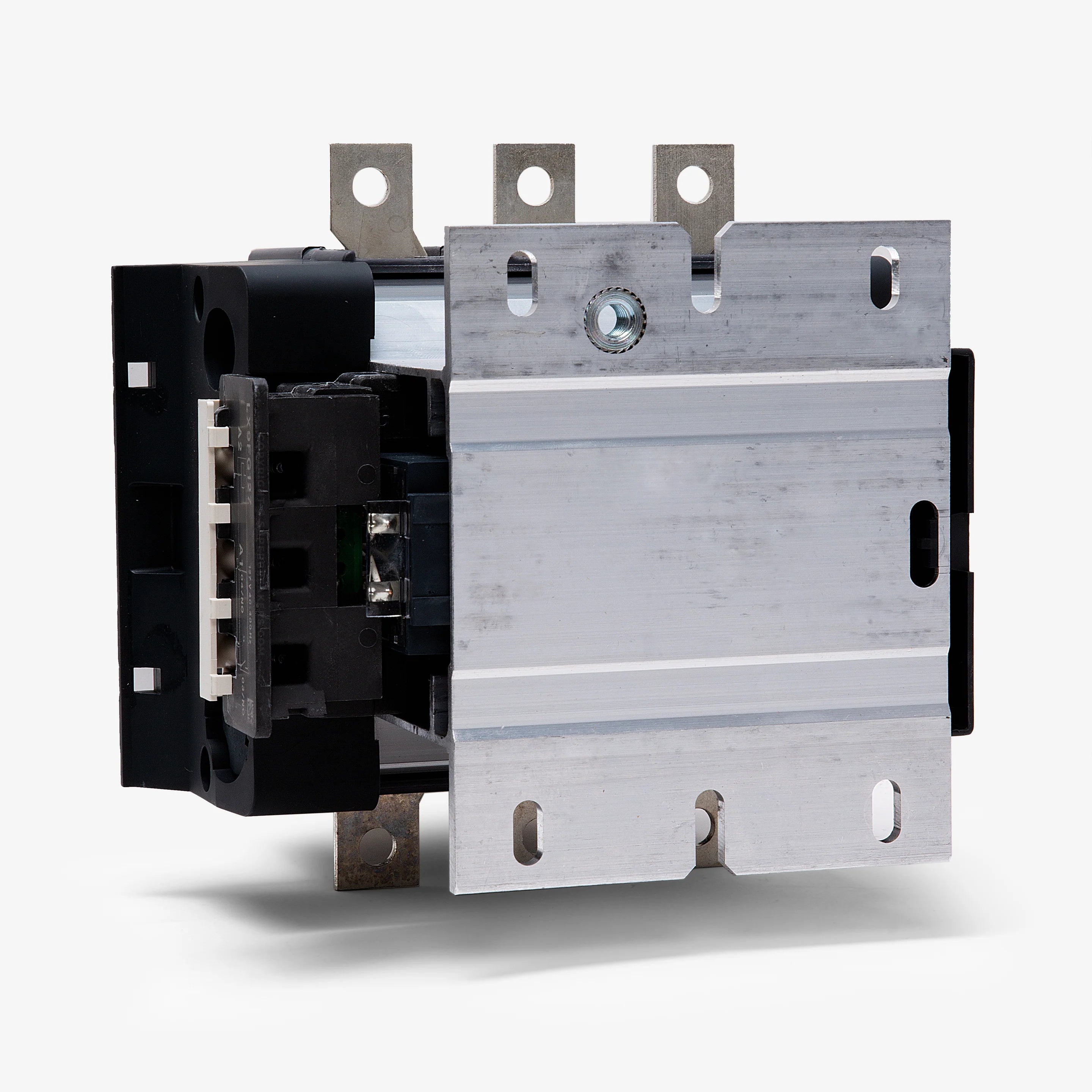

The LC1F185G7 is a TeSys F series contactor built with a 3P, 3 NO power contact arrangement for motor control and resistive load applications. It uses a 120 V AC control coil rated for 40...400 Hz and supports operational voltages up to 690 V AC and 460 V DC. The unit is designed for plate mounting, uses bolt-type power connections for bars or cable lugs, and includes screw clamp control terminals for standard control wiring. It is manufactured to major IEC and EN contactor standards and carries multiple approvals including UL, CSA, BV, DNV, RINA, and UKCA-related certifications listed by Schneider Electric.
Key Features:
- TeSys F platform: Part of Schneider Electric’s TeSys F range for high-current industrial contactor applications.
- 3-pole power switching: Uses a 3P / 3 NO contact configuration for three-phase motor and load control.
- AC-3 current rating: Rated 185 A at up to 440 V AC-3 for motor duty applications.
- 120 V AC coil: Equipped with a 120 V AC control circuit coil operating across 40...400 Hz.
- High motor capacity: Supports motor power up to 90 kW at 380...400 V AC and up to 110 kW at 500 V or 660...690 V AC.
- Strong endurance: Provides mechanical durability rated at 10 million operating cycles.
- Fast operating rate: Designed for operating rates up to 2400 cycles per hour at 55 °C.
- Industrial protection and insulation: Features 8 kV impulse withstand voltage, insulation up to 1000 V IEC, and IP2X front-face protection with shrouds.
The LC1F185G7 delivers the reliability and precision required for heavy-duty motor control and resistive load switching in industrial power systems.
