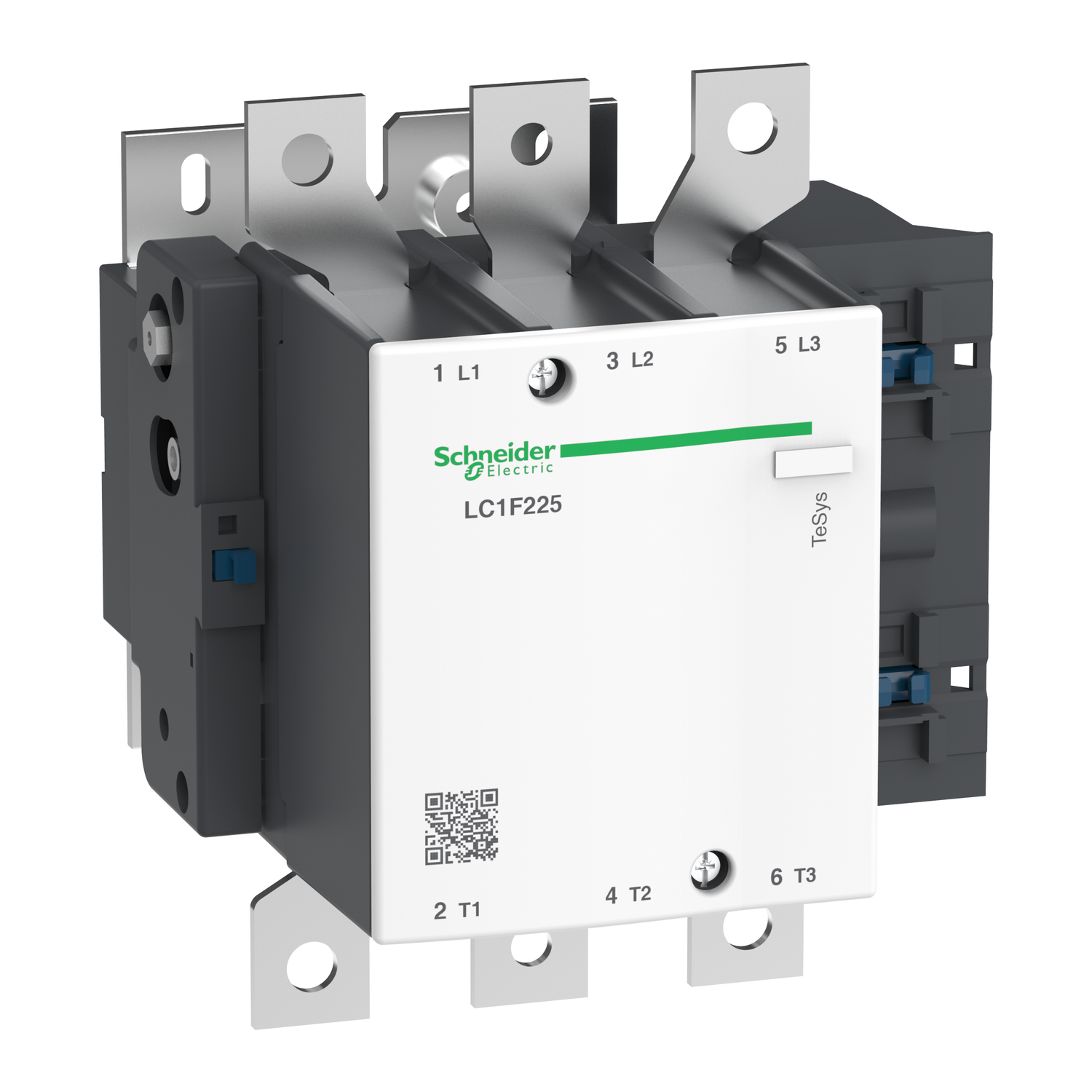

Schneider Electric LC1F225 TeSys F 3P Contactor 225A Motor Control Industrial
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F225
Description
The Schneider Electric LC1F225 is a high-capacity three-pole power contactor designed for reliable switching and control of industrial motors and resistive loads. It supports demanding applications with high operational current ratings and robust electrical performance. Engineered within the TeSys F range, this contactor ensures consistent operation in heavy-duty industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1F225 |
| Subcategory | Contactor |
| Range | TeSys |
| Product Series | TeSys F |
| Poles Description | 3P (3 NO) |
| Rated Operational Voltage | Up to 690 V AC / 460 V DC |
| Rated Operational Current | 315 A (AC-1), 225 A (AC-3) |
| Motor Power | Up to 129 kW at 690 V AC |
| Rated Insulation Voltage (Ui) | 1000 V |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Breaking Capacity | 1800 A |
| Mechanical Durability | 10 million cycles |
| Mounting Type | Plate |
| Operating Temperature Range | -5°C to 55°C |
| Protection Rating | IP20 |
| Dimensions (H x W x D) | 197 x 168.5 x 181 mm |
| Weight | 5.55 kg |
Information About LC1F225
The LC1F225 is part of Schneider Electric’s TeSys F series, engineered for high-power motor control and industrial switching applications. It features a durable 3-pole (3 NO) configuration designed to handle both AC and DC loads across multiple utilization categories including AC-1, AC-3, and AC-4. The device supports a wide range of control circuit voltages through interchangeable coil options, offering flexibility in system integration. Built to comply with international standards, it provides high mechanical durability and reliable performance in harsh operating conditions.
Key Features:
- High Current Capacity: Supports up to 315 A (AC-1) and 225 A (AC-3) for heavy-duty applications
- Three-Pole Design: 3 NO power contacts ensure efficient and reliable switching
- Wide Voltage Compatibility: Operates up to 690 V AC and 460 V DC systems
- Flexible Coil Options: Compatible with multiple control voltages via LX4, LX9, and LXE coils
- High Breaking Capacity: Rated breaking capacity up to 1800 A for safe disconnection
- Durable Construction: Mechanical durability up to 10 million cycles for long service life
- Industrial Certifications: Complies with IEC, UL, CSA, and marine certifications
- Robust Protection: IP20 protection with high impulse withstand voltage of 8 kV
The LC1F225 delivers the reliability and precision required for high-power motor control and industrial load switching applications.
