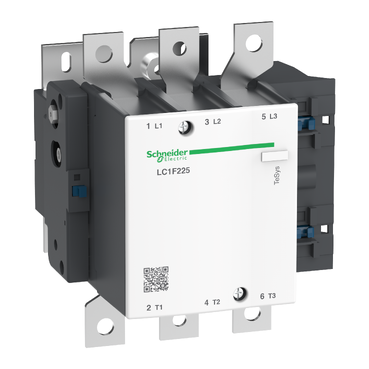

LC1F225L7 | Schneider Electric TeSys F 225A 3-Pole Power Contactor
- Regular price
- $2,347.00
- Sale price
- $2,347.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F225L7
Description
The Schneider Electric LC1F225L7 is a TeSys F series three-pole power contactor designed for high-current motor control and resistive load applications. It supports AC control at 208 V and delivers reliable switching performance for demanding industrial environments. This contactor is engineered for long mechanical life and stable operation in heavy-duty power circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Control |
| Part Number | LC1F225L7 |
| Subcategory | Contactors |
| Product Line | TeSys F |
| Product Type | Power Contactor |
| Number of Poles | 3 |
| Pole Configuration | 3 NO |
| Rated Operational Current (AC-3) | 225 A @ ≤440 VAC |
| Rated Operational Current (AC-1) | 315 A @ ≤440 VAC |
| Rated Control Voltage | 208 VAC |
| Control Circuit Type | AC (40–400 Hz) |
| Rated Insulation Voltage | 1000 V |
| Rated Impulse Withstand Voltage | 8 kV |
| Motor Power (AC-3) | Up to 110 kW @ 380–440 VAC |
| Mounting Type | Plate Mount |
| Connection Type | Screw Clamp / Bolted Power Terminals |
| Mechanical Durability | 10 million cycles |
| Operating Temperature | -5°C to 55°C |
| IP Rating | IP20 (front face with shrouds) |
| Height | 197 mm |
| Width | 168.5 mm |
| Depth | 181 mm |
| Weight | 4.75 kg |
Information About LC1F225L7
The LC1F225L7 is part of Schneider Electric’s TeSys F product range, developed for high-power motor control and switching applications. It is designed for AC-1, AC-3, and AC-4 utilization categories, supporting both motor and resistive loads. The contactor features three normally open main poles and is optimized for plate mounting in control panels. Its robust construction, high thermal current rating, and international certifications make it suitable for global industrial installations.
Key Features:
- TeSys F Series Contactor: Designed for high-power industrial motor control applications.
- High Current Capacity: Rated up to 225 A (AC-3) and 315 A (AC-1).
- Three-Pole Configuration: Supports three-phase motor and load control.
- AC Control Circuit: Operates on 208 V AC control voltage across 40–400 Hz.
- Multiple Utilization Categories: Suitable for AC-1, AC-3, and AC-4 applications.
- Heavy-Duty Mechanical Design: Rated for up to 10 million mechanical operations.
- International Certifications: Approved to IEC, UL, CSA, and marine standards.
The LC1F225L7 delivers the reliability and precision required for high-current motor control and industrial power switching applications.
Description
The Schneider Electric LC1F225L7 is a TeSys F series three-pole power contactor designed for high-current motor control and resistive load applications. It supports AC control at 208 V and delivers reliable switching performance for demanding industrial environments. This contactor is engineered for long mechanical life and stable operation in heavy-duty power circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Control |
| Part Number | LC1F225L7 |
| Subcategory | Contactors |
| Product Line | TeSys F |
| Product Type | Power Contactor |
| Number of Poles | 3 |
| Pole Configuration | 3 NO |
| Rated Operational Current (AC-3) | 225 A @ ≤440 VAC |
| Rated Operational Current (AC-1) | 315 A @ ≤440 VAC |
| Rated Control Voltage | 208 VAC |
| Control Circuit Type | AC (40–400 Hz) |
| Rated Insulation Voltage | 1000 V |
| Rated Impulse Withstand Voltage | 8 kV |
| Motor Power (AC-3) | Up to 110 kW @ 380–440 VAC |
| Mounting Type | Plate Mount |
| Connection Type | Screw Clamp / Bolted Power Terminals |
| Mechanical Durability | 10 million cycles |
| Operating Temperature | -5°C to 55°C |
| IP Rating | IP20 (front face with shrouds) |
| Height | 197 mm |
| Width | 168.5 mm |
| Depth | 181 mm |
| Weight | 4.75 kg |
Information About LC1F225L7
The LC1F225L7 is part of Schneider Electric’s TeSys F product range, developed for high-power motor control and switching applications. It is designed for AC-1, AC-3, and AC-4 utilization categories, supporting both motor and resistive loads. The contactor features three normally open main poles and is optimized for plate mounting in control panels. Its robust construction, high thermal current rating, and international certifications make it suitable for global industrial installations.
Key Features:
- TeSys F Series Contactor: Designed for high-power industrial motor control applications.
- High Current Capacity: Rated up to 225 A (AC-3) and 315 A (AC-1).
- Three-Pole Configuration: Supports three-phase motor and load control.
- AC Control Circuit: Operates on 208 V AC control voltage across 40–400 Hz.
- Multiple Utilization Categories: Suitable for AC-1, AC-3, and AC-4 applications.
- Heavy-Duty Mechanical Design: Rated for up to 10 million mechanical operations.
- International Certifications: Approved to IEC, UL, CSA, and marine standards.
The LC1F225L7 delivers the reliability and precision required for high-current motor control and industrial power switching applications.
