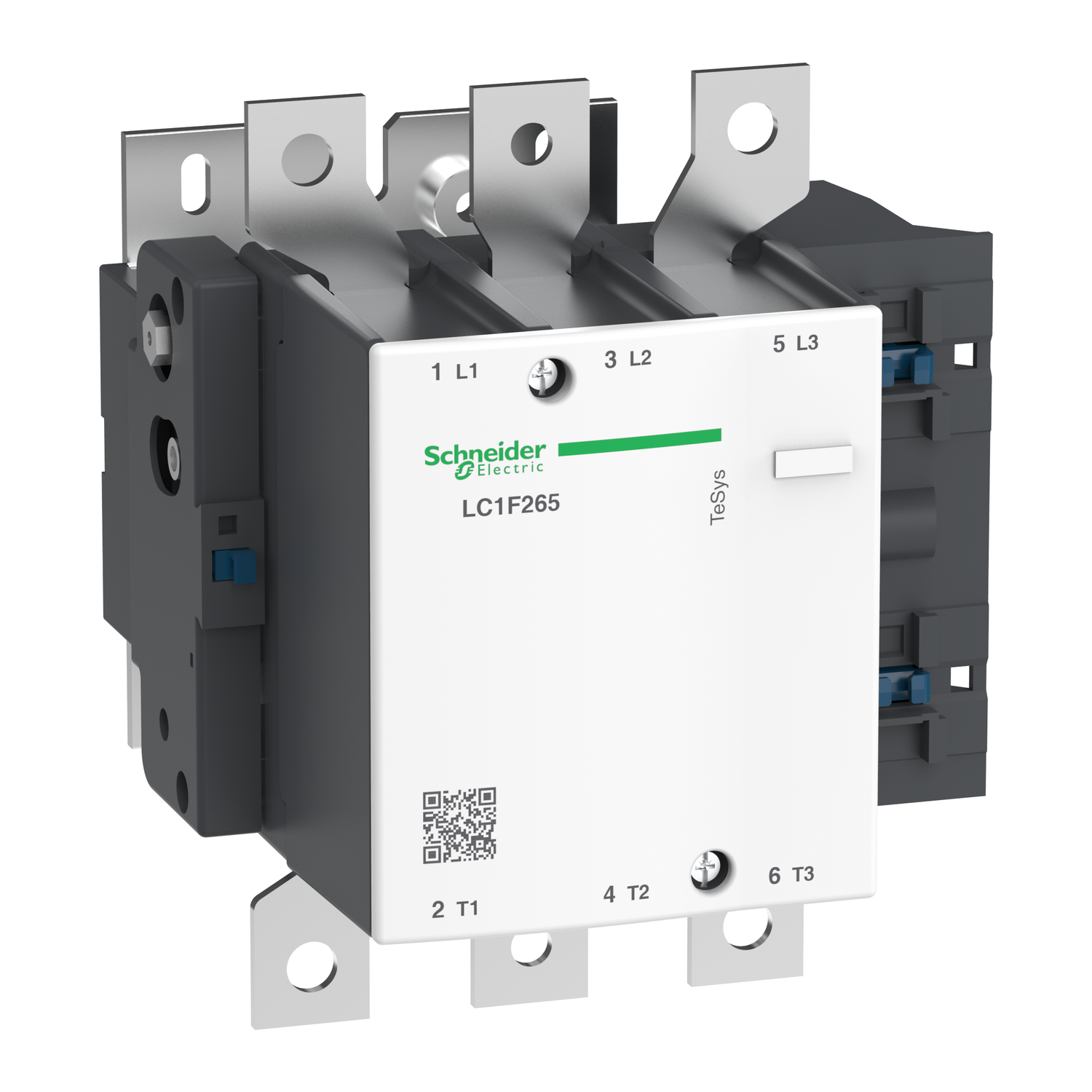

Schneider Electric LC1F265M7 TeSys F 3P Contactor 265A 220V AC for Motor Control
- Regular price
- $689.00
- Sale price
- $689.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F265M7
Description
The Schneider Electric LC1F265M7 is a TeSys F three-pole contactor designed for controlling high-power motors and switching industrial loads. It is rated for AC-3 applications up to 265 A at 440 V and supports motor power up to 132 kW at 380...400 V AC. With a 220 V AC control coil and robust construction, it is suited for demanding motor control and power distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1F265M7 |
| Subcategory | Contactor |
| Range | TeSys |
| Product Series | TeSys F |
| Poles Description | 3P |
| Power Pole Contact Composition | 3 NO |
| Rated Operational Voltage | <= 690 V AC; <= 460 V DC |
| Control Circuit Voltage | 220 V AC 40...400 Hz |
| Rated Operational Current | 350 A AC-1; 265 A AC-3 at <= 440 V |
| Motor Power | 132 kW at 380...400 V AC (AC-3) |
| Rated Insulation Voltage | 1000 V |
| Impulse Withstand Voltage | 8 kV |
| Breaking Capacity | 2120 A |
| Mechanical Durability | 10 million cycles |
| Maximum Operating Rate | 2400 cycles/hour |
| Mounting Type | Plate |
| Protection Rating | IP20 front face with shrouds |
| Operating Temperature Range | -5°C to 55°C |
| Dimensions (H x W x D) | 203 x 201.5 x 213 mm |
| Weight | 7.44 kg |
Information About LC1F265M7
The LC1F265M7 is part of Schneider Electric’s TeSys F range, engineered for high-current switching in industrial automation and motor control applications. It features a 3P (3 NO) contact configuration and supports multiple utilization categories including AC-1, AC-3, and AC-4 for versatility across different load types. The contactor operates with a 220 V AC 40...400 Hz control circuit and is designed for plate mounting using bolted power connections and screw clamp control terminals. It is built to meet international standards and offers high durability, making it suitable for continuous operation in demanding industrial environments.
Key Features:
- High current capacity: Rated for 265 A (AC-3) and 350 A (AC-1) for heavy-duty motor applications
- Three-pole configuration: 3 NO contacts designed for reliable three-phase switching
- 220 V AC coil: Operates across 40...400 Hz for flexible control system integration
- Wide voltage range: Supports up to 690 V AC and 460 V DC operation
- High motor power support: Handles motors up to 132 kW at 400 V AC
- Strong breaking capacity: Rated up to 2120 A for safe load interruption
- High durability: Mechanical life up to 10 million cycles for extended service life
- Flexible installation: Plate mounting with bolt terminals for cables or busbars
The LC1F265M7 delivers the reliability and precision required for high-power motor control and industrial load switching applications.
