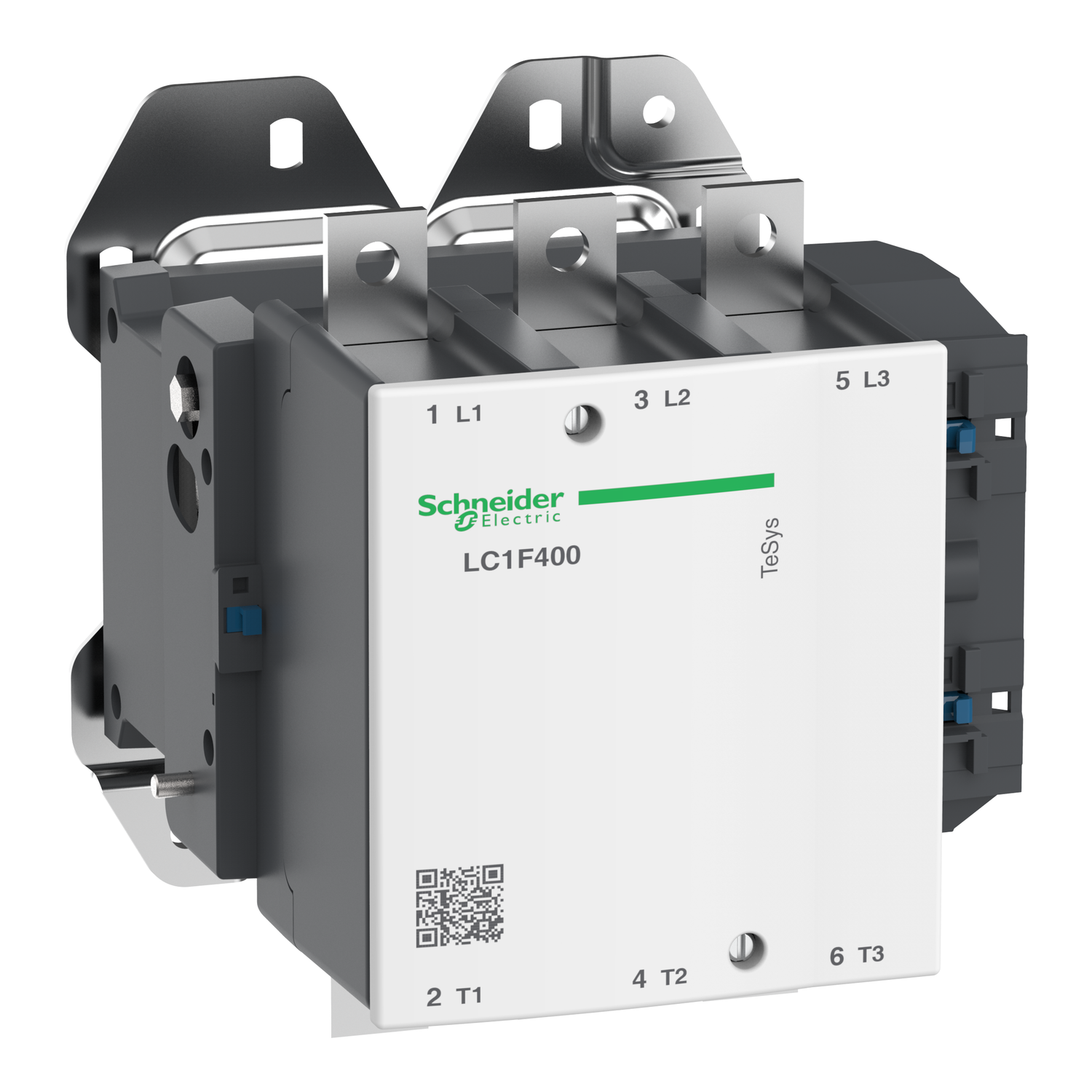

Schneider Electric LC1F400M7 TeSys F 3P 400A Contactor 220V AC Coil for Motor Control
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F400M7
Description
The Schneider Electric LC1F400M7 is a TeSys F power contactor designed for switching high-current motors and resistive loads in industrial control systems. It is a 3-pole unit rated for AC-3 applications up to 400 A at 440 V, with motor capability up to 200 kW at 380...400 V AC. Its 220 V AC coil and heavy-duty construction make it suitable for demanding motor starter and power switching installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1F400M7 |
| Subcategory | Contactor |
| Range | TeSys |
| Product Series | TeSys F |
| Product Type | Contactor |
| Poles Description | 3P |
| Power Pole Contact Composition | 3 NO |
| Rated Operational Voltage | <= 1000 V AC 50/60 Hz; <= 460 V DC |
| Control Circuit Voltage | 220 V AC, 40...400 Hz |
| Rated Operational Current | 500 A AC-1; 400 A AC-3 at <= 440 V |
| Motor Power | 200 kW at 380...400 V AC 50/60 Hz (AC-3) |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 1000 V IEC 60947-4-1; 1500 V VDE 0110 group C |
| Rated Breaking Capacity | 3200 A conforming to IEC 60947-4-1 |
| Mechanical Durability | 10 Mcycles |
| Maximum Operating Rate | 2400 cyc/h at 55 °C |
| Mounting Support | Plate |
| IP Degree of Protection | IP20 front face with shrouds |
| Dimensions | 206 mm H x 213 mm W x 219 mm D |
| Weight | 9.1 kg |
Information About LC1F400M7
The LC1F400M7 is part of Schneider Electric’s TeSys F range and is built as a 3P contactor with 3 NO main power contacts for motor control and resistive load switching. It supports operational voltages up to 1000 V AC and 460 V DC, and it uses a 220 V AC 40...400 Hz control coil with low sealed consumption. The device is designed for plate mounting and uses bolted power terminals for busbars or cable lugs, along with screw clamp terminals for the control circuit. Schneider Electric specifies this model for high operating rates up to 2400 cycles per hour, with international compliance to IEC, EN, JIS, UL, CSA, and marine-related certifications.
Key Features:
- TeSys F construction: Built within Schneider Electric’s TeSys F contactor platform for industrial motor control and power switching.
- High AC-3 current rating: Rated for 400 A at up to 440 V AC-3 duty in motor applications.
- 3-pole main contacts: Uses a 3P, 3 NO contact arrangement for three-phase load switching.
- 220 V AC coil: Equipped with a 220 V AC control coil operating across 40...400 Hz.
- Motor power capacity: Supports motor ratings up to 200 kW at 380...400 V AC-3 and higher ratings at other voltages.
- High switching endurance: Designed for operating rates up to 2400 cycles per hour with 10 million mechanical cycles.
- Serviceable installation format: Uses a drawer-mounted coil and supports add-on accessory blocks for configuration flexibility.
- Industrial protection level: Provides IP20 front-face protection with shrouds and 8 kV impulse withstand voltage.
The LC1F400M7 delivers the reliability and precision required for heavy-duty motor control and high-current industrial load switching.
