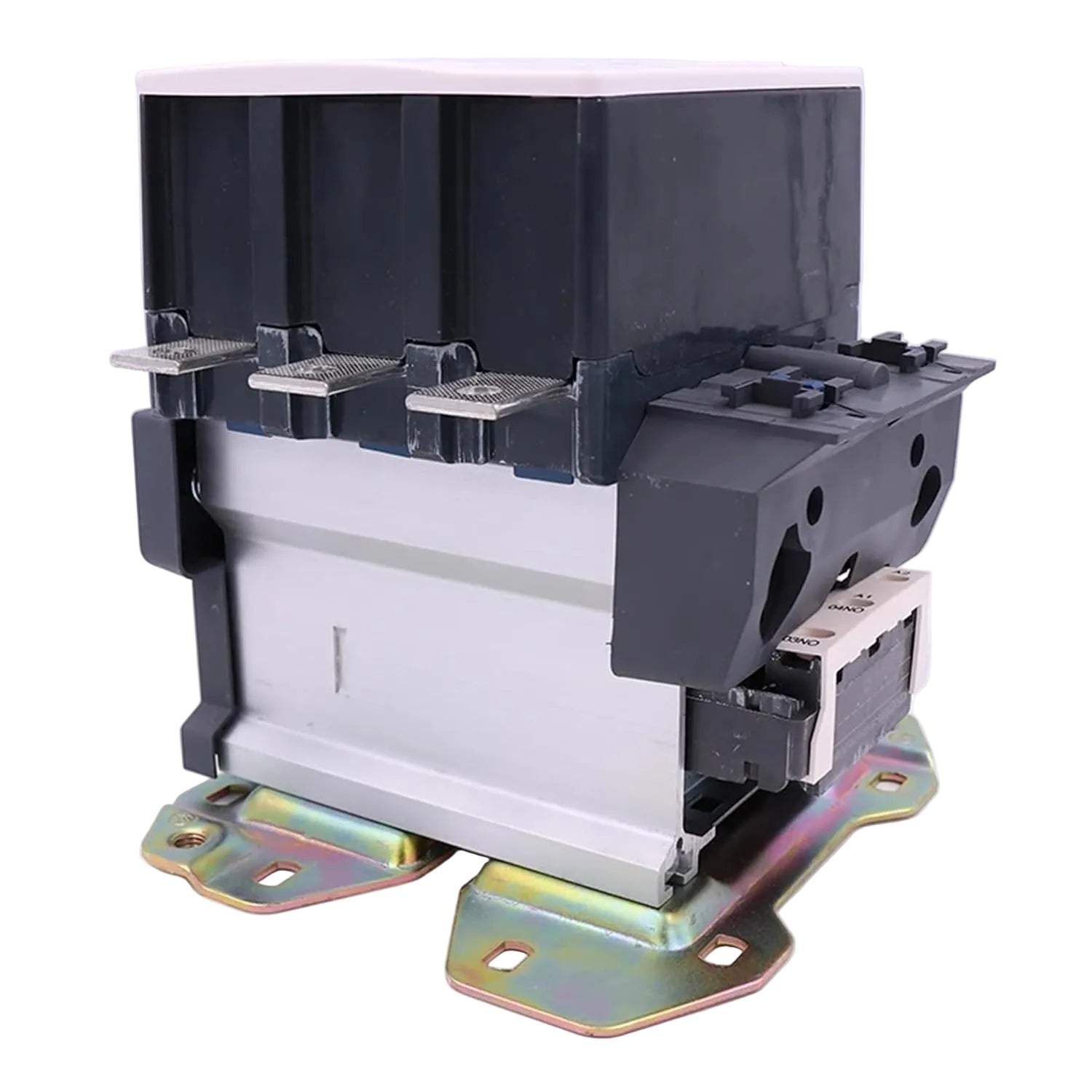

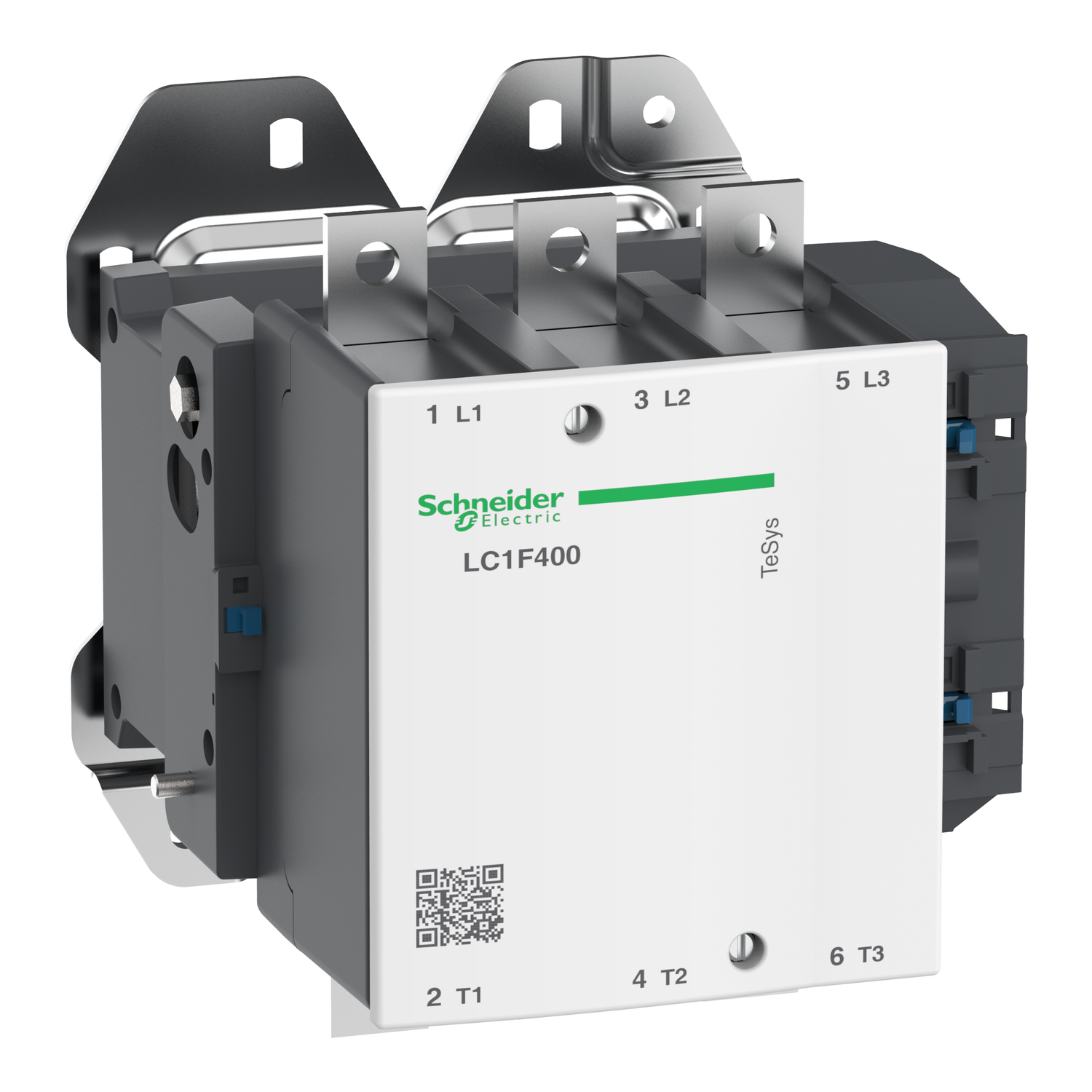

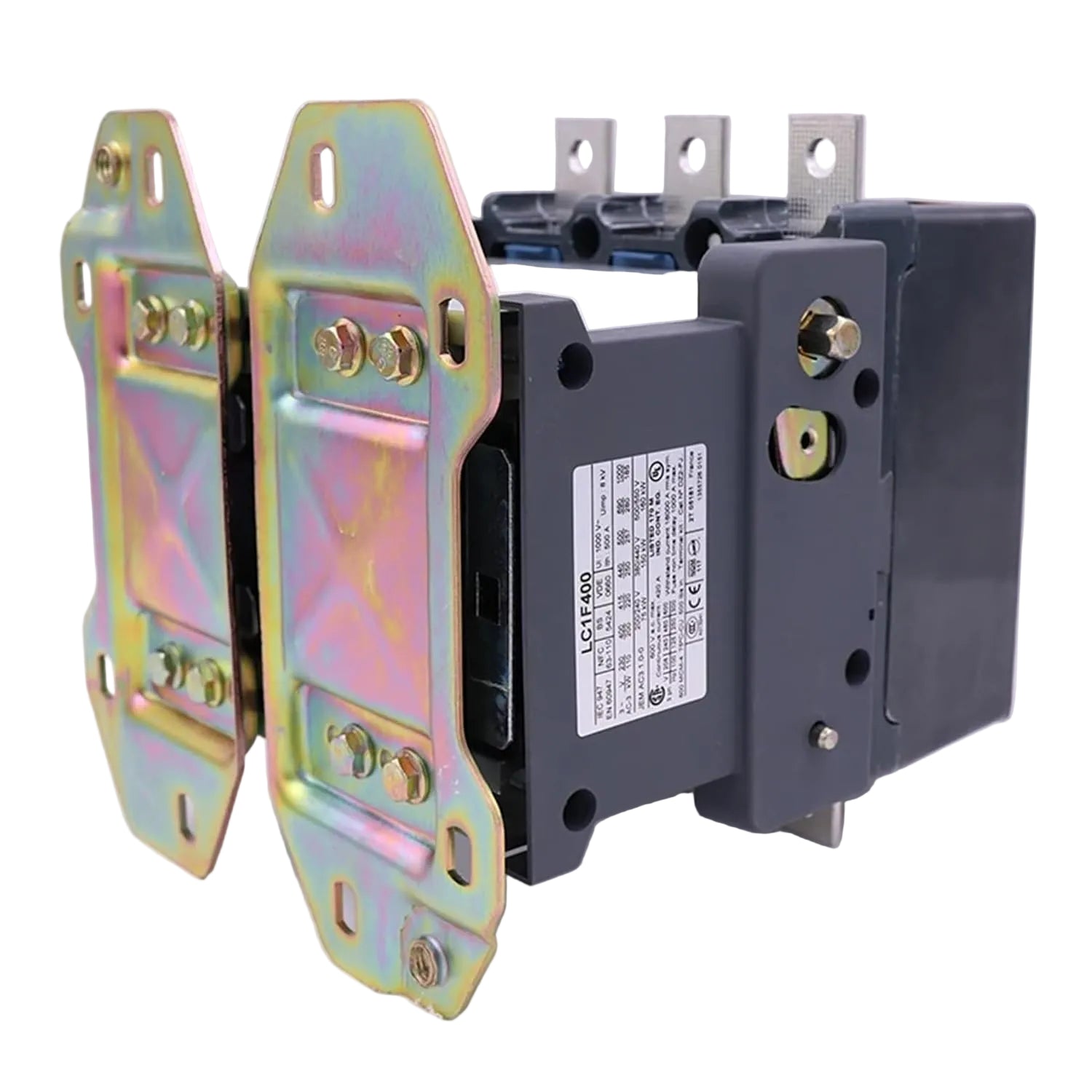

Schneider Electric LC1F400U7 3-Pole 400A TeSys F Contactor 240VAC Coil High Power Motor Control
- Regular price
- $1,198.00
- Sale price
- $1,198.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F400U7
Description
The Schneider Electric LC1F400U7 is a TeSys F contactor designed for high-current motor control applications up to 400A. It features a 3-pole configuration with a 240VAC coil, enabling reliable switching of large industrial loads. This contactor is built for consistent performance in demanding power control environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Motor Control |
| Part Number | LC1F400U7 |
| Subcategory | Contactor |
| Series | TeSys F |
| Poles | 3 |
| Phase | 3-Phase |
| Rated Operational Current (AC-3) | 400 A |
| Rated Operational Current (AC-1) | 500 A |
| Rated Voltage | Up to 1000 VAC / 460 VDC |
| Coil Voltage | 240 VAC |
| Utilization Category | AC-1, AC-3, AC-4 |
| Contact Configuration | 3 NO |
| Rated Insulation Voltage (Ui) | 1000 V |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Breaking Capacity | 3200 A |
| Short-Time Withstand Current (Icw) | Up to 3600 A |
| Mechanical Durability | 10 million cycles |
| Mounting Type | Plate Mount |
| Protection Rating | IP20 |
| Operating Temperature | -5°C to 55°C |
| Standards | IEC 60947, UL, CSA |
| Weight | 9.1 kg |
Information About LC1F400U7
The LC1F400U7 is part of Schneider Electric’s TeSys F series, engineered for heavy-duty motor control and resistive load switching. It is constructed with a robust frame and designed for plate mounting, ensuring compatibility with industrial control panels and automation systems. The contactor supports AC-1, AC-3, and AC-4 utilization categories, making it suitable for a wide range of applications including direct-on-line motor starting. With compliance to international standards and integration of advanced electromagnetic switching technology, it provides stable and efficient operation under high electrical loads.
Key Features:
- High Current Capacity: Supports up to 400A AC-3 and 500A AC-1 for demanding industrial applications
3-Pole Configuration: Enables reliable switching for three-phase motor systems - 240VAC Coil Voltage: Provides compatibility with standard industrial control circuits
Wide Voltage Range: Operates up to 1000VAC and 460VDC for versatile use - High Motor Power Capability: Supports motors up to 280 kW at 690VAC and 250 kW at 440VAC
Durable Mechanical Life: Rated for up to 10 million cycles for extended service life - High Breaking Capacity: Designed with strong short-circuit withstand capability for protection
- Plate Mount Design: Ensures secure installation in industrial enclosures
The LC1F400U7 delivers the reliability and precision required for high-power motor control and industrial switching operations.
