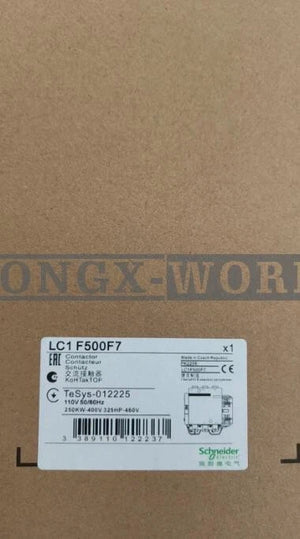

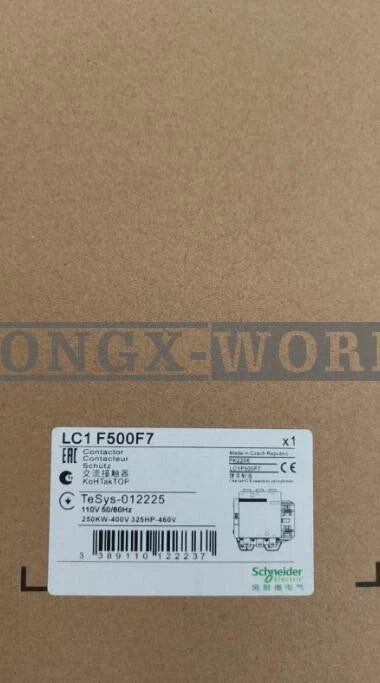

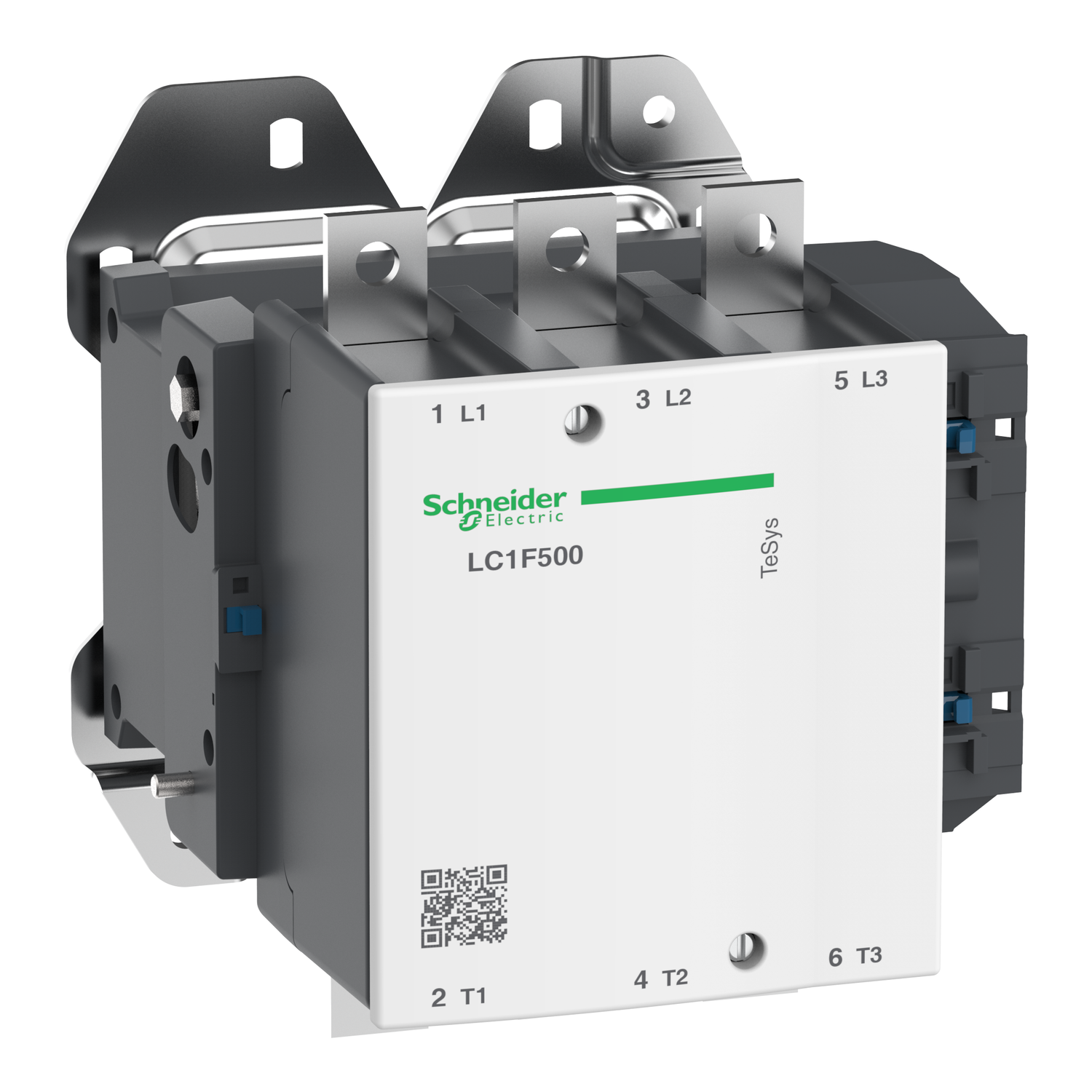

Schneider Electric LC1F500F7 TeSys F Contactor 500A 3 Pole 110V AC Coil
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F500F7
Description
The Schneider Electric LC1F500F7 is a TeSys F series contactor designed for high-capacity motor control and power switching in industrial systems. Rated for 500 A at AC-3 applications, it includes a 110 V AC coil and supports operation in demanding environments with high switching frequency. This contactor is used in motor starters, power distribution, and heavy-duty automation equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | LC1F500F7 |
| Subcategory | Contactor |
| Series | TeSys F |
| Poles | 3 Pole (3 NO) |
| Utilization Category | AC-1, AC-3, AC-4 |
| Rated Operational Voltage | Up to 1000 VAC |
| Rated Current (AC-3) | 500 A |
| Thermal Current (Ith) | 700 A |
| Control Voltage | 110 V AC (40–400 Hz) |
| Motor Power Rating | Up to 250 kW @ 400 V |
| Mechanical Durability | 10 million cycles |
| Operating Frequency | Up to 2400 cycles/hour |
| Mounting Type | Plate mount |
| Protection Rating | IP20 (front face) |
| Weight | 25.02 lbs |
Information About LC1F500F7
The LC1F500F7 is part of Schneider Electric’s TeSys F range, engineered for high-performance switching in large industrial motor applications. It features a three-pole (3 NO) configuration and is equipped with a 110 V AC control coil designed for low power consumption and wide frequency compatibility (40–400 Hz). The contactor is built with robust power terminals suitable for bar or lug connections, ensuring secure installation in high-current systems. Designed for durability, it supports high operating rates and integrates with a wide range of auxiliary accessories for flexible system configuration.
Key Features:
- High Current Rating: Supports up to 500 A (AC-3) for demanding motor control applications.
- Integrated AC Coil: Includes 110 V AC coil with low holding consumption for efficient operation.
- Three-Pole Configuration: 3 NO contacts for reliable three-phase power switching.
- TeSys F Platform: Designed for high durability and frequent switching cycles up to 2400 operations per hour.
- Wide Voltage Compatibility: Operates up to 1000 VAC and supports multiple utilization categories (AC-1, AC-3, AC-4).
- Robust Terminal Design: Bolt terminals allow connection of bars or cable lugs for secure installation.
- High Mechanical Endurance: Rated for up to 10 million mechanical cycles for extended service life.
The LC1F500F7 delivers the reliability and precision required for high-power motor control and industrial switching applications.
