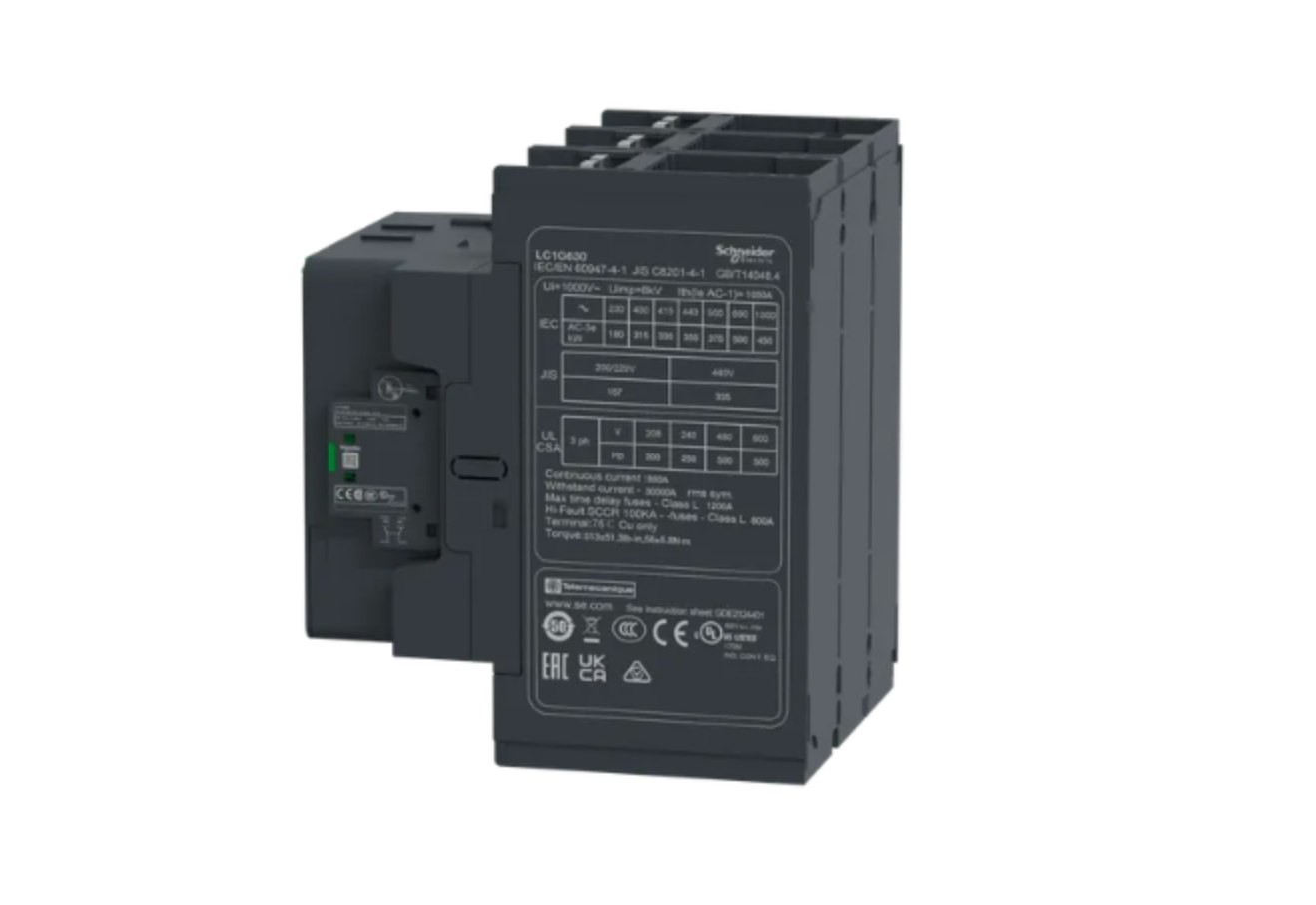

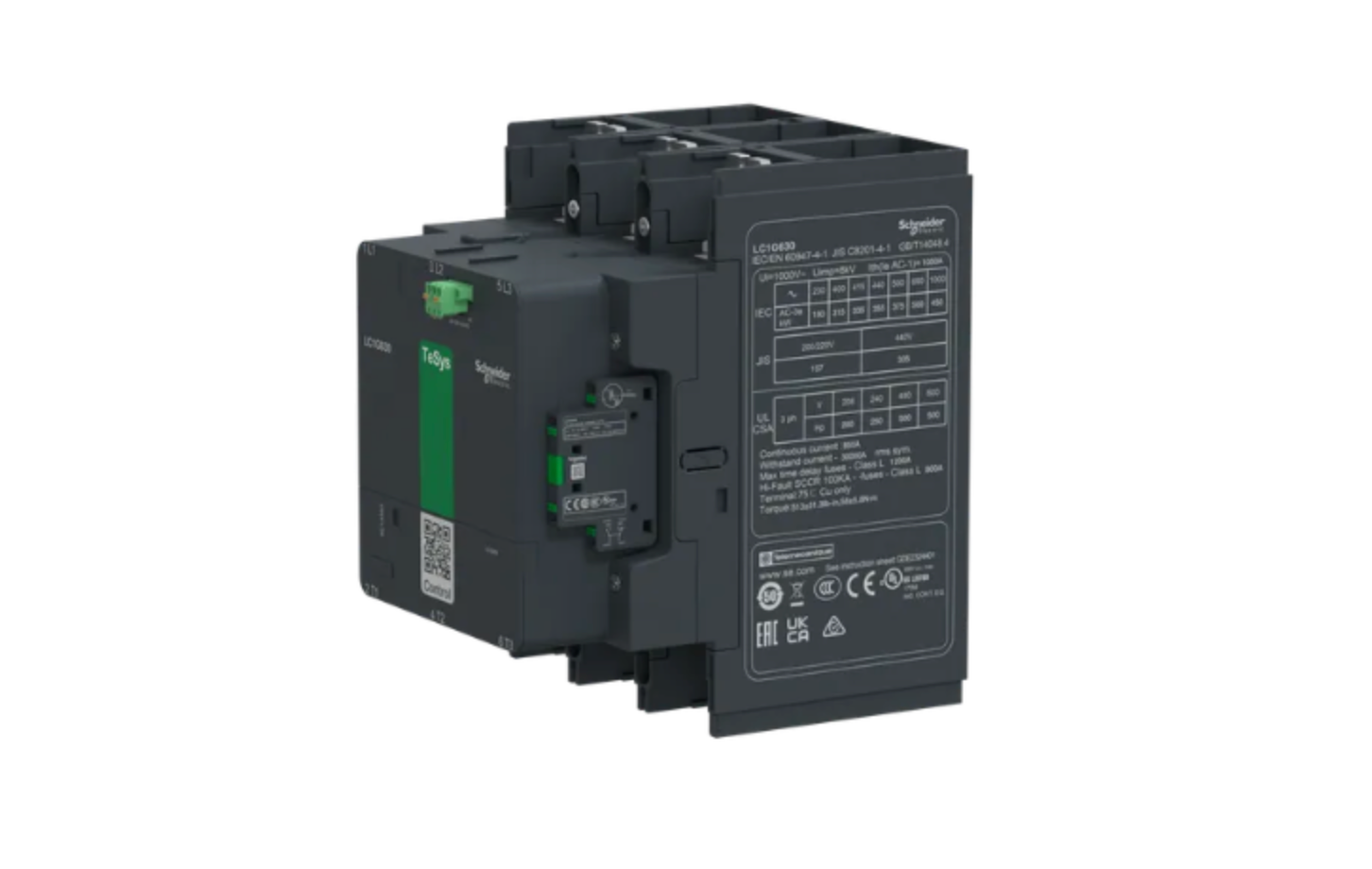

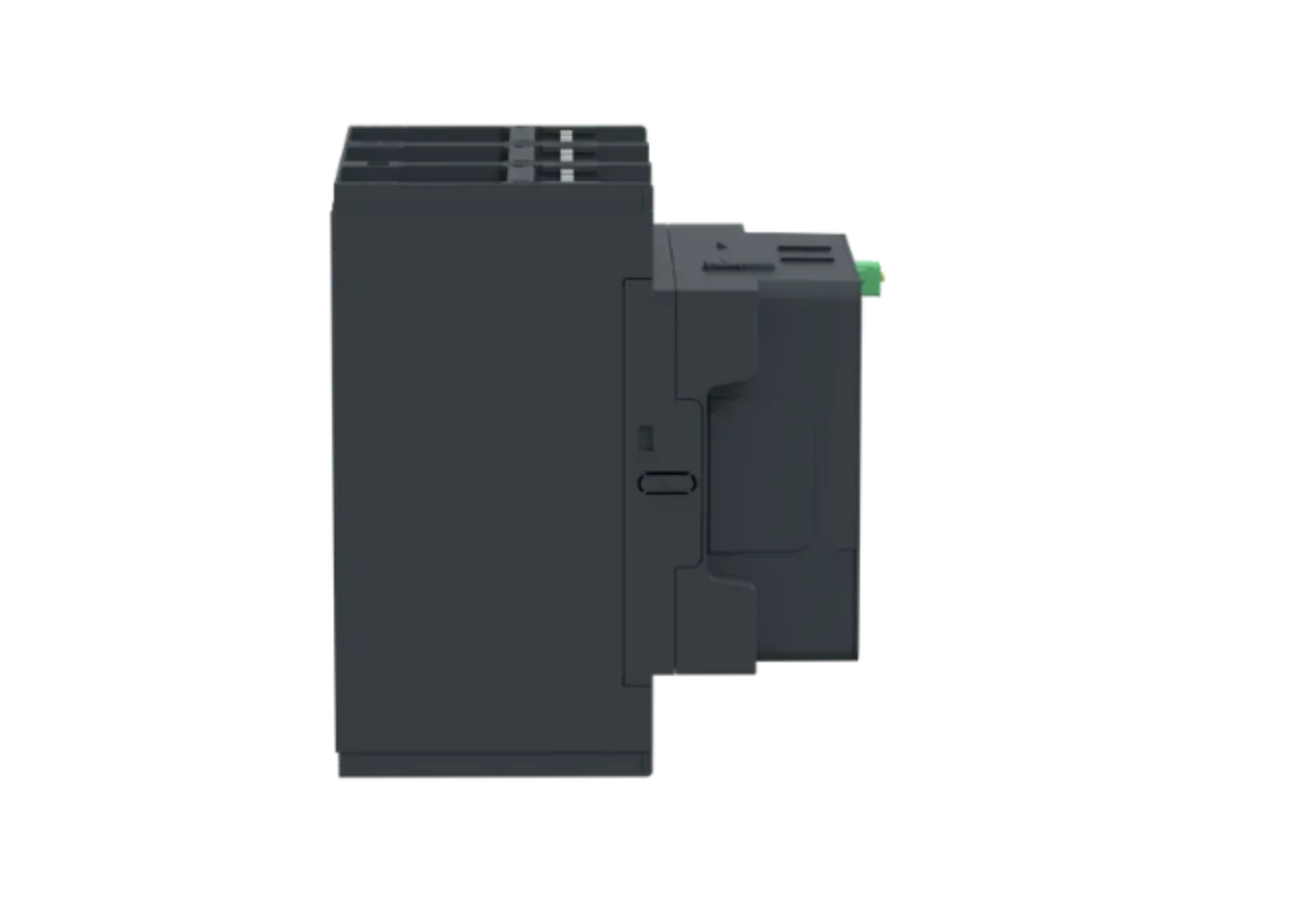

Schneider Electric LC1G800KUEN TeSys Giga 3P 800A High Power Contactor 100-250V AC/DC Coil
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1G800KUEN
Description
The Schneider Electric LC1G800KUEN is a TeSys Giga high-power contactor built for switching large motors and power circuits in demanding industrial applications. It is a 3-pole contactor rated for AC-3 duty up to 800 A at 440 V and supports motor loads up to 450 kW at 400 V. Its wide-band 100–250 V AC/DC electronic coil and high-current design make it suitable for heavy-duty motor control and power switching systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1G800KUEN |
| Subcategory | Contactor |
| Range | TeSys |
| Product Series | TeSys Giga |
| Product Type | High power contactor |
| Poles Description | 3P |
| Pole Contact Composition | 3 NO |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Rated Operational Voltage | Up to 1000 V AC 50/60 Hz; up to 460 V DC |
| Rated Operational Current | 1050 A AC-1; 800 A AC-3 at <= 440 V |
| Control Circuit Voltage | 100...250 V AC 50/60 Hz; 100...250 V DC |
| Motor Power | Up to 450 kW at 400 V AC-3 |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 1000 V |
| Rated Breaking Capacity | 5870 A at 440 V |
| Mechanical Durability | 5 Mcycles |
| Maximum Operating Rate | 600 cyc/h AC-3 |
| Mounting Support | Plate |
| IP Degree of Protection | IP2X front face with shrouds |
| Ambient Operating Temperature | -25...60 °C |
| Dimensions | 284 mm H x 211 mm W x 266 mm D |
| Weight | 14.2 kg |
Information About LC1G800KUEN
The LC1G800KUEN is part of Schneider Electric’s TeSys Giga range, a series of high-power contactors designed for motor control and power switching in large industrial assemblies. It has a 3P (3 NO) main pole arrangement, an embedded 1 NO + 1 NC auxiliary contact block, and front-access control connections that support faster service and replacement in panel installations. The unit uses a 100–250 V AC/DC low-consumption electronic coil with built-in bidirectional peak limiting, and it includes Local Contact Wear Diagnosis for continuous contact-health indication. It is intended for high-load applications where durability, serviceability, and stable operation at temperatures up to 60 °C are required.
Key Features:
- High AC-3 current rating: Rated for 800 A at up to 440 V AC-3 for heavy-duty motor switching.
- Wide-band electronic coil: Uses a 100–250 V AC/DC coil for flexible control voltage compatibility.
- TeSys Giga platform: Built within Schneider Electric’s high-power TeSys Giga contactor range for large industrial systems.
- Integrated auxiliary contacts: Includes 1 NO + 1 NC auxiliary contacts as a built-in standard feature.
- Contact wear monitoring: Local Contact Wear Diagnosis provides health and alarm indication for contact condition.
- Replaceable switching module: Main contacts can be replaced to help extend service life and simplify maintenance.
- High mechanical endurance: Rated for 5 million mechanical operating cycles in demanding duty.
- Broad application coverage: Supports AC and DC utilization categories including AC-1, AC-3, AC-3e, AC-4, and DC-1/DC-3/DC-5.
The LC1G800KUEN delivers the reliability and precision required for high-power motor control and industrial power switching systems.
