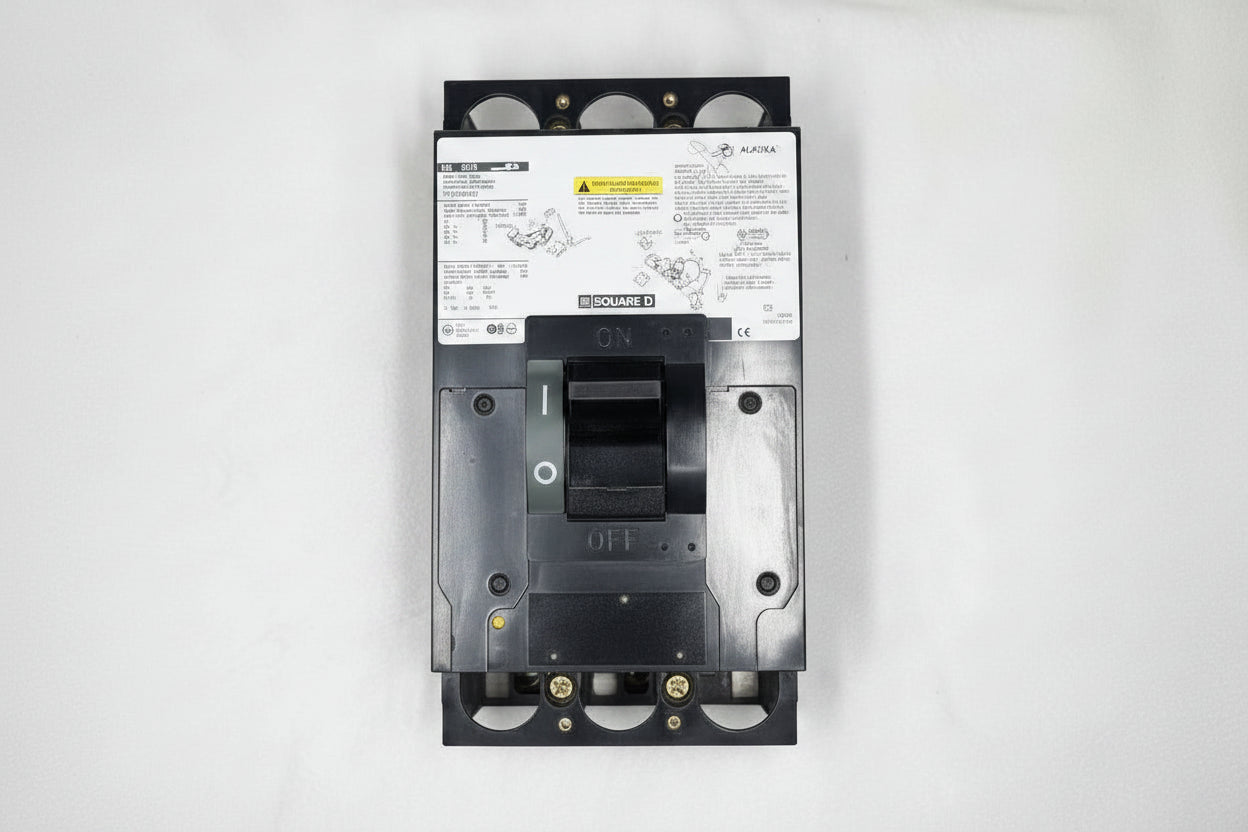

Schneider Electric LHL36000M 400A 3-Pole Molded Case Circuit Breaker, 600VAC
- Regular price
- $4,299.00
- Sale price
- $4,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LHL36000M
Description
The Schneider Electric LHL36000M is a three-pole molded case circuit breaker rated for 400A at 600VAC and 250VDC. It uses thermal-magnetic overcurrent protection with instantaneous trip functionality for main and feeder circuit applications. The unit-mount, feed-thru configuration supports industrial and commercial power distribution systems requiring high interrupting capacity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | LHL36000M |
| Subcategory | Molded Case |
| Series/Frame | LHL |
| Current Rating | 400A |
| Voltage Rating | 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| Interrupting Rating | 35kAIC at 480V |
| Protection Type | Thermal-Magnetic |
| Trip Function | Instantaneous Trip |
| Mounting Type | Unit Mount |
| Connection Type | Feed-Thru |
| Terminal Connection | Lug, line and load side |
| Frame Size | H |
| Wire Size | 1 AWG to 600 kcmil for 1 aluminum/copper cable; 1 AWG to 250 kcmil for 2 aluminum/copper cables |
| Standards/Certifications | UL Listed, CSA, IEC |
| Compliance | RoHS, HACR |
| Dimensions | 11 in x 6 in x 5.84 in (279.4 mm x 152.4 mm x 148.34 mm), H x W x D |
| Weight | 15.9 lb |
Information About LHL36000M
The LHL36000M is part of the Schneider Electric LHL series molded case circuit breaker family and uses a frame size H construction for high-current circuit protection. It is designed for three-phase applications and accommodates line and load-side lug connections through its feed-thru configuration. The breaker is suitable for main or feeder circuit installations where 400A overcurrent protection is required at systems up to 600VAC. Its thermal-magnetic protection and instantaneous trip function provide circuit interruption during applicable overcurrent conditions.
Key Features:
- 400A Rating: Provides continuous current capacity of 400A for high-current distribution circuits.
- 600VAC Operation: Rated for systems up to 600VAC, with an additional 250VDC rating.
- Three-Pole Design: Provides three-pole switching and protection for three-phase electrical circuits.
- Thermal-Magnetic Protection: Combines thermal and magnetic protection for overcurrent circuit interruption.
- 35kAIC Rating: Provides an interrupting rating of 35kAIC at 480V.
- Feed-Thru Connection: Supports line and load-side lug connections for flexible circuit installation.
- Unit Mounting: Uses a unit-mount configuration for installation within compatible electrical equipment.
- Industry Certifications: Listed to UL, CSA, and IEC requirements and identified as RoHS and HACR compliant.
The LHL36000M delivers the reliability and precision required for industrial and commercial overcurrent protection in high-current power distribution systems.
