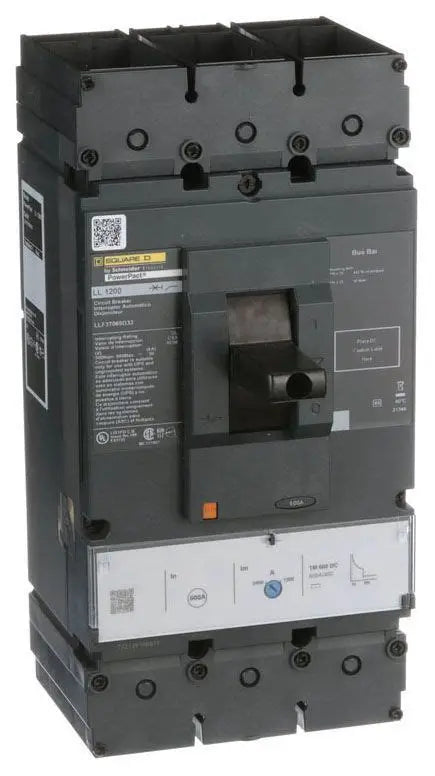

Schneider Electric LLF37060D33 PowerPacT L 600A Circuit Breaker
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LLF37060D33
Description
The Schneider Electric LLF37060D33 PowerPacT L circuit breaker is designed to protect electrical distribution systems against overloads and short circuits. It features a 600 A current rating, three-pole configuration, and adjustable magnetic trip protection for DC applications. Its busbar-mounted design supports integration into compatible power distribution equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Electrical Equipment |
| Part Number | LLF37060D33 |
| Subcategory | Molded Case Circuit Breaker |
| Product Range | PowerPacT L |
| Frame Type | L-Frame |
| Rated Current | 600 A |
| Rated DC Voltage | 500 V DC |
| Number of Poles | 3 |
| Protection Type | Thermal-Magnetic |
| Magnetic Trip Range | 1,500–3,000 A |
| DC Interrupting Rating | 50 kA at 500 V DC |
| AC Interrupting Rating | 100 kA at 480 V AC; 125 kA at 240 V AC |
| Mounting Type | Unit Mount, Busbar Connection |
| Certification | UL 489 |
| Dimensions (H × W × D) | 340 × 140 × 110 mm |
| Weight | 6.2 kg |
Information About LLF37060D33
The LLF37060D33 is a Square D PowerPacT L-frame circuit breaker manufactured by Schneider Electric. It is rated for 600 A and supports operation at up to 500 V DC. The breaker uses thermal-magnetic protection with an adjustable magnetic trip range of 1,500–3,000 A. Its interrupting capacity is 50 kA at 500 V DC, with additional AC interrupting ratings depending on operating voltage.
Key Features:
-
High Current Rating: Supports rated current up to 600 A.
-
Three-Pole Configuration: Designed for three-pole electrical distribution applications.
-
DC Voltage Rating: Rated for operation up to 500 V DC.
-
Adjustable Magnetic Trip: Magnetic trip setting ranges from 1,500 A to 3,000 A.
-
Short-Circuit Protection: Provides a 50 kA interrupting rating at 500 V DC.
-
Thermal-Magnetic Protection: Helps protect electrical systems against overloads and short circuits.
-
Busbar Mounting: Designed for compatible busbar-connected installations.
-
Industrial Power Distribution: Suitable for use in compatible industrial electrical distribution systems.
The LLF37060D33 provides high-current circuit protection for compatible electrical distribution installations
