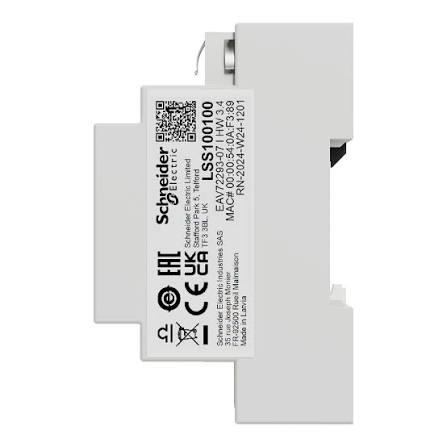

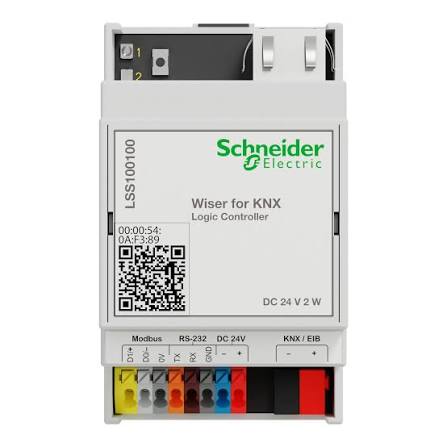

Schneider Electric LSS100100 Wiser for KNX Logic Controller
- Regular price
- $2,699.00
- Sale price
- $2,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LSS100100
Description
The Schneider Electric LSS100100 is a Wiser for KNX logic controller designed to integrate and automate building management functions through KNX, BACnet, Modbus, and IP communication protocols. It combines logic control, gateway functionality, and web-based visualization in a compact device for residential and commercial building automation. With Ethernet connectivity, serial interfaces, and a USB port, the controller supports communication between compatible building systems and external devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Building Automation |
| Part Number | LSS100100 |
| Subcategory | KNX Logic Controller |
| Product Range | SpaceLogic KNX |
| Product Name | Wiser for KNX |
| Device Type | Logic Controller |
| Communication Protocols | KNX, BACnet, Modbus, IP |
| Rated Supply Voltage | 24 V DC |
| Power Consumption | 2 W |
| Ethernet Interface | 1 × RJ45, 10BASE-T/100BASE-TX |
| Serial Interfaces | 1 × RS-232, 1 × RS-485 |
| KNX Interface | 1 × TP-UART2 |
| USB Interface | 1 × USB 2.0 |
| Maximum BACnet Tags | 150 |
| Dimensions (H × W × D) | 90 × 52 × 58 mm |
| Operating Temperature | -5°C to +45°C |
| Weight | 125 g |
Information About LSS100100
The LSS100100 belongs to the Schneider Electric SpaceLogic KNX product range and is also associated with the earlier homeLYnk product name. It enables communication between KNX installations and compatible BACnet, Modbus, and IP-based systems. The controller supports browser-based configuration and visualization, allowing users to manage connected building functions through compatible computers and mobile devices. Its DIN-rail mounting, 24 V DC power supply, and compact enclosure make it suitable for integration into building automation control panels.
Key Features:
-
Multi-Protocol Integration: Supports KNX, BACnet, Modbus, and IP communication for building automation applications.
-
Logic Control: Executes configurable automation logic for coordinating connected building functions.
-
Web-Based Visualization: Supports browser-based configuration and visualization of compatible building systems.
-
Ethernet Connectivity: Provides a 10/100 Mbps Ethernet interface through an RJ45 connector.
-
Serial Communication: Includes RS-232 and RS-485 interfaces for connecting compatible external devices.
-
KNX Bus Interface: Supports communication with KNX bus devices through the integrated TP-UART2 interface.
-
USB Connectivity: Includes a USB 2.0 port for supported peripherals and additional functions.
-

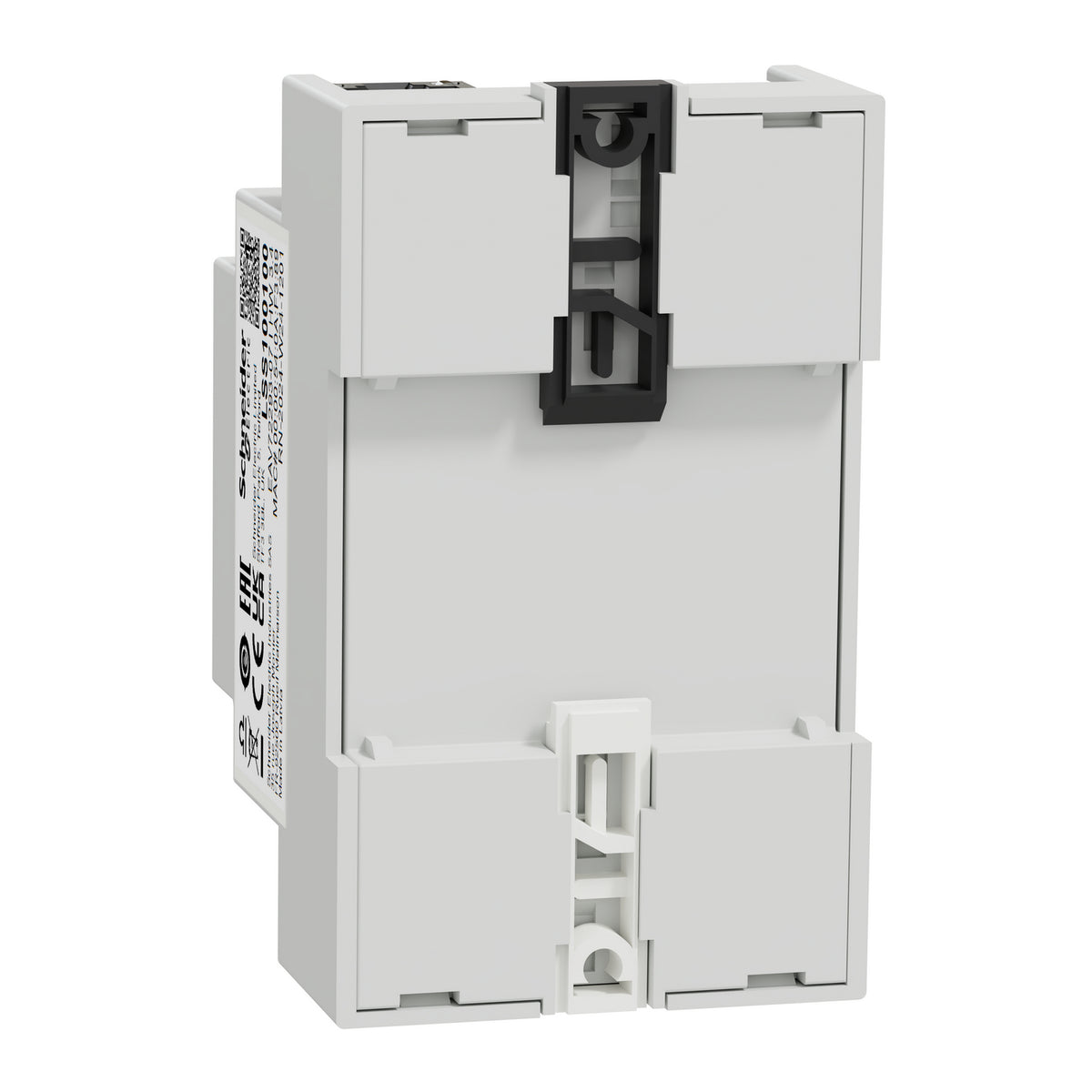

Compact DIN-Rail Mounting: Fits into electrical enclosures and building automation control panels.
The LSS100100 delivers flexible protocol integration and centralized logic control for KNX-based building automation systems.
