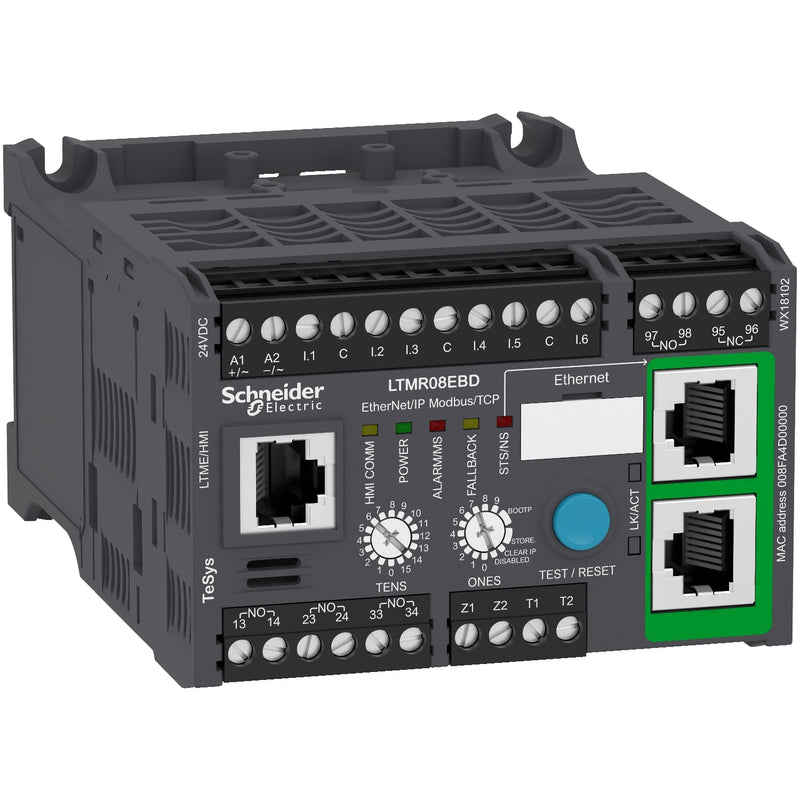

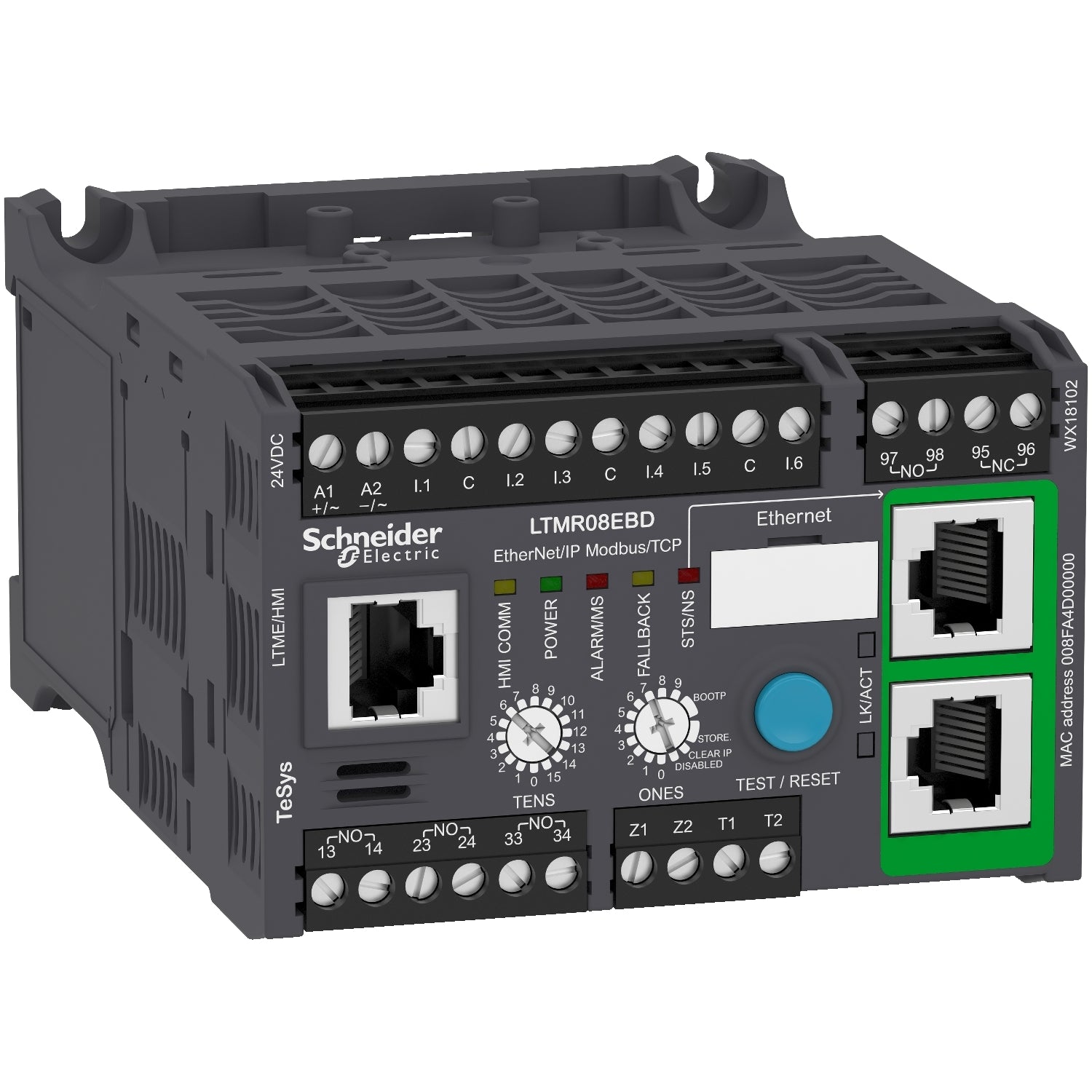

Schneider Electric LTMR08EBD TeSys T Motor Management Controller 0.4-8A Ethernet
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LTMR08EBD
Description
The Schneider Electric LTMR08EBD is a TeSys T motor management controller designed for comprehensive motor protection, monitoring, and control in industrial applications. It operates with a 0.4 to 8 amp current range and integrates seamlessly into automation systems via Ethernet-based communication. This controller is ideal for ensuring reliable motor operation, reducing downtime, and improving process efficiency.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | LTMR08EBD |
| Category | Motor Control |
| Subcategory | Motor Controller |
| Product Series | TeSys T |
| Product Type | Motor Management Controller |
| Measurement Current Range | 0.4…8 A |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 20.4…26.24 V DC |
| Communication Protocol | Modbus TCP / EtherNet/IP |
| Communication Interface | Ethernet RJ45 (10/100 Mbps) |
| Discrete Inputs | 6 |
| Relay Outputs | 3 NO + 1 NO/NC fault output |
| Protection Functions | Overload, phase failure, earth fault, thermal, phase unbalance |
| Insulation Voltage | 690 V |
| Impulse Withstand Voltage | 6 kV |
| Short-Circuit Withstand | 100 kA |
| Operating Temperature | -20°C to 60°C |
| IP Rating | IP20 |
| Certifications | UL, CSA, ATEX, CE, EAC, DNV, ABS |
| Weight | 1.17 lbs |
Information About LTMR08EBD
The LTMR08EBD is a Schneider Electric TeSys T motor controller that serves as the central unit in a modular motor management system. It is built to monitor critical motor parameters such as current, voltage, power, and temperature, enabling predictive maintenance and advanced diagnostics. The device supports Ethernet communication protocols including Modbus TCP and EtherNet/IP, allowing seamless integration into modern industrial networks. Designed for flexibility, it works with internal or external current transformers and supports a wide range of motor control applications in demanding environments.
Key Features:
- Comprehensive Motor Protection: Provides overload, phase failure, phase unbalance, and earth fault protection for enhanced motor safety
- Integrated Ethernet Communication: Supports Modbus TCP and EtherNet/IP for seamless system integration
- Wide Current Measurement Range: Handles 0.4 to 8 A directly, expandable with external transformers
- Advanced Diagnostics: Includes fault recording, trip history, and predictive maintenance data tracking
- Multiple I/O Channels: Features 6 digital inputs and 4 relay outputs for flexible control configurations
- High Measurement Accuracy: Delivers precise current, voltage, and power monitoring for optimized performance
- Robust Industrial Design: Built to operate in harsh environments with high immunity to electrical disturbances
The LTMR08EBD delivers the reliability and precision required for advanced motor management and industrial automation control systems.
