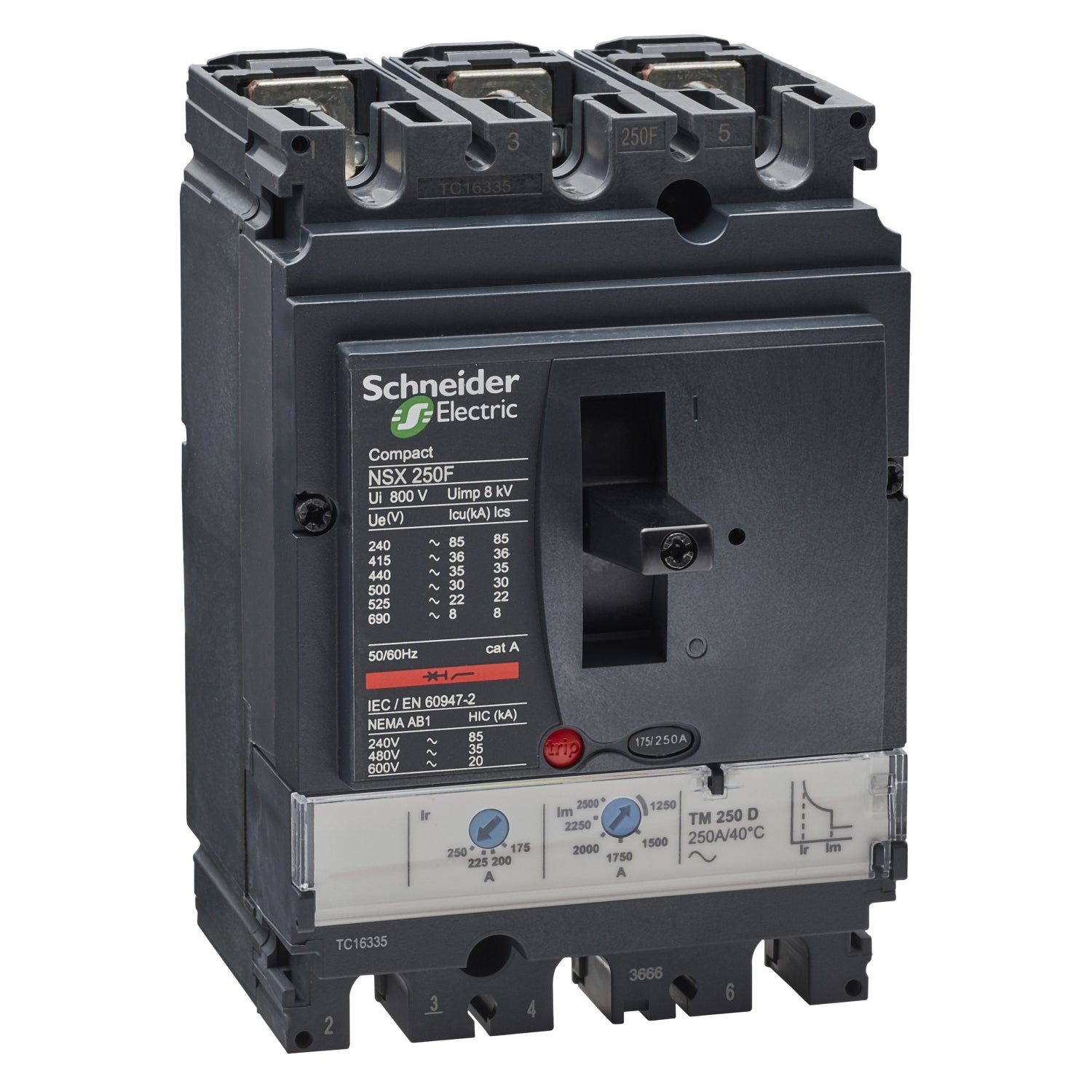

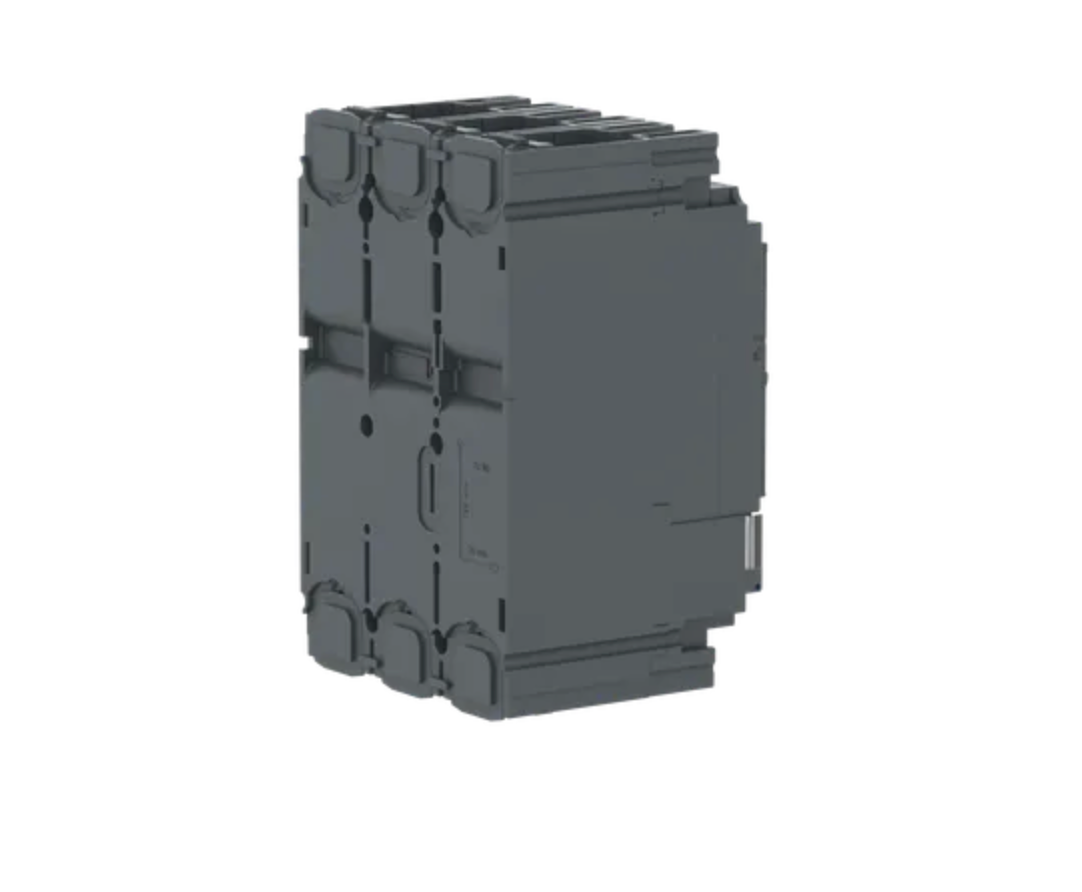

Schneider Electric LV431630 NSX250F 3P 250A Circuit Breaker 36kA 690VAC Thermal Magnetic
- Regular price
- $912.00
- Sale price
- $912.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LV431630
Description
The Schneider Electric LV431630 is a 3-pole molded case circuit breaker from the ComPacT NSX250F series, designed for efficient power distribution and protection in industrial systems. It provides a rated current of 250A with thermal-magnetic trip functionality to safeguard circuits against overloads and short circuits. This breaker ensures high breaking capacity and dependable operation in a compact form factor.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | LV431630 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Product Range | ComPacT NSX |
| Model | NSX250F |
| Rated Current (In) | 250 A |
| Number of Poles | 3P |
| Rated Operational Voltage | Up to 690 VAC |
| Breaking Capacity (Icu) | 36 kA at 415 VAC |
| Trip Unit Type | Thermal-Magnetic (TM-D) |
| Protection Functions | Overload (L), Short-Circuit (I) |
| Mounting Type | Fixed |
| Control Type | Toggle |
| Insulation Voltage (Ui) | 800 V |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Mechanical Durability | 20,000 cycles |
| Electrical Durability | Up to 20,000 cycles (depending on load) |
| Protection Rating | IP40 |
| Operating Temperature | -25°C to +70°C |
| Standards Compliance | IEC 60947 |
| Dimensions | 105 x 161 x 86 mm |
| Weight | 5.29 lbs |
Information About LV431630
The LV431630 is a Schneider Electric circuit breaker from the ComPacT NSX100–250 range, engineered for distribution applications in commercial and industrial installations. It features a fixed mounting design and integrates a TM-D thermal-magnetic trip unit for combined overload and short-circuit protection. With a breaking capacity of up to 36 kA at 415 VAC and support for voltages up to 690 VAC, it is suited for demanding electrical systems. The unit is compliant with IEC 60947 standards and designed to integrate seamlessly into EcoStruxure Power architectures.
Key Features:
- ComPacT NSX250F Series: Designed for high-performance distribution protection systems
- 250A Rated Current: Provides reliable protection for medium to high load circuits
- Thermal-Magnetic Trip Unit (TM-D): Combines adjustable overload and fixed short-circuit protection
- High Breaking Capacity: Up to 36 kA at 415 VAC for enhanced safety
- Wide Voltage Range: Supports operational voltages up to 690 VAC
- 3-Pole Configuration: Suitable for three-phase power systems
- Compact Fixed Mount Design: Saves space in electrical panels and switchboards
- Standards Compliance: Meets IEC 60947, EAC, CCC, and marine certification requirements
The LV431630 delivers the reliability and precision required for safe and efficient circuit protection in industrial power distribution systems.
