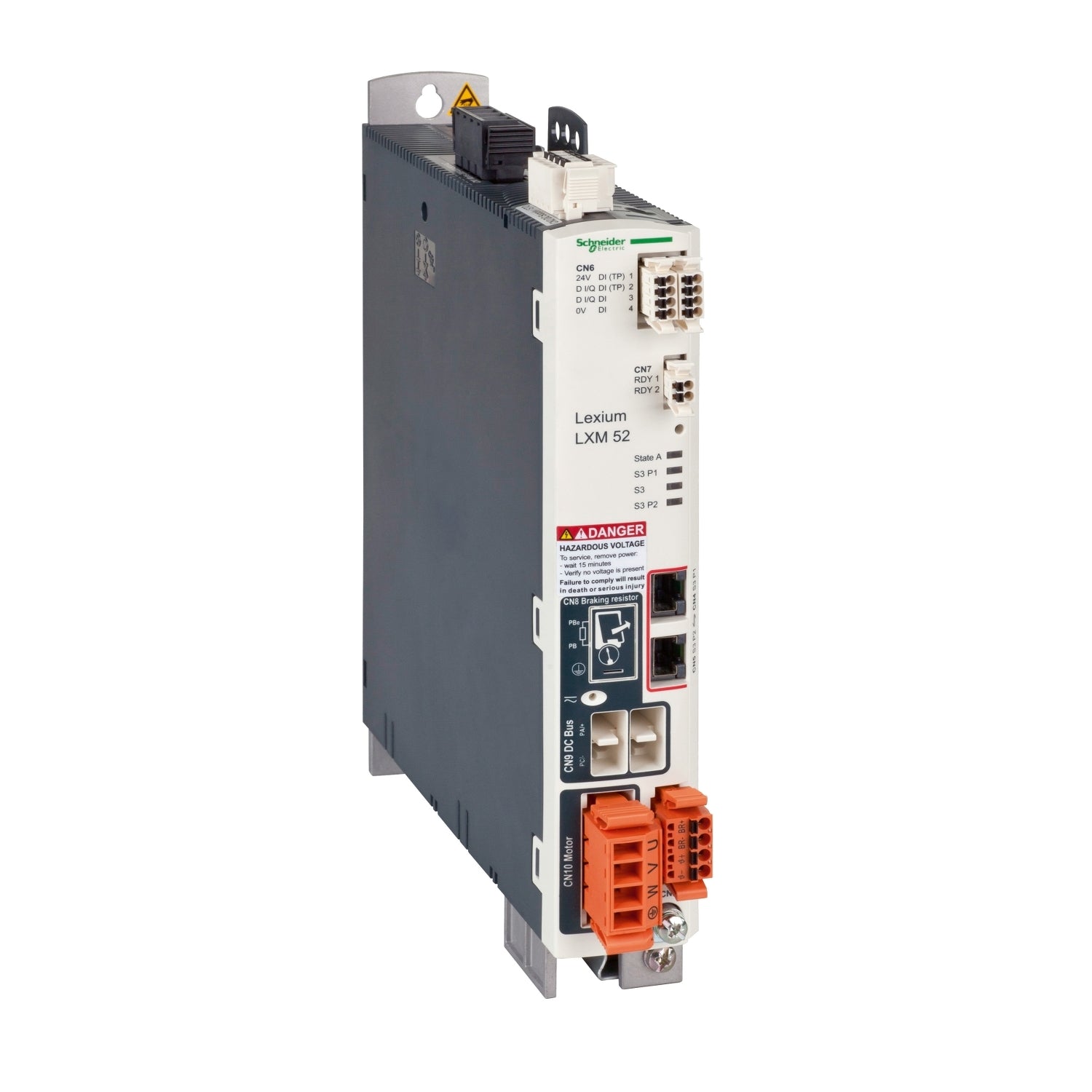

Schneider Electric LXM52DD12C41000 Lexium 52 Servo Drive 3A 480VAC SERCOS III
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LXM52DD12C41000
Description
The Schneider Electric LXM52DD12C41000 is a Lexium 52 standalone servo drive engineered for precise motion control in industrial automation systems. It delivers efficient motor performance with a continuous output current of 3A and supports supply voltages from 208V to 480V. Designed for integration into PacDrive 3 architectures, it is ideal for packaging, material handling, and machine control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | LXM52DD12C41000 |
| Category | Motors & Drives |
| Subcategory | Servo Drive |
| Product Type | Single Servo Drive |
| Series | Lexium 52 (PacDrive 3) |
| Supply Voltage | 208–480 VAC (three phase) |
| Supply Frequency | 50/60 Hz |
| Continuous Output Current | 3 A @ 8 kHz |
| Peak Output Current | 12 A |
| Nominal Power | 0.9 kW |
| Continuous Power | Up to 1.6 kW |
| Switching Frequency | 8 kHz |
| Communication Interface | SERCOS III (integrated) |
| Digital Inputs | 4 digital + 4 touch probe inputs |
| Digital Outputs | 2 digital outputs (24 V DC) |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Dimensions (H x W x D) | 270 x 48 x 217 mm |
| Certifications | CE, UL |
| Weight | 4.0 lbs |
Information About LXM52DD12C41000
The LXM52DD12C41000 is a Schneider Electric servo drive from the Lexium 52 series, developed as part of the PacDrive 3 automation platform. It features an integrated SERCOS III communication interface for high-speed, deterministic motion control networking. The unit is compatible with a wide range of SH3 and MH3 servo motors, enabling flexible system design across various industrial applications. Built with a compact and modular form factor, it provides reliable performance, advanced diagnostics, and seamless integration into modern automation environments.
Key Features:
- Standalone Servo Drive Design: Operates independently within PacDrive 3 systems for flexible machine architectures
- SERCOS III Communication: Enables high-speed real-time motion control networking
- Wide Voltage Range: Supports 208–480 VAC for global industrial applications
- Integrated Digital I/O: Includes 4 digital inputs, 4 touch probe inputs, and 2 digital outputs
- Compact Form Factor: Space-saving design for efficient panel integration
- Peak Current Capability: Delivers up to 12A peak for dynamic load handling
- Servo Motor Compatibility: Supports multiple SH3 and MH3 motor configurations
- Industrial Certifications: Complies with CE and UL standards for safety and reliability
The LXM52DD12C41000 delivers the reliability and precision required for advanced motion control in packaging, automation, and material handling systems.
