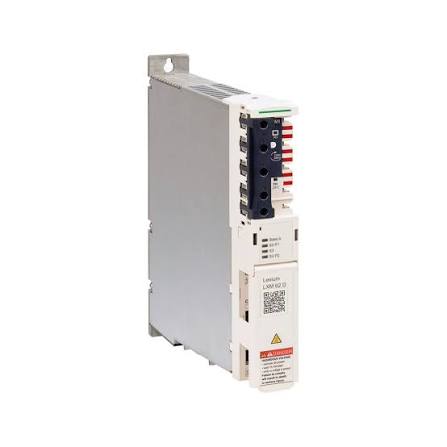

Schneider Electric LXM62DD45C21000 Lexium 62 Servo Drive
- Regular price
- $3,099.00
- Sale price
- $3,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LXM62DD45C21000
Description
The Schneider Electric LXM62DD45C21000 is a Lexium 62 single-axis servo drive designed for high-performance motion control in industrial automation systems. Part of the PacDrive 3 platform, it delivers up to 20 A continuous output current and 45 A peak output current for controlling compatible servo motors in precision positioning and dynamic motion applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Drives & Motors |
| Part Number | LXM62DD45C21000 |
| Subcategory | Servo Drive |
| Product Range | Lexium 62 / PacDrive 3 |
| Drive Type | Single-Axis Servo Drive |
| Nominal Power | 9.6 kW |
| Continuous Output Current | 20 A at 4 kHz |
| Peak Output Current | 45 A for 3 seconds at 4 kHz |
| Supply Voltage | 230 V AC / 400 V AC, depending on configuration |
| Control Voltage | 24 V DC |
| Communication Interface | SERCOS III |
| Digital Inputs | 2 |
| Touch Probe Inputs | 2 |
| Digital Outputs | 2 |
| Safety Function | Safe Torque Off (STO) |
| Dimensions (H × W × D) | 310 × 44.5 × 270 mm |
| Weight | 3 kg |
Information About LXM62DD45C21000
The LXM62DD45C21000 belongs to Schneider Electric’s Lexium 62 range of modular servo drives for multi-axis automation applications. It provides a nominal continuous power rating of 9.6 kW and communicates through the SERCOS III interface for integration with compatible PacDrive 3 motion controllers. The drive supports compatible SH3, MH3, and SHS servo motor families, depending on motor configuration and application requirements. It includes Safe Torque Off (STO) functionality to support safety-related machine designs.
Key Features:
-
Single-Axis Servo Control: Controls one compatible servo motor axis.
-
9.6 kW Rated Power: Supports demanding industrial motion applications.
-
20 A Continuous Output: Provides continuous current at the specified switching conditions.
-
45 A Peak Output: Supports short-duration current demands during dynamic motion.
-
SERCOS III Communication: Integrates with compatible PacDrive 3 motion controllers.
-
Safe Torque Off (STO): Supports safety-related motion control applications.
-
Modular Design: Suitable for multi-axis machine architectures.
-
Broad Servo Motor Compatibility: Designed for selected Lexium SH3, MH3, and SHS motors.
The LXM62DD45C21000 provides precise motion control, high current capability, and integrated safety functionality for compatible industrial automation systems.
