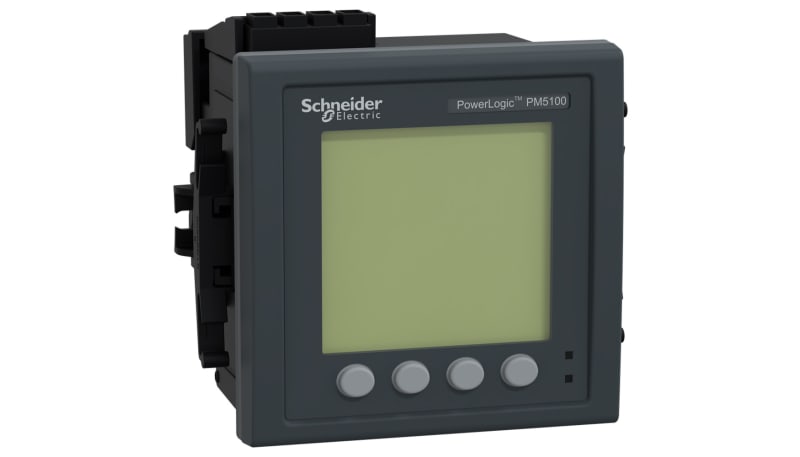

Schneider Electric METSEPM5110 PowerLogic PM5110 Power Meter
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: METSEPM5110
Description
The Schneider Electric METSEPM5110 PowerLogic PM5110 is a flush-mounted power meter designed for monitoring electrical parameters in low-voltage power distribution systems. It measures current, voltage, frequency, power, power factor, and energy while providing harmonic analysis up to the 15th harmonic and RS485 communication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Power Monitoring |
| Part Number | METSEPM5110 |
| Subcategory | Power Meters |
| Series | PowerLogic PM5000 |
| Device Short Name | PM5110 |
| Product Type | Power Meter |
| Power Quality Analysis | Up to 15th harmonic |
| Power Supply | 100...415 V AC, 45...65 Hz; 125...250 V DC |
| Network Type | 1P + N, 3P + N, 3P |
| Line Rated Current | 1 A or 5 A |
| Display Type | Backlit LCD |
| Display Resolution | 128 x 128 pixels |
| Communication | RS485, Modbus RTU, Modbus ASCII, JBUS |
| Sampling Rate | 64 samples/cycle |
| Frequency Measurement Range | 45...65 Hz |
| Active Energy Accuracy | ±0.5%; Class 0.5S according to IEC 62053-22 |
| Voltage Measurement Range | 35...690 V AC between phases; 20...400 V AC phase-to-neutral |
| Current Measurement Range | 10...9000 mA |
| Mounting | Flush-mounted |
| Protection Rating | Front IP52; body IP30 |
| Operating Temperature | -13...158 °F (-25...70 °C) |
| Dimensions | 3.78 x 3.78 x 2.83 in (96 x 96 x 72 mm) |
| Certifications | CE, cULus |
| Weight | 0.84 lbs |
Information About METSEPM5110
The METSEPM5110 is part of the PowerLogic PM5000 series and is designed for fixed installation in electrical monitoring applications. Its measurement architecture supports 1P + N, 3P + N, and 3P network configurations with 1 A or 5 A line-rated current inputs. The meter uses a backlit 128 x 128 pixel LCD and records minimum and maximum instantaneous values with time stamping. Communication is provided through RS485 using Modbus RTU, Modbus ASCII, or JBUS protocols for integration with compatible monitoring systems.
Key Features:
- Power Monitoring: Measures electrical parameters for continuous power system monitoring.
- Measurement Functions: Measures current, voltage, frequency, power factor, active power, reactive power, and energy.
- Harmonic Analysis: Provides power quality analysis through the 15th harmonic.
- Network Compatibility: Supports 1P + N, 3P + N, and 3P electrical networks.
- Communication: Provides RS485 connectivity with Modbus RTU, Modbus ASCII, and JBUS protocols.
- Display: Features a backlit LCD with 128 x 128 pixel resolution for local parameter viewing.
- Measurement Accuracy: Provides up to ±0.5% accuracy for current, voltage, active power, apparent power, and active energy.
- Installation: Uses a flush-mounted framework configuration for panel installation.
The METSEPM5110 delivers the reliability and precision required for electrical power monitoring and distribution system measurement.
