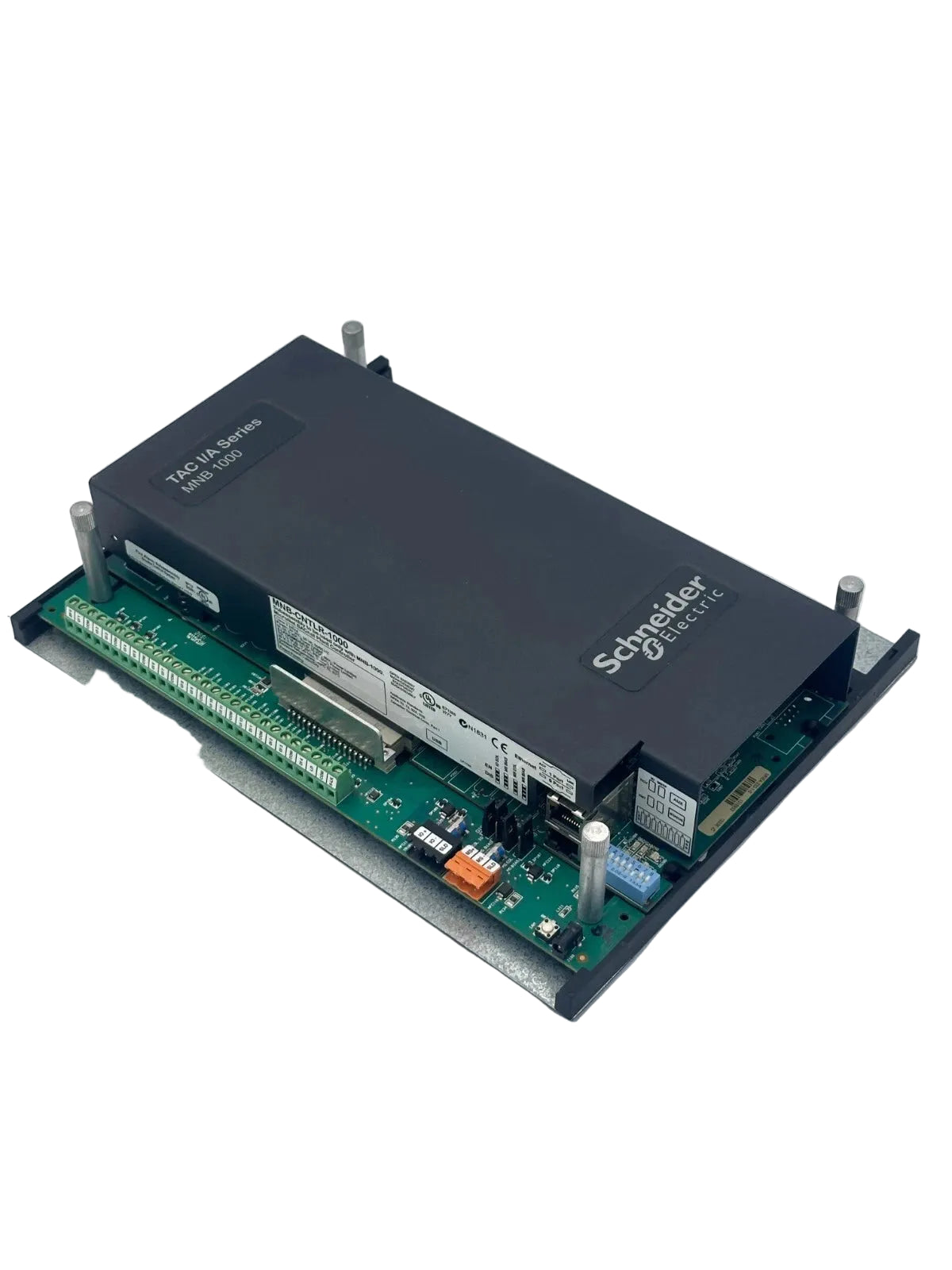

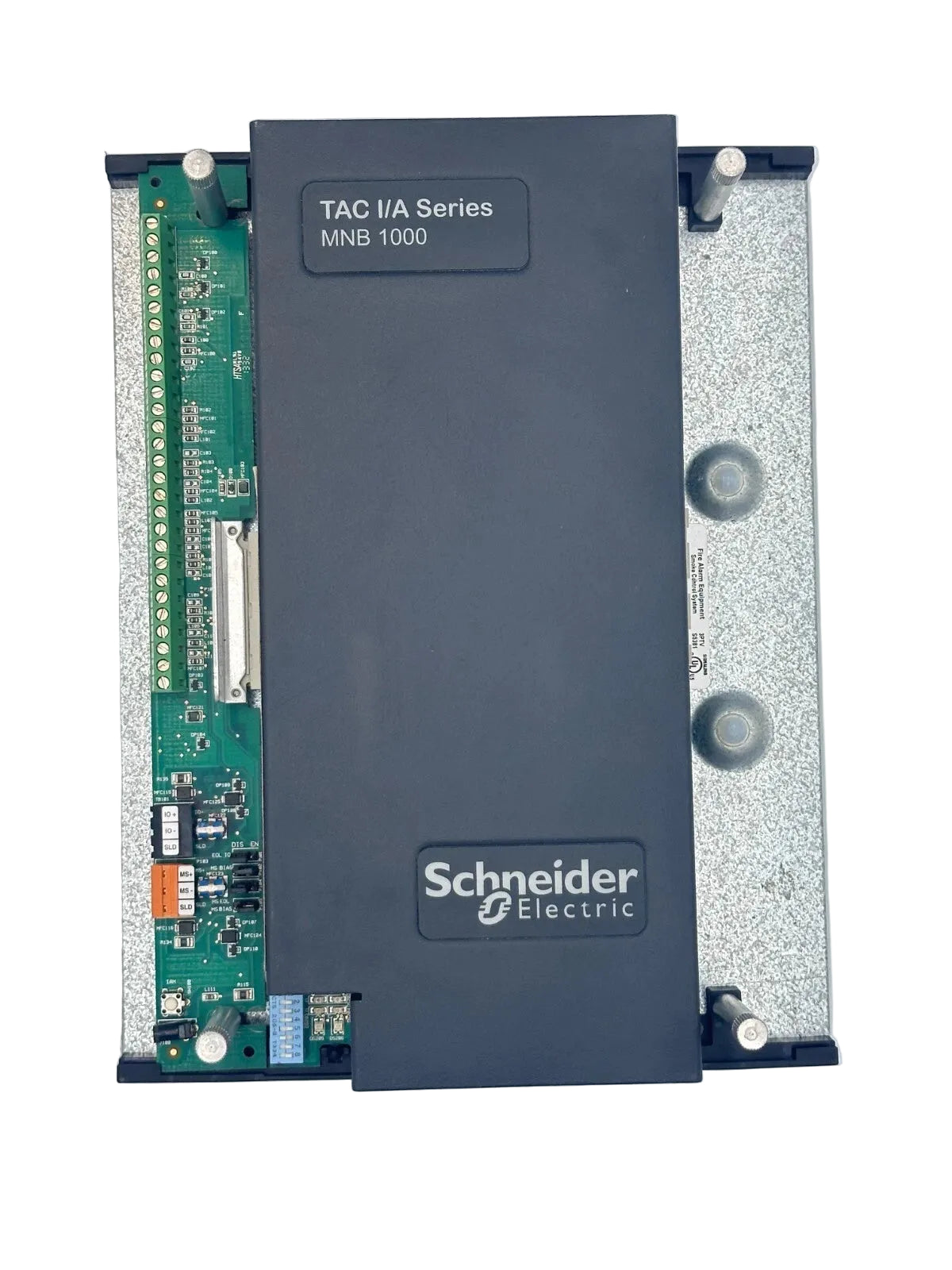

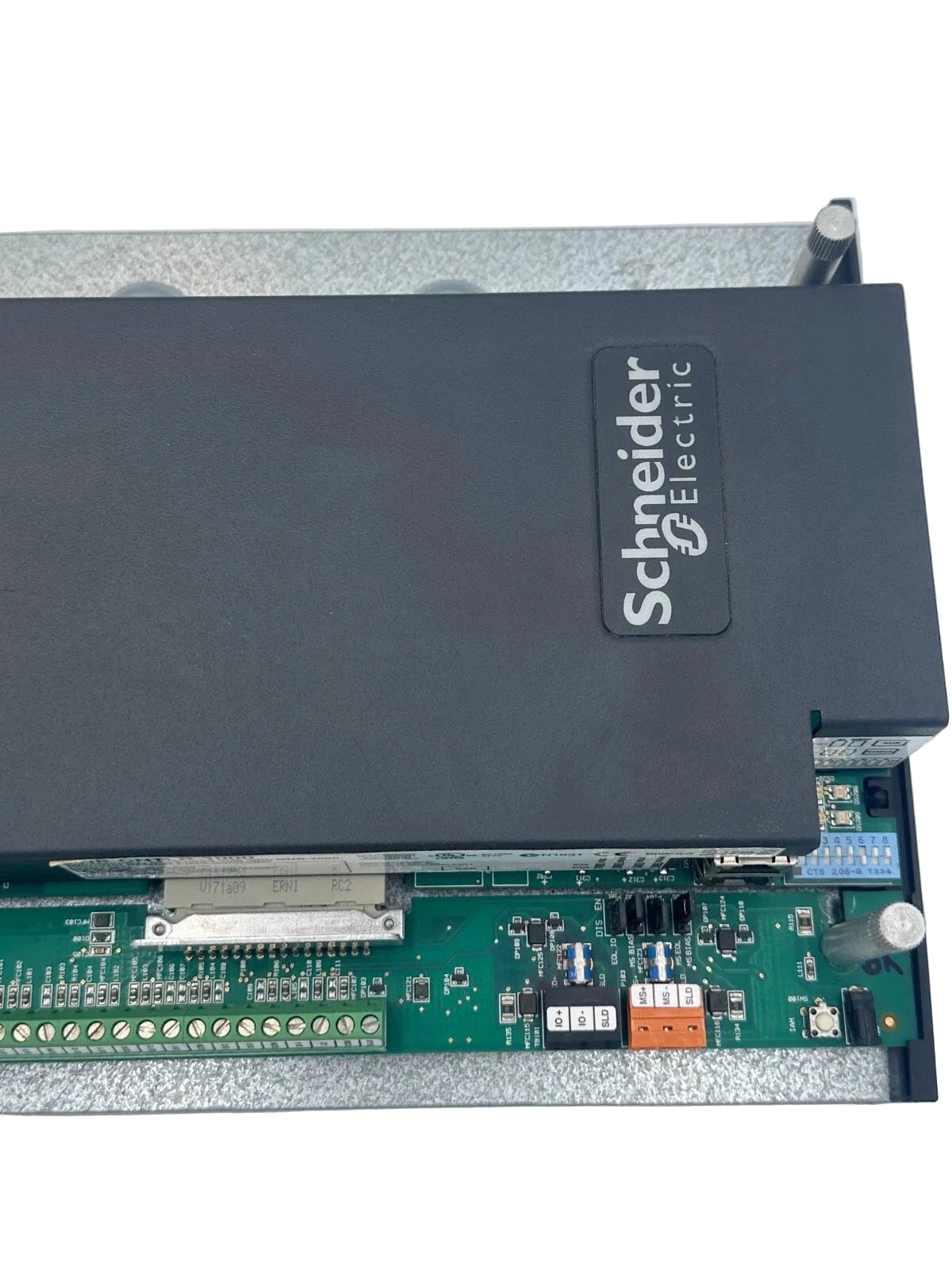

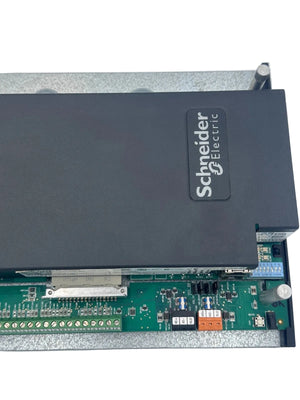

Schneider Electric MNB-CNTRL-1000 BACnet Plant Controller
- Regular price
- $4,599.00
- Sale price
- $4,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MNB-CNTRL-1000
Description
The MNB-CNTRL-1000 is the controller assembly for the Schneider Electric TAC I/A Series MicroNet BACnet plant controller, model MNB-1000. It is used in HVAC and building automation systems to control mechanical equipment such as air handlers and cooling towers. The controller supports BACnet communications, programmable control sequences, and integrated input/output functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | HVAC & Building Automation |
| Part Number | MNB-CNTRL-1000 |
| Subcategory | Building Automation Controller |
| Product Series | TAC I/A Series MicroNet |
| Controller Type | BACnet Plant Controller Assembly |
| Power Supply | 20.4–30 VAC, 50/60 Hz |
| Power Consumption | 50 VA |
| Universal Inputs | 12 |
| Digital Inputs | 4 |
| Universal Outputs | 8 |
| Communication Protocol | BACnet MS/TP |
| Communication Interfaces | Ethernet, MS/TP, S-Link |
| Dimensions (W × H × D) | 213 × 278 × 58 mm |
| Weight | 3.95 lb |
Information About MNB-CNTRL-1000
The MNB-CNTRL-1000 is the controller assembly associated with the Schneider Electric MicroNet MNB-1000 plant controller. It supports BACnet MS/TP and Ethernet networking for integration into building automation systems. Its onboard I/O includes 12 universal inputs, 4 digital inputs, 8 universal outputs, and 8 triac digital outputs. The controller is programmable using WorkPlace Tech software and can be expanded with compatible remote I/O modules.
Key Features:
-
BACnet Communication: Supports BACnet networking for building management system integration.
-
Ethernet Connectivity: Includes Ethernet ports for network communication and bridging.
-
Integrated I/O: Provides universal inputs, digital inputs, universal outputs, and triac outputs.
-
Programmable Control: Supports application-specific control sequences using WorkPlace Tech.
-
HVAC Applications: Designed for air handlers, cooling towers, and other mechanical equipment.
-
Sensor Link Support: Supports compatible S-Link sensors for building monitoring and control.
-
Remote I/O Expansion: Compatible with MNB-15 remote I/O modules for additional control points.
-
Status Indicators: LEDs provide operational and communication status information.
The MNB-CNTRL-1000 delivers flexible control and communication capabilities for HVAC equipment and building automation applications.
