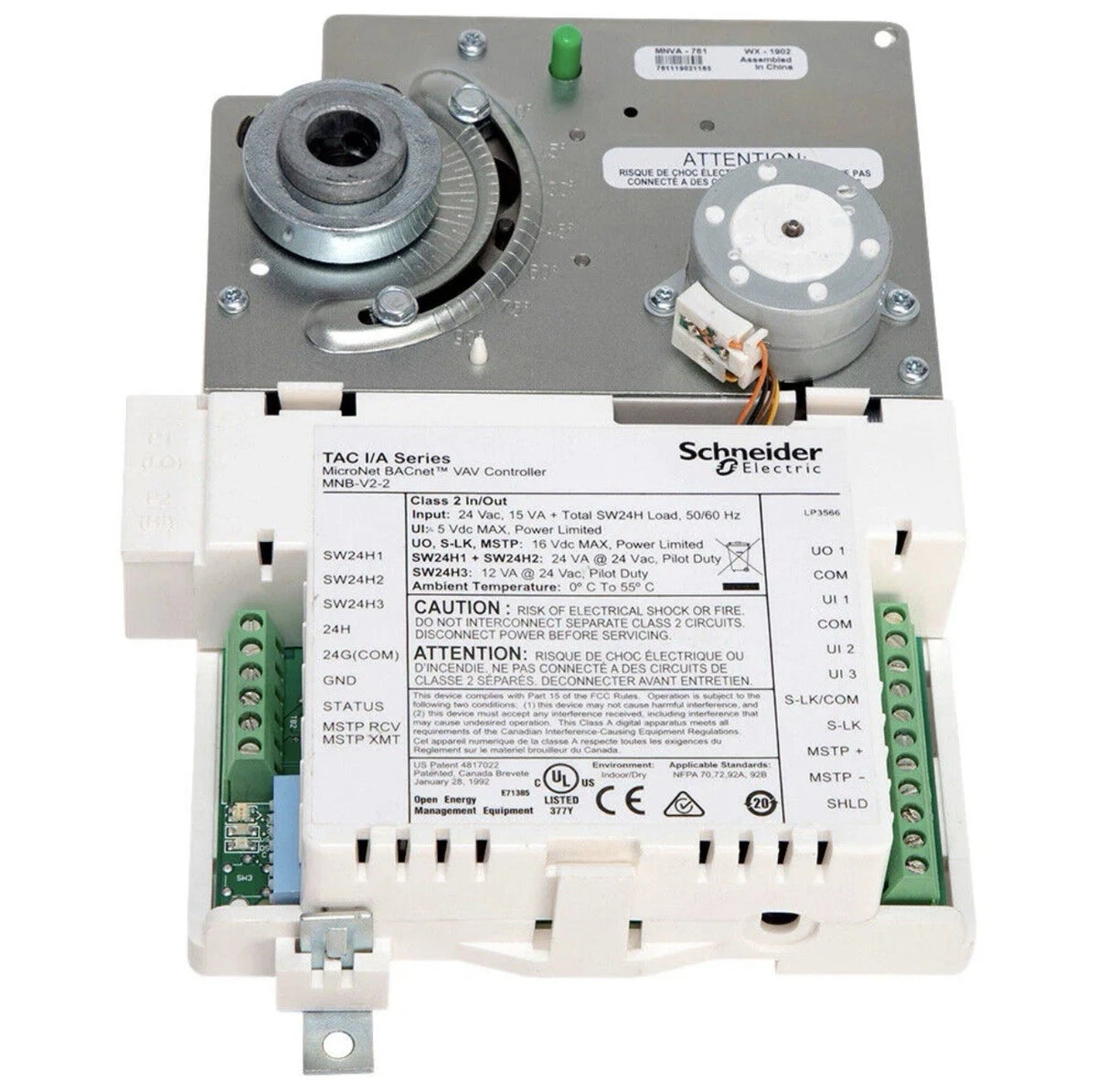

Schneider Electric MNB-V2-2 MicroNet BACnet VAV Deluxe Controller 53 lb-in
- Regular price
- $1,187.00
- Sale price
- $1,187.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MNB-V2-2
Description
The Schneider Electric MNB-V2-2 is a MicroNet BACnet VAV Deluxe Controller designed for comprehensive air volume management in commercial buildings. Featuring an integrated 53 lb-in actuator and self-calibrating pressure transducer, this unit regulates single-duct VAV terminal boxes with high precision. It provides robust HVAC control and intelligent airflow balancing across networked automated facilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | HVAC & Refrigeration |
| Part Number | MNB-V2-2 |
| Subcategory | VAV Controllers |
| Controller Series | MicroNet BACnet Series |
| Actuator Torque | 53 lb-in (6 Nm) |
| Pressure Transducer | Self-Calibrating Differential |
| Communication Protocol | BACnet MS/TP / S-Link Bus |
| Power Input | 20.4 to 30 VAC (24V AC Nom.) |
| Enclosure Rating | UL 94-5VA Plenum Rated |
| Weight | 3.20 lbs |
Information About MNB-V2-2
The MNB-V2-2 is part of the MicroNet BACnet family built to deliver pressure-independent or pressure-dependent terminal unit control. It integrates a self-calibrating differential pressure transducer and a direct-mount 24V AC actuator into a single plenum-rated enclosure. Designed with S-Link bus compatibility, it connects effortlessly to MicroNet MN-Sx smart wall sensors for local setpoint and humidity monitoring. This controller operates on BACnet MS/TP networks, offering DIP-switch MAC addressing and versatile universal inputs for auxiliary HVAC sensing.
Key Features:
-
Integrated 53 lb-in Actuator: Provides strong rotational torque to drive heavy damper shafts across a 0 to 90 degree stroke.
-
Self-Calibrating Transducer: Maintains long-term differential pressure accuracy without requiring manual zero-point adjustments.
-
S-Link Sensor Interface: Connects to MN-Sx room sensors via two-wire unshielded cable for temperature and humidity data.
-
BACnet MS/TP Communication: Supports open-protocol network integration with selectable baud rates up to 76.8 kbps.
-
Manual Override Pushbutton: Allows technicians to position the damper manually during testing and balancing routines.
-
Universal Analog Inputs: Accepts 0-10V, 4-20mA, thermistor, and dry contact inputs for multi-point sensor integration.
The MNB-V2-2 delivers the reliability and precision required for advanced VAV terminal box control and building automation networks.
