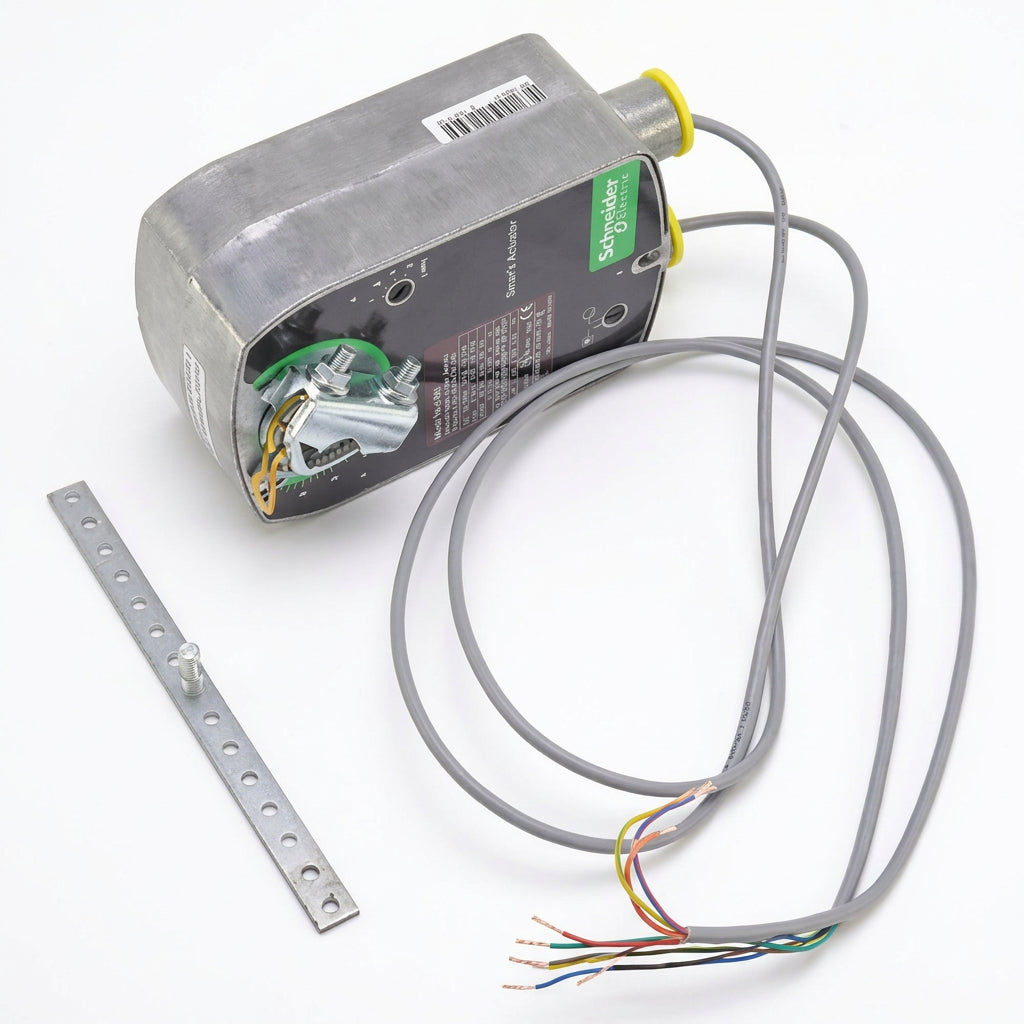

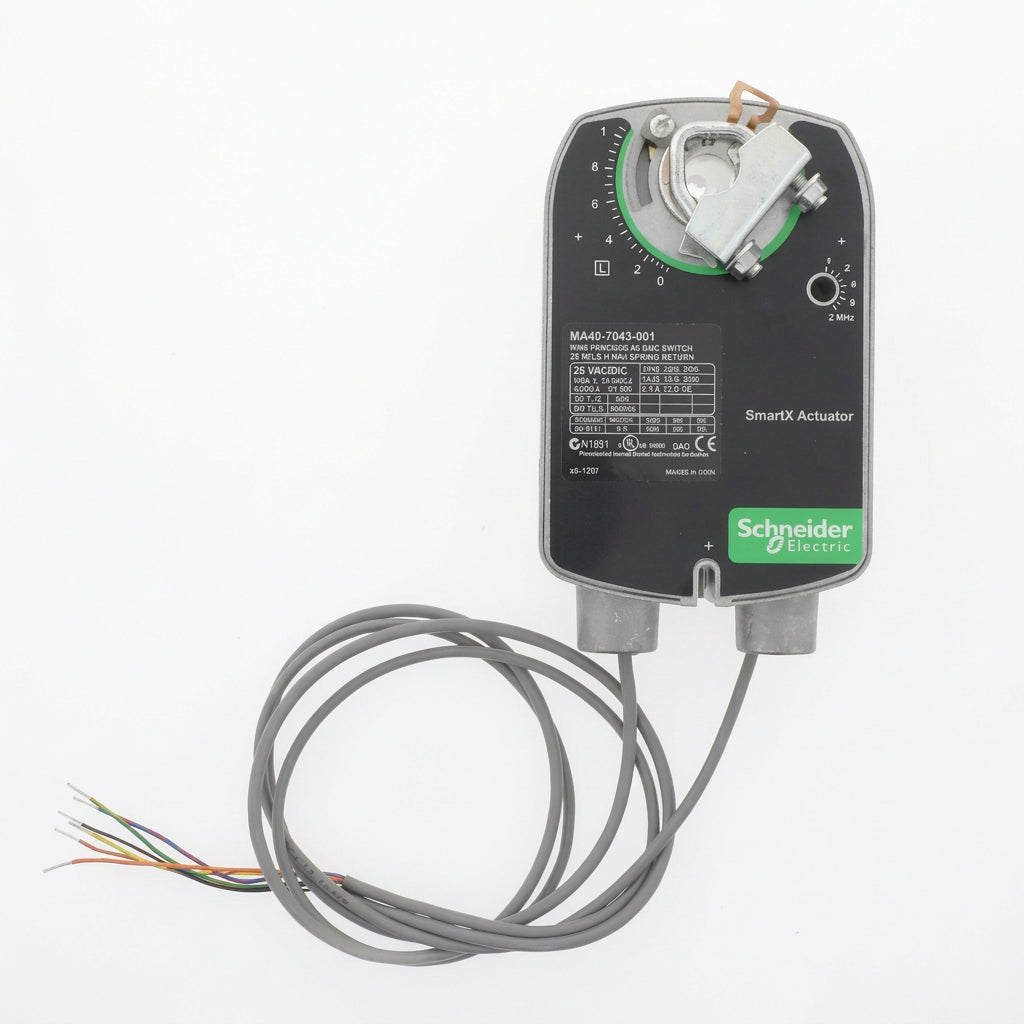

Schneider Electric MS40-7043-501 Proportional Spring Return Actuator with Auxiliary Switch
- Regular price
- $515.00
- Sale price
- $515.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS40-7043-501
Description
The Schneider Electric MS40-7043-501 is a proportional spring-return actuator for positioning compatible HVAC dampers and valves. It provides 35 lb-in (4 N·m) of rated torque and includes an auxiliary switch for position signaling or interlock control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | HVAC |
| Part Number | MS40-7043-501 |
| Subcategory | Spring Return Damper Actuators |
| Product Series | DuraDrive MS40-7043 |
| Control Type | Proportional |
| Supply Voltage | 24 VAC ±20%; 22–30 VDC on supported production versions |
| AC Supply Frequency | 50/60 Hz |
| Control Input | 2–10 VDC; 4–20 mA with an external 500-ohm resistor |
| Rated Torque | 35 lb-in (4 N·m) |
| Maximum Stall Torque | 150 lb-in (17 N·m) |
| Return Mechanism | Mechanical spring return |
| Position Feedback | 2–10 VDC; maximum output current 0.5 mA |
| Auxiliary Switch | 1 SPDT; adjustable switching point from 0° to 95° |
| Auxiliary Switch Rating | 6 A resistive / 1.5 A inductive at 24 VAC |
| Running Power Consumption | 5.6 VA / 4.2 W with AC supply |
| Operating Temperature | −22°F to 140°F (−30°C to 60°C) |
| Enclosure Rating | NEMA 2 / IP54 |
| Weight | 3 lb |
Information About MS40-7043-501
The MS40-7043-501 is part of the Schneider Electric DuraDrive MS40-7043 actuator series. Its direct-mount construction connects the output mechanism to a compatible shaft. A reversing switch selects direct-acting or reverse-acting control, while a voltage feedback output indicates actuator position. The built-in SPDT auxiliary switch has an adjustable operating point within the actuator’s travel range.
Key Features:
- Proportional Control: Accepts a 2–10 VDC signal for modulating damper or valve positioning.
- Current Input Compatibility: Supports 4–20 mA control with a field-supplied 500-ohm resistor.
- Rated Output Torque: Provides 35 lb-in (4 N·m) for the connected mechanism.
- Mechanical Spring Return: Returns the actuator when supply power is removed.
- Auxiliary Switch: Includes one SPDT switch adjustable from 0° to 95°.
- Position Feedback: Supplies a 2–10 VDC output for position monitoring.
- Direct Mounting: Couples to a compatible shaft for mechanical operation.
- Environmental Protection: Features a NEMA 2 / IP54 enclosure.
The MS40-7043-501 delivers the reliability and precision required for proportional positioning and spring-return operation in compatible HVAC systems.
