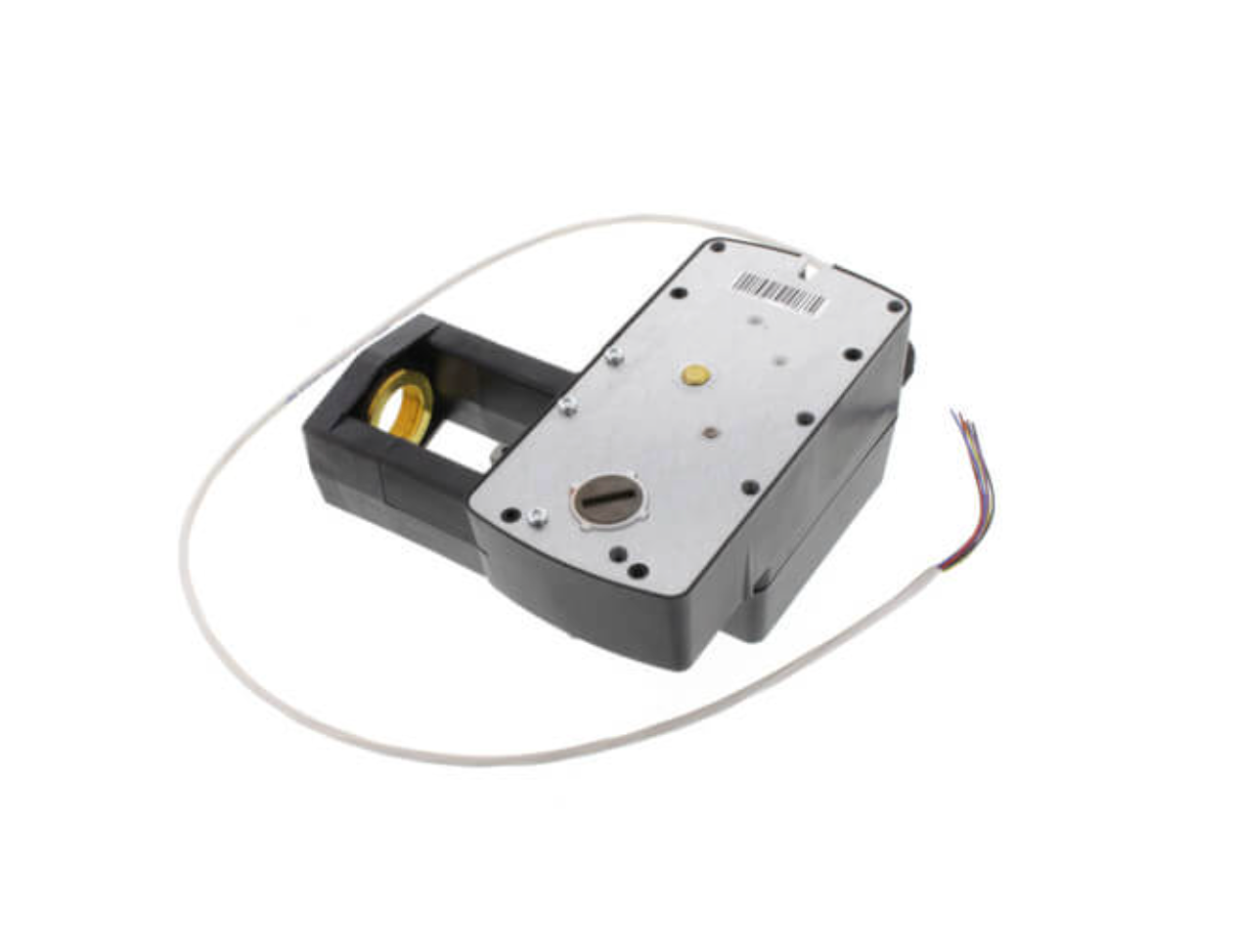

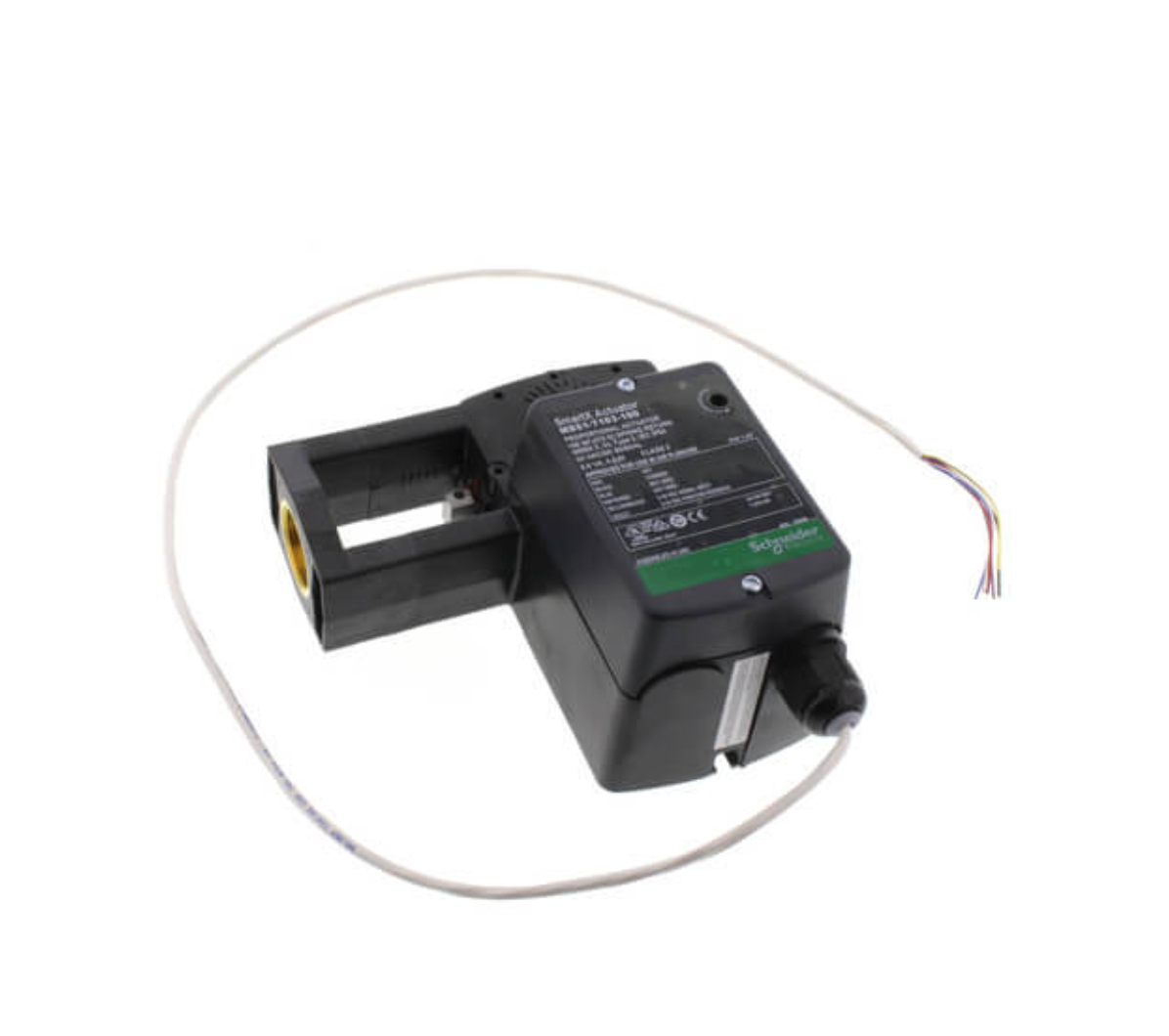

Schneider Electric MS51-7103-100 24V Linear Valve Actuator 105 lbf
Part #:
MS51-7103-100
Manufactured by:
Schneider Electric
- Regular price
- $419.00
- Sale price
- $419.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Schneider Electric MS51-7103-100 is a 24 VAC/VDC proportional linear actuator designed for direct control of compatibl...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: MS51-7103-100
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: MS51-7103-100
Description / Specifications
Description
Schneider Electric MS51-7103-100 is a SmartX/TAC DuraDrive linear spring-return actuator designed for proportional control of compatible HVAC globe valves. It operates on 24 VAC/VDC power with a 2–10 VDC control signal and delivers 105 lbf (467 N) of force with a nominal 1/2-inch linear stroke.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | HVAC & Building Automation |
| Part Number | MS51-7103-100 |
| Subcategory | Valve Actuator |
| Product Type | Linear Actuator |
| Series | SmartX / TAC DuraDrive |
| Actuator Type | Proportional, Spring Return |
| Supply Voltage | 24 VAC/VDC |
| Control Signal | 2–10 VDC |
| Actuating Force | 105 lbf (467 N) |
| Nominal Stroke | 1/2 in (13 mm) |
| Mounting | Direct Valve Mount |
| Manual Override | Yes |
| Overload Protection | Throughout Stroke |
| Enclosure Rating | NEMA 2 / IP54 |
| Cable | 3 ft Plenum Cable |
| Minimum Operating Temperature | -22°F |
| Maximum Operating Temperature | 140°F |
| Compatible Valves | 1/2–2 in VB-7xxx; 1/2–1-1/4 in VB-9xxx |
| Media Applications | Chilled Water, Hot Water & Steam |
| Maximum Media Temperature | 366°F (186°C) |
| Standards | CE, cULus, UL 873, UL Type 2 |
| Country of Origin | Mexico |
| Dimensions | 6-3/8 × 6-3/4 in (L × W) |
| Weight | 2.77 lbs |
Information About MS51-7103-100
Key Features:
- Proportional Control: Accepts a 2–10 VDC input signal for modulating valve positioning.
- Spring Return: Provides fail-safe return operation when actuator power is removed.
- 105 lbf Force: Delivers 105 lbf (467 N) of linear actuating force.
- 1/2-Inch Stroke: Provides a nominal 1/2-inch (13 mm) linear travel.
- 24 VAC/VDC Operation: Designed for common low-voltage HVAC control systems.
- Direct Valve Mounting: Installs directly onto compatible globe valves without separate linkage.
- Manual Override: Allows manual valve positioning and preload adjustment.
- NEMA 2 / IP54 Housing: Rugged polymer enclosure supports commercial HVAC installations.
The MS51-7103-100 delivers the proportional valve positioning and spring-return functionality required for compatible HVAC control systems.
