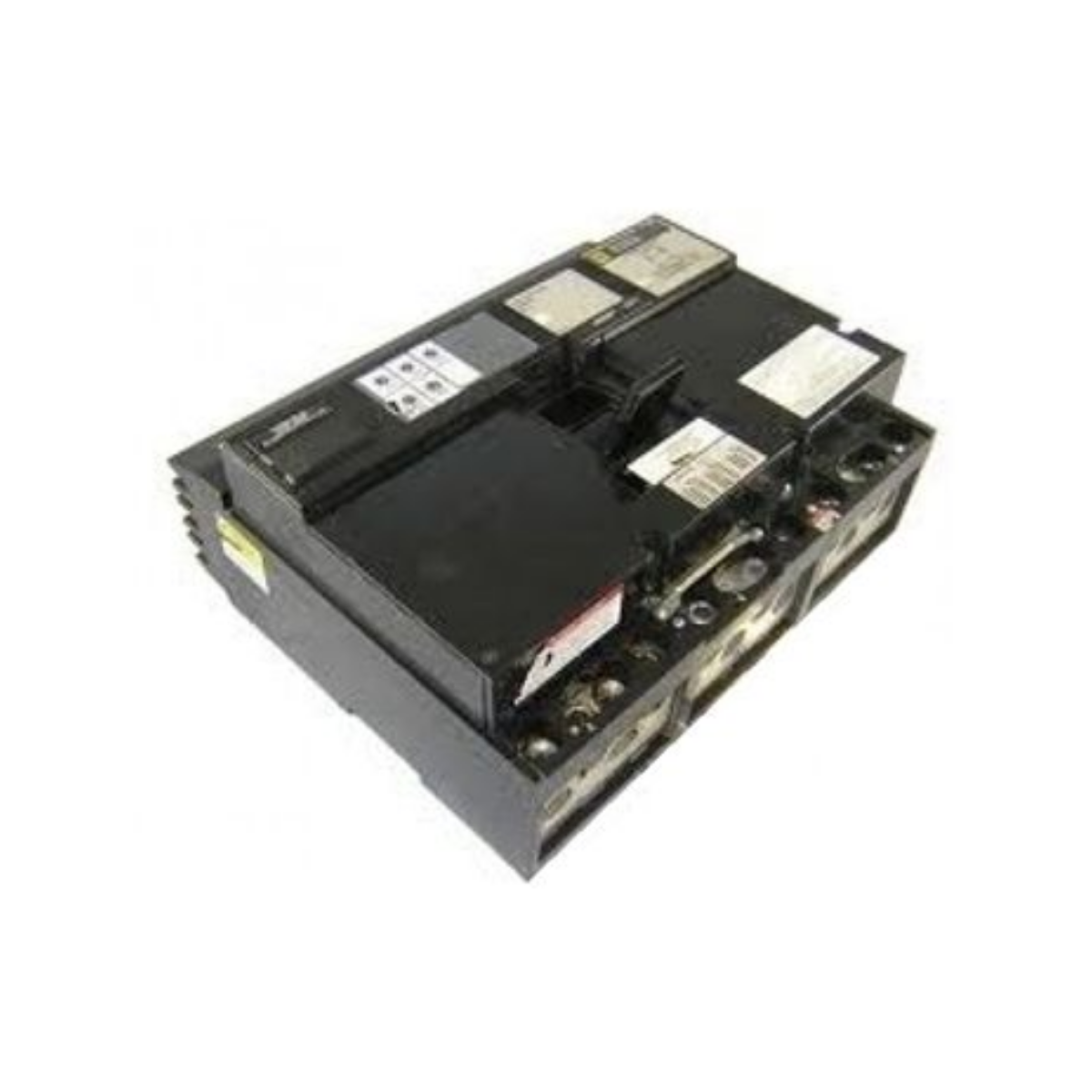

NA361000 | Schneider Electric Three Pole Thermal Magnetic Molded Case Circuit Breaker 1000A 600V
- Regular price
- $11,299.00
- Sale price
- $11,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NA361000
Description
The Schneider Electric NA361000 is a three pole molded case circuit breaker designed for high-current power distribution and protection applications. It provides thermal magnetic protection with long-time and instantaneous trip functions for controlled operation in demanding industrial electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Protection |
| Part Number | NA361000 |
| Subcategory | Molded Case Circuit Breakers |
| Series | NA |
| Frame Type | NA |
| Type | Molded Case Circuit Breaker |
| Amperage Rating | 1000 A |
| Voltage Rating (AC) | 600 VAC |
| Number of Poles | 3 |
| Phase | 3 Phase |
| Interrupting Rating | 50 kA @ 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Connection Type | I-Line Style Plug-In |
| Mounting Style | Feed-Thru |
| Interrupting Class | Standard Interrupting |
| Interchangeable Trip | No |
| Approximate Dimensions (H x W x D) | 15 x 6.5 x 13 in |
| Weight | 57.5 lbs |
Information About NA361000
The NA361000 is part of the Schneider Electric Square D NA Series, developed for large-frame molded case circuit breaker applications requiring high current capacity and dependable protection. This breaker supports three-phase electrical systems with a continuous current rating of 1000 amps and a maximum voltage of 600 VAC. It uses a thermal magnetic trip unit to provide coordinated overload protection and rapid short-circuit interruption through long-time and instantaneous trip functions. The I-Line style plug-in, feed-thru design allows secure installation in compatible panelboards and switchgear used in industrial power distribution environments.
Key Features
- High-Current Thermal Magnetic Protection: Combines a calibrated thermal element for sustained overload protection with a magnetic element that responds instantly to short-circuit conditions, ensuring controlled circuit protection at high current levels.
- 1000 Amp Continuous Rating: Designed to handle heavy electrical loads in large industrial and commercial power distribution systems.
- High Interrupting Capacity: Rated at 50 kA at 480 V, allowing safe interruption of significant fault currents without compromising system integrity.
- Three Pole, Three Phase Configuration: Provides balanced protection across all phases for stable three-phase power distribution.
- I-Line Plug-In Connection: Supports fast, secure installation and compatibility with Schneider Electric I-Line panelboard and switchgear platforms.
- Feed-Thru Mounting Design: Enables straight-through power flow, simplifying wiring layouts and reducing installation complexity.
- Non-Interchangeable Trip Construction: Ensures fixed protection characteristics aligned with system design requirements.
The NA361000 delivers the reliability and precision required for protecting high-current three-phase power distribution circuits in industrial environments.
