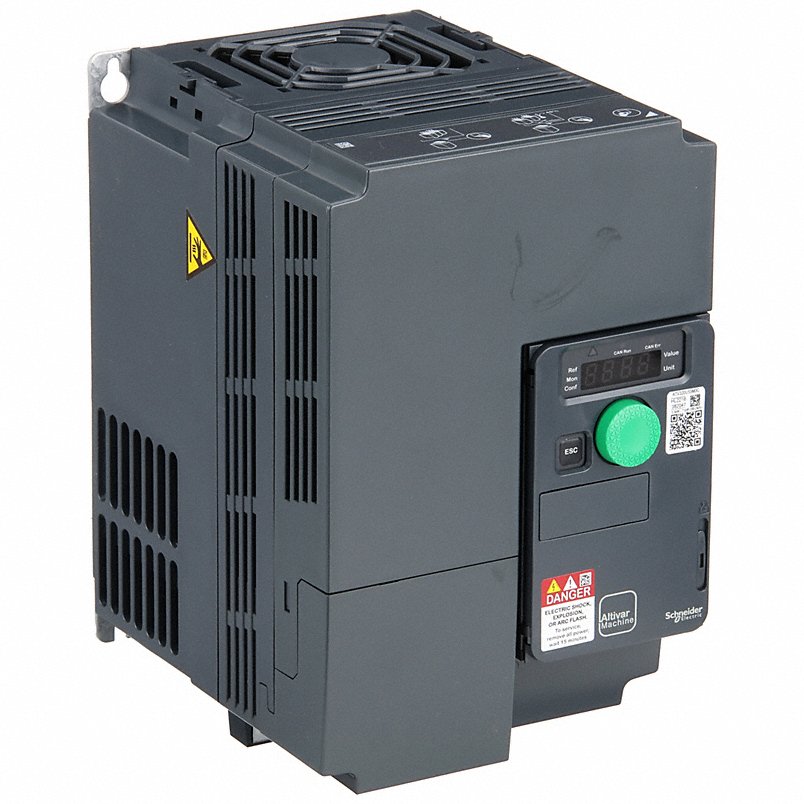

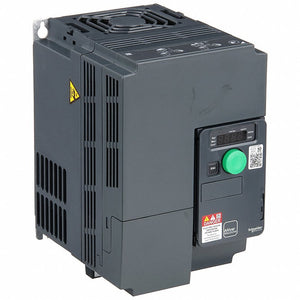

ATV320U55M3C | Schneider Electric Altivar Machine ATV320 Variable Speed Drive, 5.5 kW (7.5 HP), 200–240V AC, 3-Phase
- Regular price
- $985.00
- Sale price
- $985.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATV320U55M3C
Description
The Schneider Electric ATV320U55M3C is a compact, high-performance variable speed drive (VSD) from the Altivar Machine ATV320 family. Designed for OEM machinery, it delivers precise motor control, high dynamic response, and robust operation in demanding industrial environments. Ideal for pumps, fans, conveyors, packaging, material handling, and general automation equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Series | Altivar Machine ATV320 |
| Part Number | ATV320U55M3C |
| Drive Type | Compact AC Variable Speed Drive |
| Power Rating | 5.5 kW (7.5 HP) |
| Supply Voltage | 200–240 VAC, 3-Phase |
| Rated Current | 27.5 A |
| Output Frequency | 0.1–599 Hz |
| Motor Compatibility | 3-Phase Motors |
| Control Methods | V/F, Sensorless Vector (SVC), Flux Vector Control |
| IP Rating | IP20 |
| Mounting Type | Panel Mount (Vertical, ±10°) |
| Environmental Rating | Up to 60°C without derating (with 3C3 coated boards) |
| Primary Use | Pumps, Fans, Compressors, Conveyors, Machinery |
| Weight | 3.5 kg |
| Dimensions (W × H × D) | 150 × 232 × 178 mm |
| Standards | IEC, UL, TÜV, KC |
| Software Support | SoMove, SoMachine, EcoStruxure Machine (DTM) |
Information About ATV320U55M3C
The Schneider Electric ATV320U55M3C is part of the Altivar Machine ATV320 series, designed for high-performance motor control in OEM machinery. Built for demanding industrial environments, it delivers 5.5 kW (7.5 HP) of motor power at 200–240V AC, supporting three-phase motors across a wide range of applications including conveyors, packaging machines, pumps, fans, compressors, and material handling systems. This compact drive features advanced motor control technology such as sensorless flux vector control, torque accuracy at low speeds, and high dynamic response for precision motion. Robust hardware design, including 3C3-coated circuit boards, ensures reliability in harsh conditions with ambient temperatures up to 60°C without additional cooling. The ATV320U55M3C supports both asynchronous and synchronous motors, including open-loop permanent magnet motors, offering flexibility in machine design.
Key Features:
- Power Rating: 5.5 kW (7.5 HP) for three-phase 200–240V AC motors.
- Motor Compatibility: Supports asynchronous, synchronous, and open-loop permanent magnet motors.
- Control Methods: V/F, sensorless flux vector control (SVC), and torque-accurate control at low speeds.
- Output Frequency Range: 0.1 to 599 Hz for broad motor speed control capability.
- Rugged Construction: 3C3-coated PCBs for harsh industrial environments.
- High Temperature Operation: Rated for up to 60°C without derating or external cooling.
- Compact Design: Slim, panel-mount form factor for vertical stacking in machine frames.
- Integrated Safety Functions: Configurable via SoMove, supporting machine safety requirements.
- Connectivity & Software: Fully integrated with EcoStruxure Machine for configuration, monitoring, and diagnostics.
- Energy Efficiency: Built-in energy-saving functions for reduced operating costs.
- Flexible Applications: Ideal for packaging, material handling, textile, woodworking, and general machinery.
- Accessory Support: Compatible with braking resistors, line/motor chokes, and EMC filters depending on drive rating.
The ATV320U55M3C provides the durability, performance, and flexibility necessary for modern automation systems requiring efficient and precise motor control.
