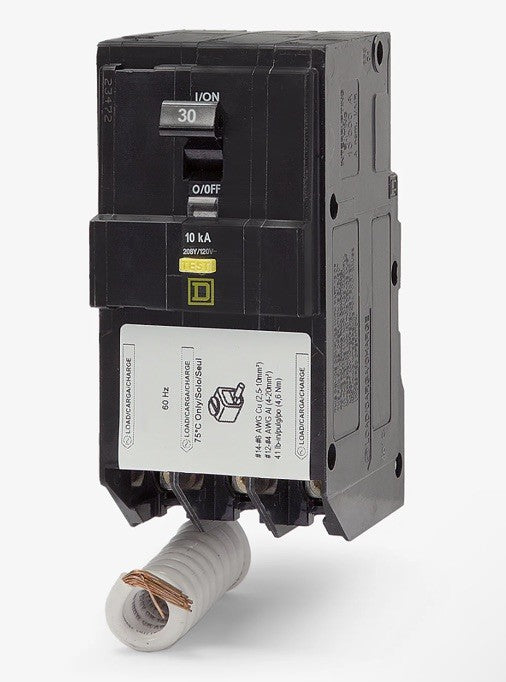

Schneider Electric QO330GFI 30A 3-Pole Ground Fault Plug-In Circuit Breaker
- Regular price
- $714.00
- Sale price
- $714.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QO330GFI
Description
The Schneider Electric QO330GFI is a 30A three-pole plug-in circuit breaker designed to provide ground fault protection in compatible QO load centers and NQ panelboards. It is rated for 208Y/120VAC systems and uses thermal-magnetic protection with long-time and instantaneous trip functions. The breaker provides Class A ground fault protection and a 10kA interrupting rating.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QO330GFI |
| Subcategory | Molded Case |
| Manufacturer | Schneider Electric |
| Series/Frame | QO |
| Family | QO Series |
| Type | QO |
| Current Rating | 30A |
| Voltage Rating | 208Y/120VAC |
| Poles | 3 |
| Phase | 3 |
| Interrupting Rating | 10kA at 240V |
| Trip Unit | Thermal Magnetic |
| Trip Functions | Long Time and Instantaneous |
| Ground Fault Protection | Class A, 6mA |
| Mounting Type | Plug-In |
| Connection Type | Plug-In |
| Terminal Connection | Pressure Plate |
| Frame Size | 100A/QO |
| Wire Size | 14–8 AWG Copper/Aluminum |
| Panel Compatibility | QO Load Centers and NQ Panelboards |
| Temperature Rating | -13°F to 158°F (-25°C to 70°C) |
| Standards/Certifications | UL Listed, CSA Certified |
| Country of Origin | Mexico |
| Dimensions | 4.1 in x 2.2 in x 2.9 in (105 mm x 57 mm x 74 mm), H x W x D |
| Weight | 1.36 lb. |
Information About QO330GFI
The QO330GFI is part of the Schneider Electric QO series and uses a compact plug-in configuration for installation in compatible distribution equipment. It incorporates a thermal-magnetic trip unit with long-time and instantaneous functions for circuit protection. A pigtail connection supports the ground fault sensing function, while the pressure plate terminal accommodates specified copper or aluminum conductors. The device is intended for use in QO load centers and NQ panelboards with a three-pole configuration.
Key Features:
- 30A Current Rating: Provides circuit protection for applications requiring a 30A breaker.
- Three-Pole Configuration: Provides protection and switching for three-phase circuits.
- Class A Ground Fault Protection: Provides 6mA ground fault protection for personnel protection applications.
- Thermal-Magnetic Trip: Combines thermal and magnetic protection with long-time and instantaneous trip functions.
- 10kA Interrupting Rating: Provides an interrupting capacity of 10kA at the specified system voltage.
- Plug-In Mounting: Allows direct installation into compatible QO load centers and NQ panelboards.
- Pressure Plate Terminal: Provides conductor termination for compatible copper and aluminum wire sizes.
- Pigtail Connection: Supports the ground fault sensing circuit required for GFCI operation.
The QO330GFI delivers the reliability and precision required for ground fault and overcurrent protection in compatible low-voltage distribution equipment.
