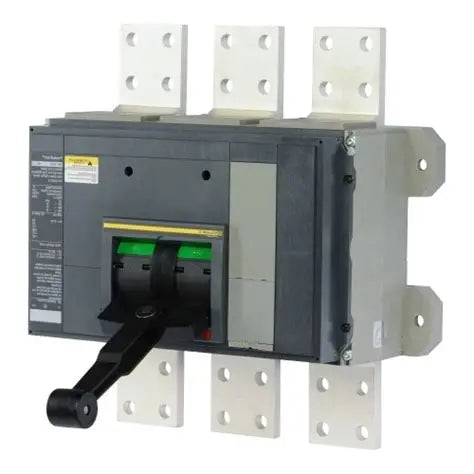

Schneider Electric RLF36000S25 PowerPacT R 2500A Automatic Switch
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RLF36000S25
Description
The Schneider Electric RLF36000S25 is a PowerPacT R-frame automatic molded case switch designed for high-current electrical distribution systems. Rated at 2500 A and 600 V AC with three poles, it provides switching capability and a factory-set magnetic trip function to protect the switch itself.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Electrical Equipment |
| Part Number | RLF36000S25 |
| Subcategory | Automatic Molded Case Switch |
| Product Range | PowerPacT R-Frame |
| Product Type | Automatic Molded Case Switch |
| Rated Current | 2500 A |
| Rated Voltage | 600 V AC |
| Number of Poles | 3 |
| Trip Function | Factory-Set Magnetic Trip |
| Short-Circuit Withstand | 50 kA at 600 V AC |
| Connection Type | Busbar |
| Required Protection | Upstream Circuit Breaker or Fuse |
| Standards | UL 489, CSA |
| Weight | 33.57 lb |
Information About RLF36000S25
The RLF36000S25 belongs to Schneider Electric’s PowerPacT R-frame product range. It is designed for three-phase electrical distribution applications requiring high-current switching and a 600 V AC maximum voltage rating. The switch has a nonadjustable magnetic trip point and is available with compatible busbar and terminal connection arrangements. Because it does not provide complete overload protection for the connected circuit, it must be protected by an appropriately rated upstream circuit breaker or fuse.
Key Features:
-
2500 A Current Rating: Designed for high-current power distribution applications.
-
600 V AC Rating: Suitable for compatible low-voltage electrical distribution systems.
-
Three-Pole Configuration: Supports three-phase electrical circuits.
-
Automatic Magnetic Trip: Includes a factory-set, nonadjustable magnetic trip point.
-
PowerPacT R-Frame Design: Integrates into compatible R-frame switchgear assemblies.
-
Busbar Connection: Supports compatible busbar connection configurations.
-
High Short-Circuit Withstand Capability: Rated for up to 50 kA at 600 V AC under the specified conditions.
-
Standards Compliance: Listed to applicable UL 489 and CSA requirements, according to manufacturer documentation.
The RLF36000S25 provides high-current switching for electrical distribution systems when used with the required upstream circuit protection.
