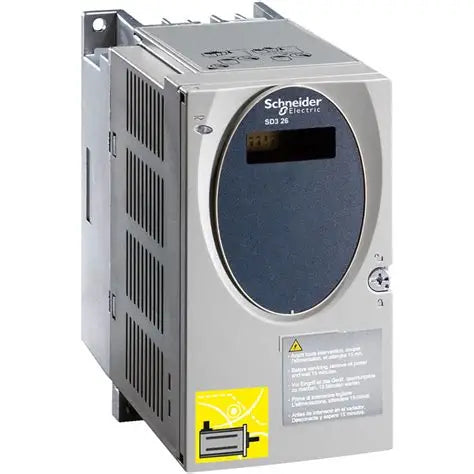

Schneider Electric SD326DU25S2 Lexium SD3 Stepper Motor Drive

Description

The Schneider Electric SD326DU25S2 Lexium SD3 is a stepper motor drive designed to control stepper motors in industrial automation and positioning applications. It uses integrated pulse/direction control signals and supports motor phase currents up to 2.5 A. Its compact block format makes it suitable for installation in machine control cabinets.

Technical Specifications

Information About SD326DU25S2

The SD326DU25S2 is a motion control stepper drive from the Schneider Electric Lexium SD3 product range. It operates with a single-phase AC/DC supply and supports rated input voltages of 100–120 V or 200–230 V. The drive provides nominal power ratings of 180 W at 115 V and 270 W at 230 V. It is designed for pulse/direction motion control and supports input signal levels of 5 V and 24 V.

Key Features:

• Product Range: Lexium SD3 motion control.

• Control Interface: Integrated pulse/direction interface.

• Motor Phase Current: Up to 2.5 A.

• Supply Voltage: Supports 100–120 V and 200–240 V supply ranges.

• Nominal Power: 180 W at 115 V or 270 W at 230 V.

• Input Signal Compatibility: Supports 5 V and 24 V optocoupler inputs.

• Compact Design: Block-format drive for machine control cabinets.

• Natural Convection Cooling: Designed to dissipate heat without forced-air cooling.

The SD326DU25S2 delivers controlled stepper motor operation for positioning and motion applications in automated machinery.
