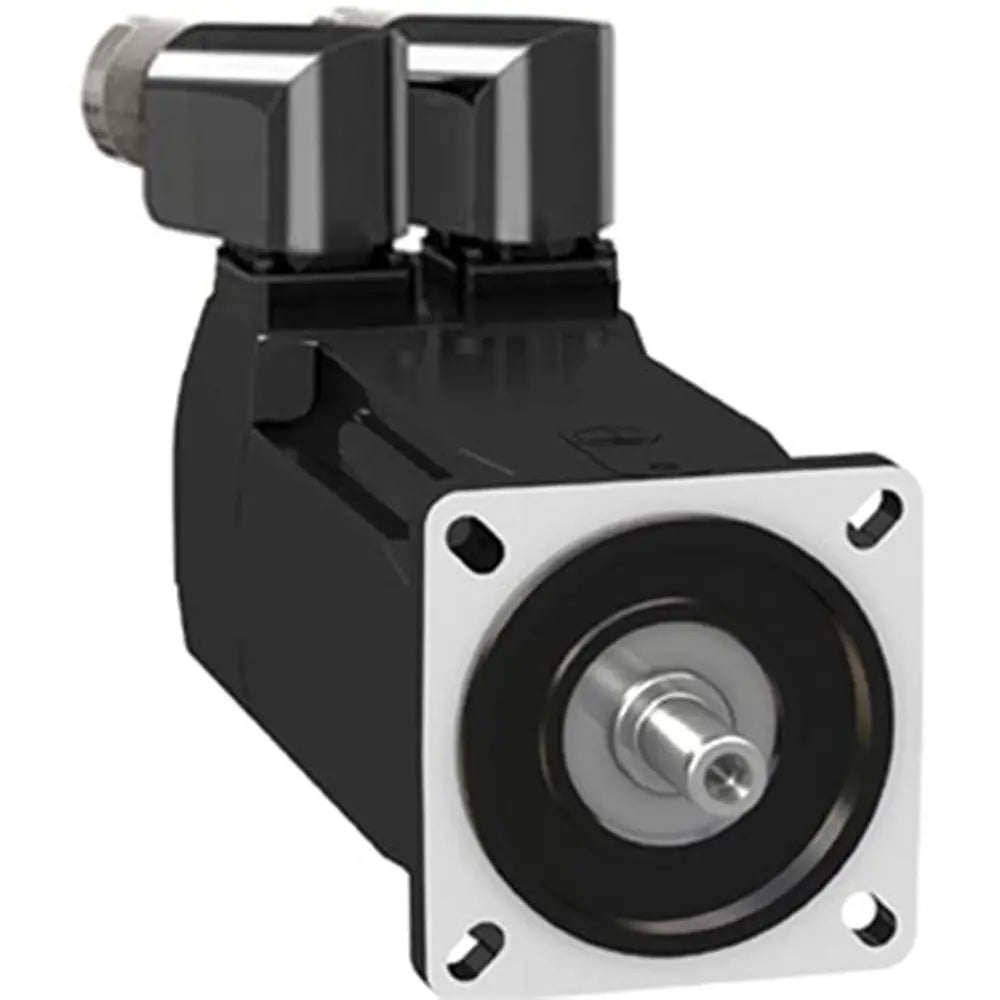

Schneider Electric SH30703P12A2000 SH3 Servo Motor 70mm 3.1Nm 8000rp
- Regular price
- $2,099.00
- Sale price
- $2,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SH30703P12A2000
Description
Schneider Electric SH30703P12A2000 is an SH3 series three-phase servo motor designed for precise motion control in industrial automation systems. It provides up to 8000 rpm mechanical speed, a keyed shaft, and an absolute multiturn SinCos Hiperface encoder for position and speed feedback.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Motion Control |
| Part Number | SH30703P12A2000 |
| Subcategory | Servo Motors |
| Series | SH3 |
| Product Type | Servo Motor |
| Frame Size | 70 mm |
| Rated Supply Voltage | 115–480 V AC |
| Phases | Three phase |
| Maximum Mechanical Speed | 8000 rpm |
| Continuous Stall Torque | 3.1 N·m |
| Peak Stall Torque | 11.3 N·m |
| Encoder Type | Absolute multiturn SinCos Hiperface |
| Encoder Resolution | 128 periods speed feedback |
| Shaft Type | Parallel key |
| Shaft Diameter | 14 mm |
| Shaft Length | 30 mm |
| Protection Rating | IP54/IP65 |
| Cooling Method | Natural convection |
| Motor Length | 220 mm |
| Weight | 3.6 kg |
Information About SH30703P12A2000
The SH30703P12A2000 is part of Schneider Electric’s Lexium 52 & Motors range and is designed for PacDrive 3 motion-control applications. Its 70 mm frame uses a standard flange mounting arrangement and natural-convection cooling for integration into compact machine assemblies. The motor operates from a three-phase 115–480 V supply and uses an absolute multiturn SinCos Hiperface encoder with 128-period speed-feedback resolution. It has no holding brake and uses a parallel-key shaft with rotatable right-angle connectors for electrical connection.
Key Features:
- Maximum Speed: Up to 8000 rpm mechanical speed for high-speed motion applications.
- Supply Voltage: Rated for 115–480 V AC three-phase operation.
- Continuous Stall Torque: 3.1 N·m continuous stall torque across the specified supply range.
- Peak Stall Torque: Up to 11.3 N·m peak stall torque for short-duration acceleration demands.
- Encoder: Absolute multiturn SinCos Hiperface encoder with 128-period speed-feedback resolution.
- Shaft Design: 14 mm diameter parallel-key shaft with a 30 mm shaft length.
- Protection Rating: IP54/IP65 protection configuration for the motor and shaft area.
- Brake Configuration: Supplied without a holding brake for systems using external motion-control braking.
The SH30703P12A2000 delivers the reliability and precision required for industrial servo motion control, machine automation, and dynamic positioning applications.
