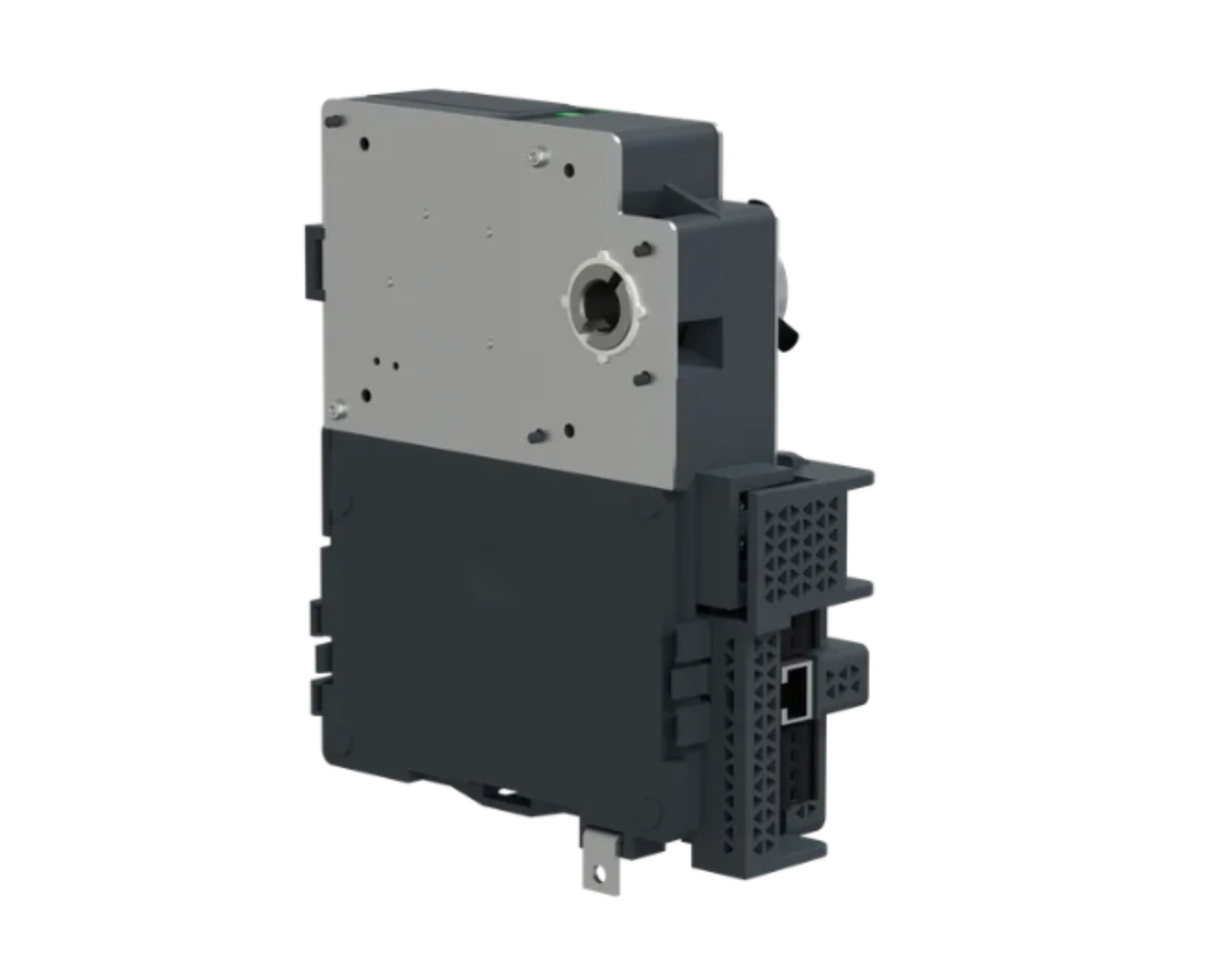

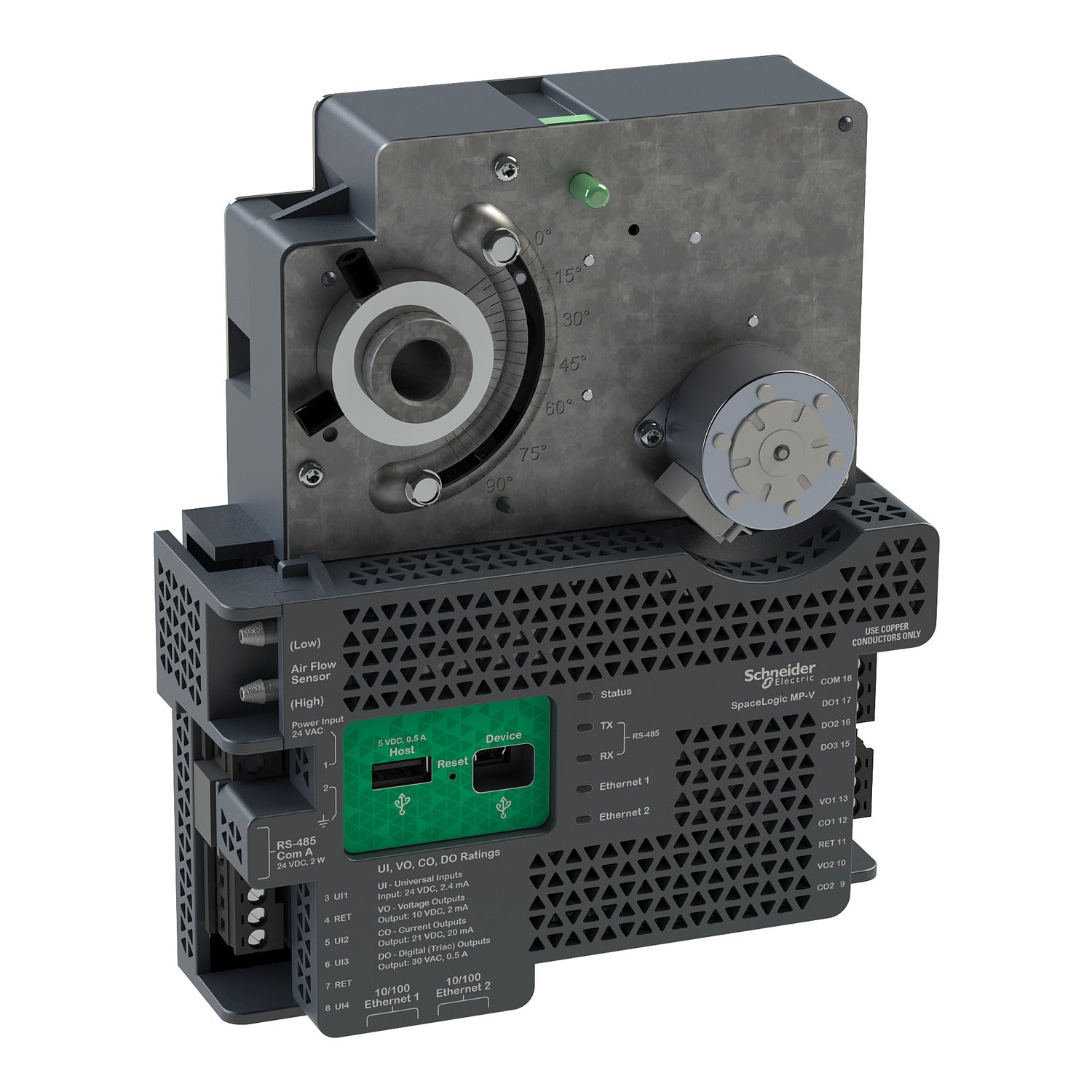

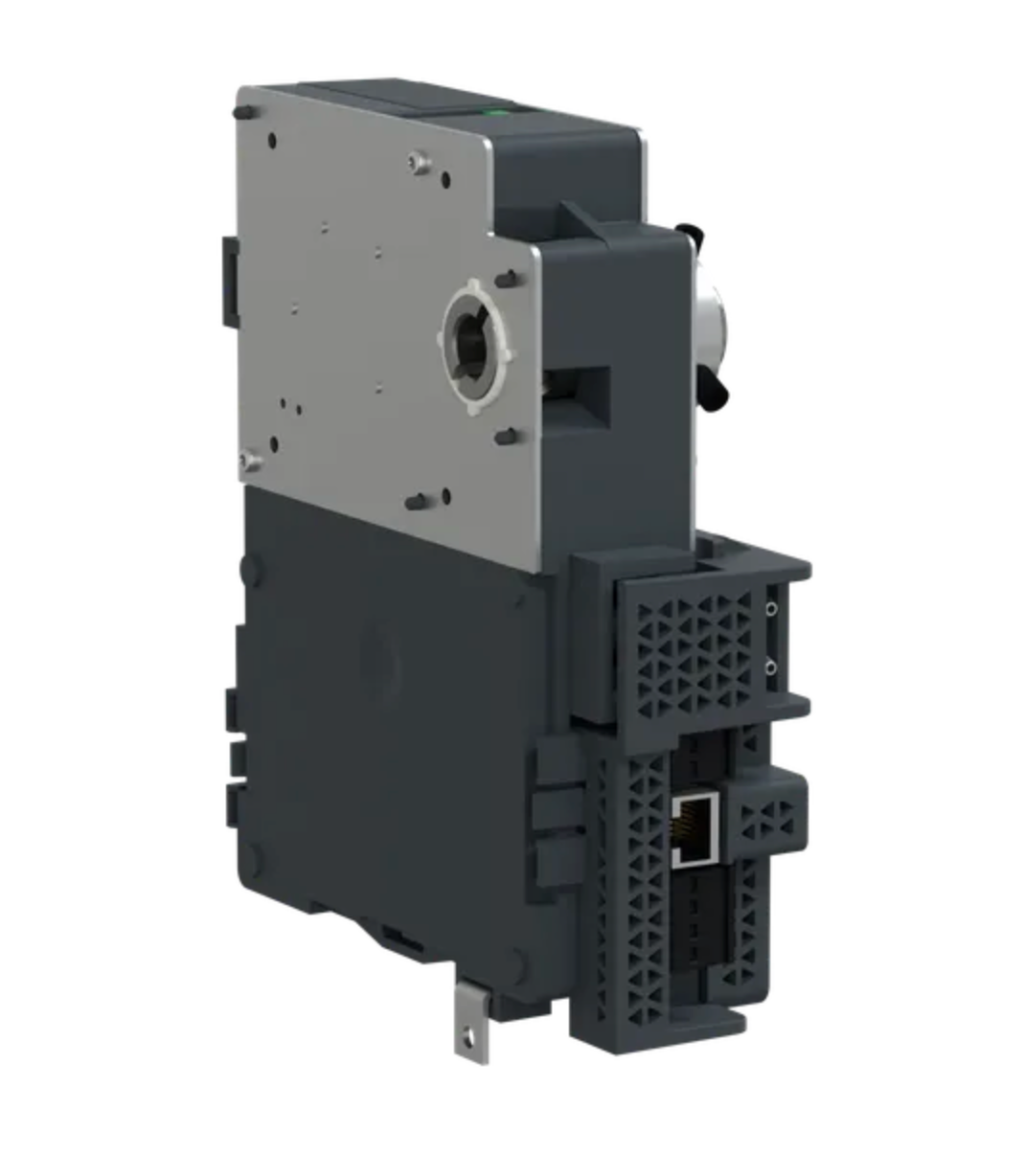

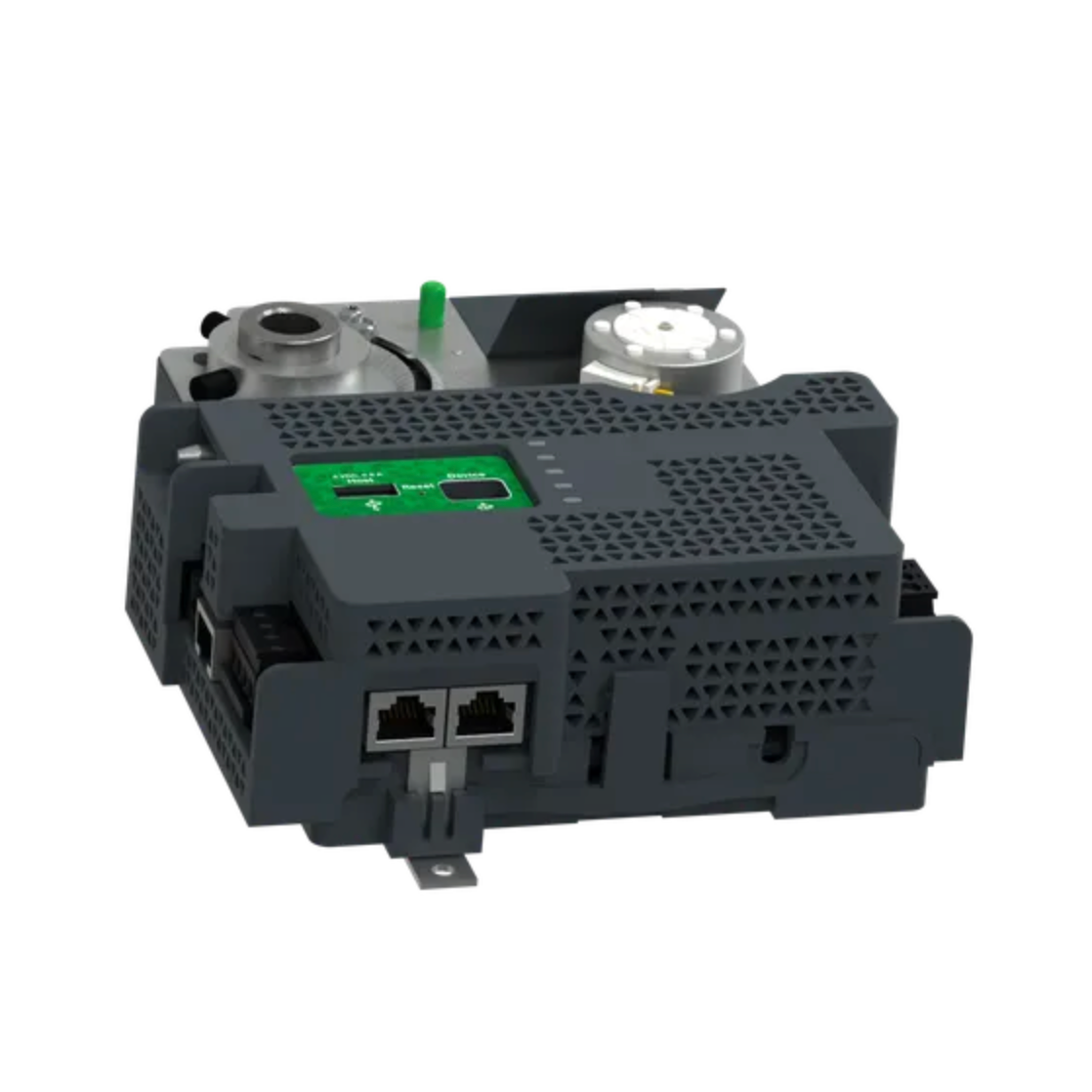

Schneider Electric SXWMPV7AX10002 SpaceLogic MP-V VAV Controller BACnet HVAC Controller
- Regular price
- $637.00
- Sale price
- $637.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SXWMPV7AX10002
Description
The Schneider Electric SXWMPV7AX10002 is a SpaceLogic MP-V field controller designed for precise control of variable air volume (VAV) systems in building automation environments. It integrates a programmable controller, actuator, and airflow sensor into a single compact device for efficient HVAC management. This controller enables reliable performance and streamlined installation in commercial climate control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | SXWMPV7AX10002 |
| Category | HVAC |
| Subcategory | HVAC Controller |
| Product Series | SpaceLogic MP-V |
| Model | MP-V-7A |
| Product Type | Field Controller |
| Application | Variable Air Volume (VAV) |
| Supply Voltage | 24 V AC ±20% |
| Power Consumption | 21 VA |
| Communication Protocols | BACnet IP / BACnet MS/TP |
| Ethernet Ports | 2 x RJ45 (10/100BASE-TX) |
| Inputs | 3 Universal Inputs |
| Outputs | 3 Triac Outputs, 1 Analog Output |
| Analog Output Range | 0–10 V DC |
| Triac Output Voltage | 24 V AC |
| Triac Output Current | 0.5 A max |
| Mounting Type | Damper Shaft Mount |
| Actuator Torque | 10 N·m |
| IP Rating | IP20 |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Memory | 128 MB RAM, 32 MB Flash |
| Certifications | UL, cUL, CE, RCM |
| Dimensions | 198 x 161 x 63 mm |
| Weight | 2.87 lbs |
Information About SXWMPV7AX10002
The SXWMPV7AX10002 is a Schneider Electric SpaceLogic MP-V-7A controller engineered for VAV applications requiring integrated control, sensing, and actuation. It combines multiple functions into one unit, including onboard I/O, damper actuator control, and airflow measurement, reducing the need for separate components. The controller supports BACnet IP and BACnet MS/TP communication, allowing flexible integration into building management systems. Designed for direct mounting on damper shafts, it simplifies installation while providing advanced programmability and reliable operation in HVAC systems.
Key Features:
- Integrated VAV Controller Design: Combines controller, actuator, and airflow sensor into a single compact unit
- BACnet Communication Support: Enables BACnet IP and MS/TP connectivity for seamless BMS integration
- Flexible I/O Configuration: Includes 3 universal inputs, 3 triac outputs, and 1 analog output
- Direct Damper Mounting: Installs directly onto the damper shaft for simplified setup and reduced wiring
- Advanced HVAC Control: Designed specifically for variable air volume applications with precise airflow regulation
- Programmable Functionality: Supports customizable logic for optimized building automation performance
- Dual Ethernet Ports: Provides reliable network communication with 10/100BASE-TX connectivity
- Integrated Protection Features: Includes internal fuse and MOV suppression for enhanced durability
The SXWMPV7AX10002 delivers the reliability and precision required for advanced HVAC control and building automation systems.
