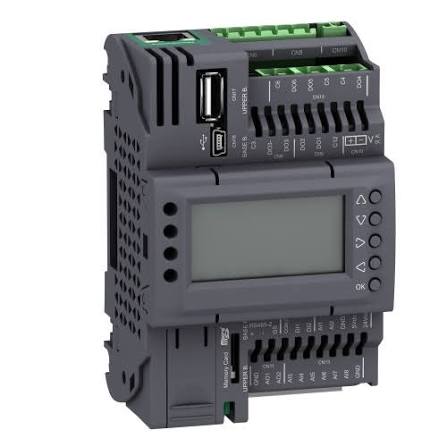

Schneider Electric TM172PDG18R Modicon M172 HVAC Controller
- Regular price
- $825.00
- Sale price
- $825.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TM172PDG18R
Description
The Schneider Electric TM172PDG18R is a Modicon M172 programmable controller with an integrated performance display and 18 I/O points, designed primarily for HVAC and machine control applications. It supports Ethernet, Modbus, and BACnet connectivity, allowing it to communicate with building management systems and other automation devices. Its configurable analog inputs, relay outputs, and analog outputs make it suitable for controlling heating, ventilation, air conditioning, and related equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | HVAC & Building Automation |
| Part Number | TM172PDG18R |
| Subcategory | HVAC Controller |
| Product Range | Modicon M172 |
| Controller Type | Programmable Logic Controller |
| Application | HVAC Automation |
| Supply Voltage | 24 V AC/DC |
| Total I/O Points | 18 |
| Digital Inputs | 2 |
| Analog Inputs | 8 |
| Analog Outputs | 2 |
| Communication Interfaces | Ethernet, RS-485, CAN, USB |
| Communication Protocols | Modbus TCP, Modbus Serial, BACnet IP, BACnet MS/TP |
| Display | Integrated Performance Display |
| Dimensions (W × H × D) | 2.8 × 4.3 × 2.4 in |
| Weight | 0.5 lb |
Information About TM172PDG18R
The TM172PDG18R belongs to the Schneider Electric Modicon M171/M172 controller family and is designed for programmable HVAC applications. It features an integrated display for local monitoring and controller interaction. The unit provides 18 I/O points, including 2 digital inputs, 8 analog inputs, 6 digital outputs, and 2 analog outputs. Communication options include Ethernet, two RS-485 ports, CAN, and USB, with support for Modbus and BACnet protocols.
Key Features:
-
Integrated Performance Display: Provides a local interface for monitoring and operating the controller.
-
18 I/O Points: Combines digital and analog input/output functions in one controller.
-
HVAC Control: Designed for heating, ventilation, air conditioning, and related equipment.
-
Ethernet Connectivity: Supports Modbus TCP and BACnet/IP communication.
-
RS-485 Communication: Supports serial Modbus and BACnet MS/TP networks.
-
Configurable Analog Inputs: Supports compatible temperature sensors, voltage, current, and resistance-based signals.
-
Flexible Analog Outputs: Provides 0–10 V, 4–20 mA, and PWM output options.
-
Programmable Operation: Supports application-specific automation logic using Schneider Electric engineering software.
The TM172PDG18R delivers flexible control, integrated I/O, and network connectivity for HVAC automation and equipment management applications.
