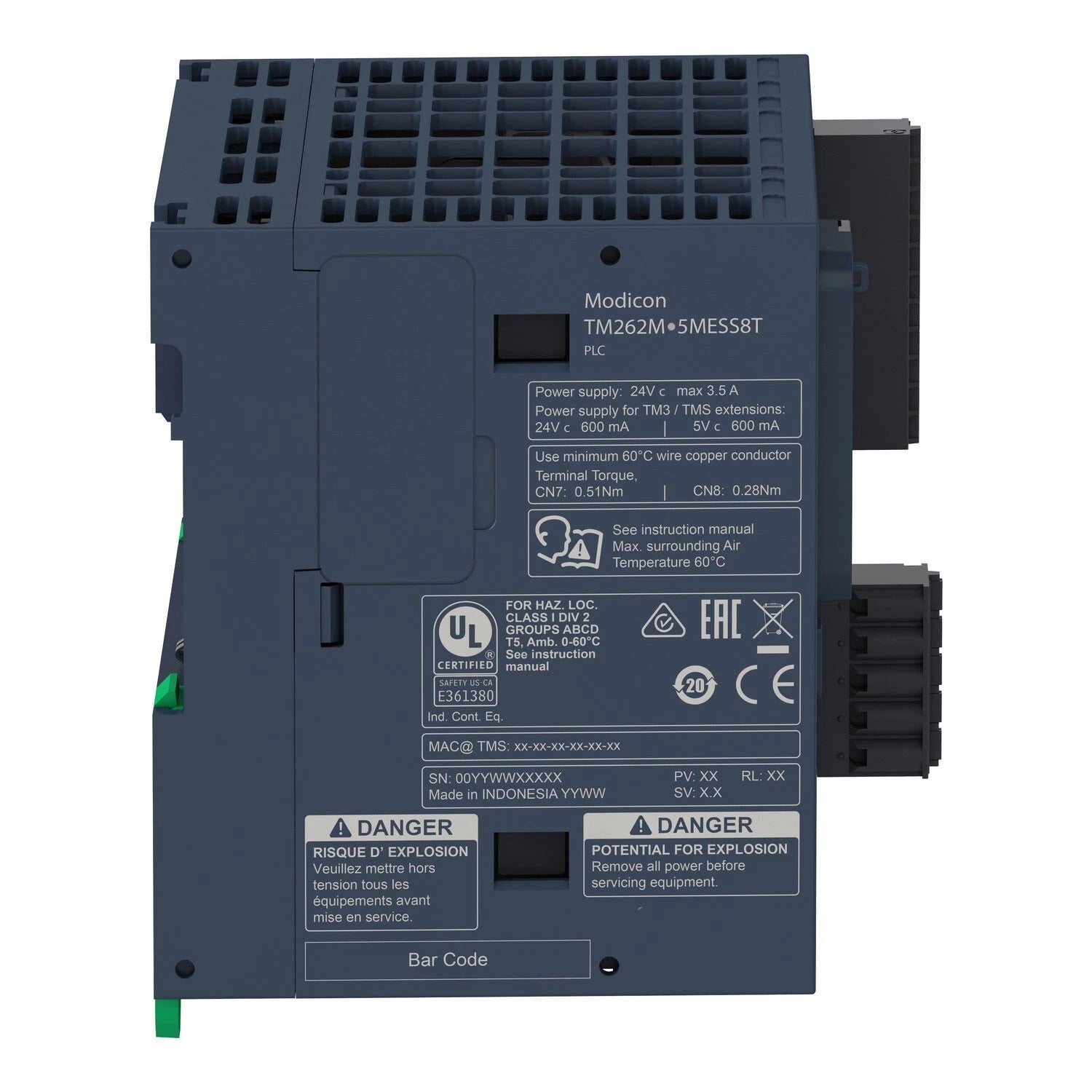

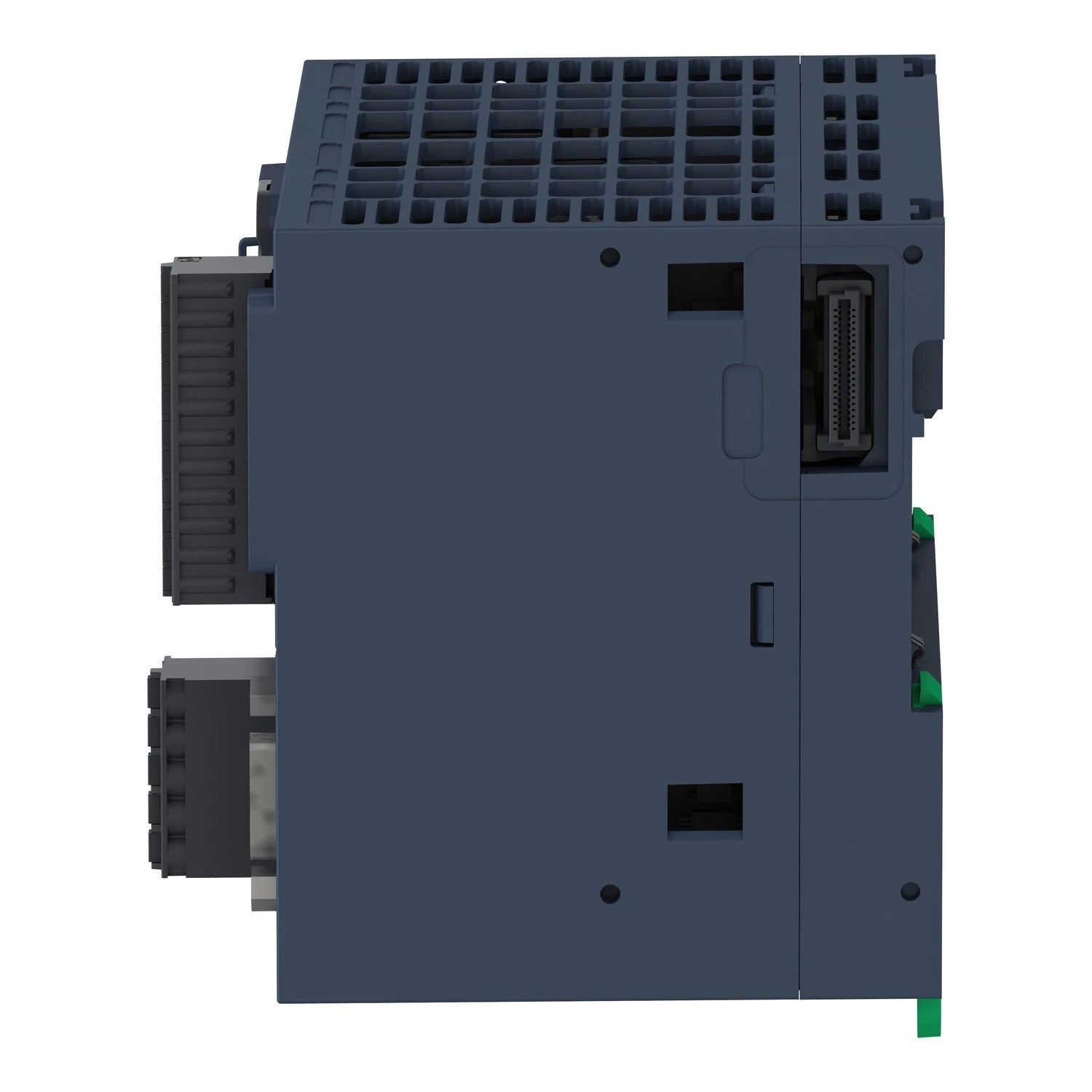

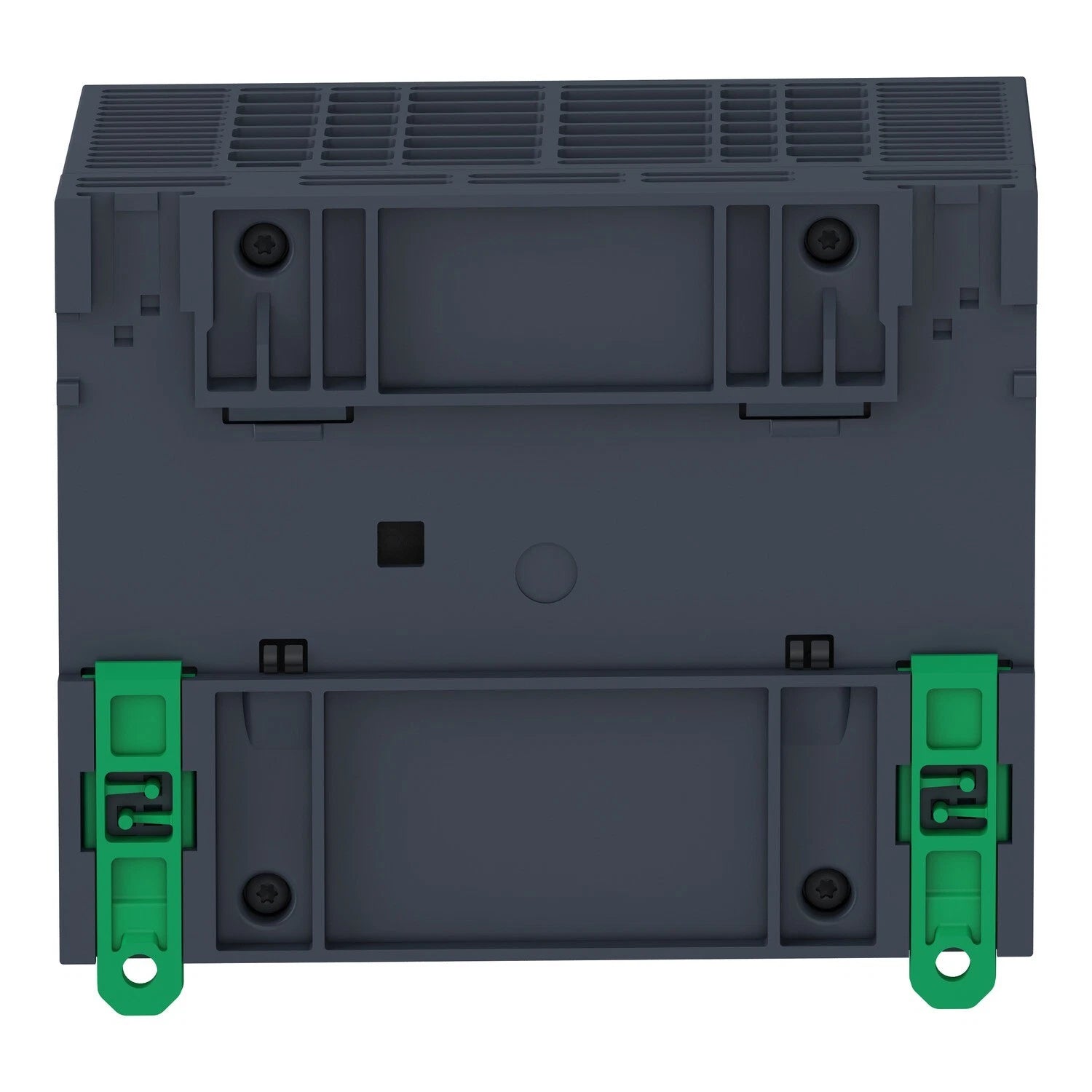

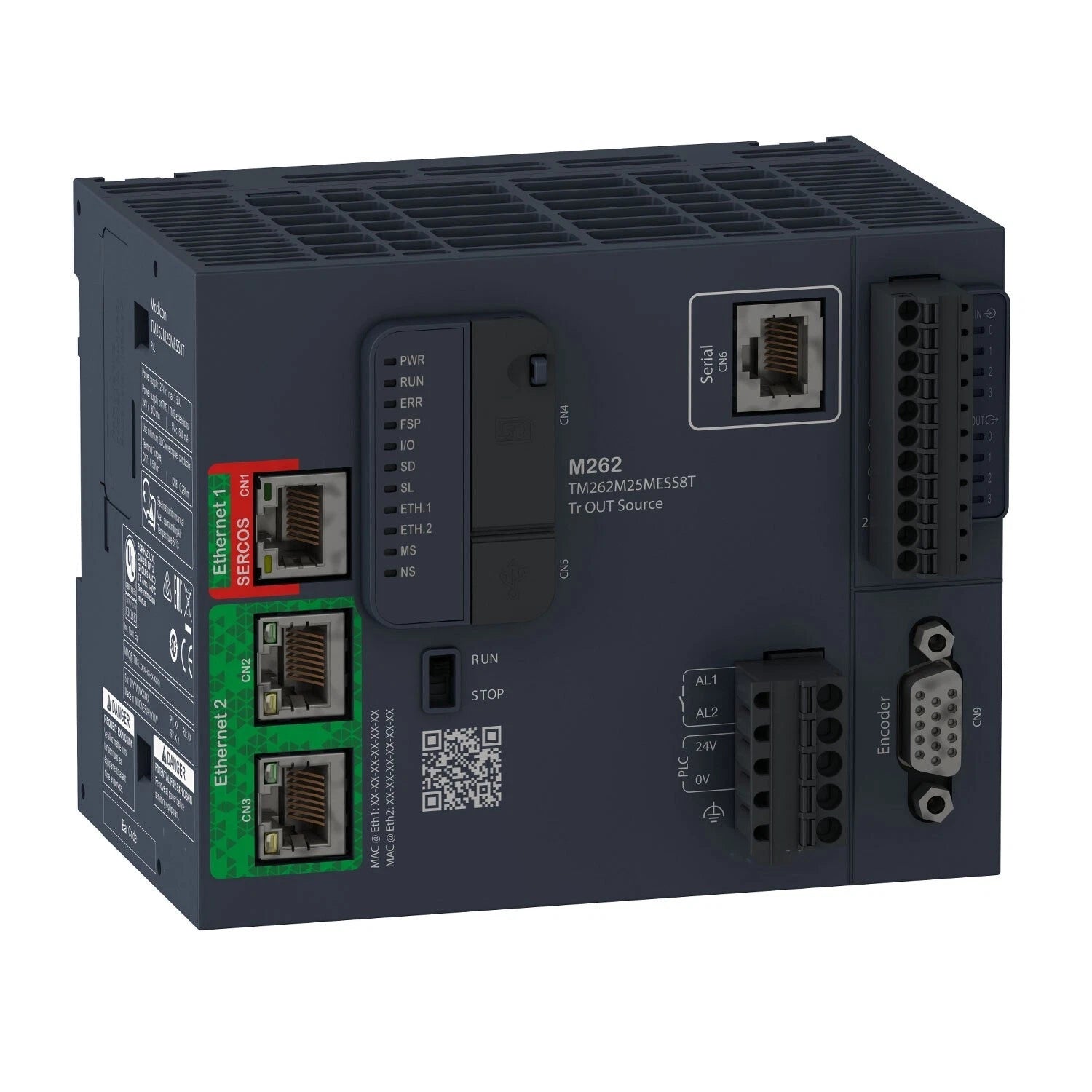

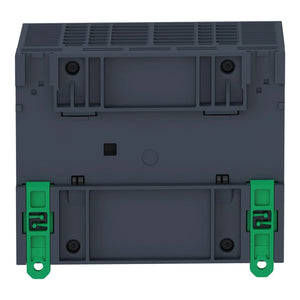

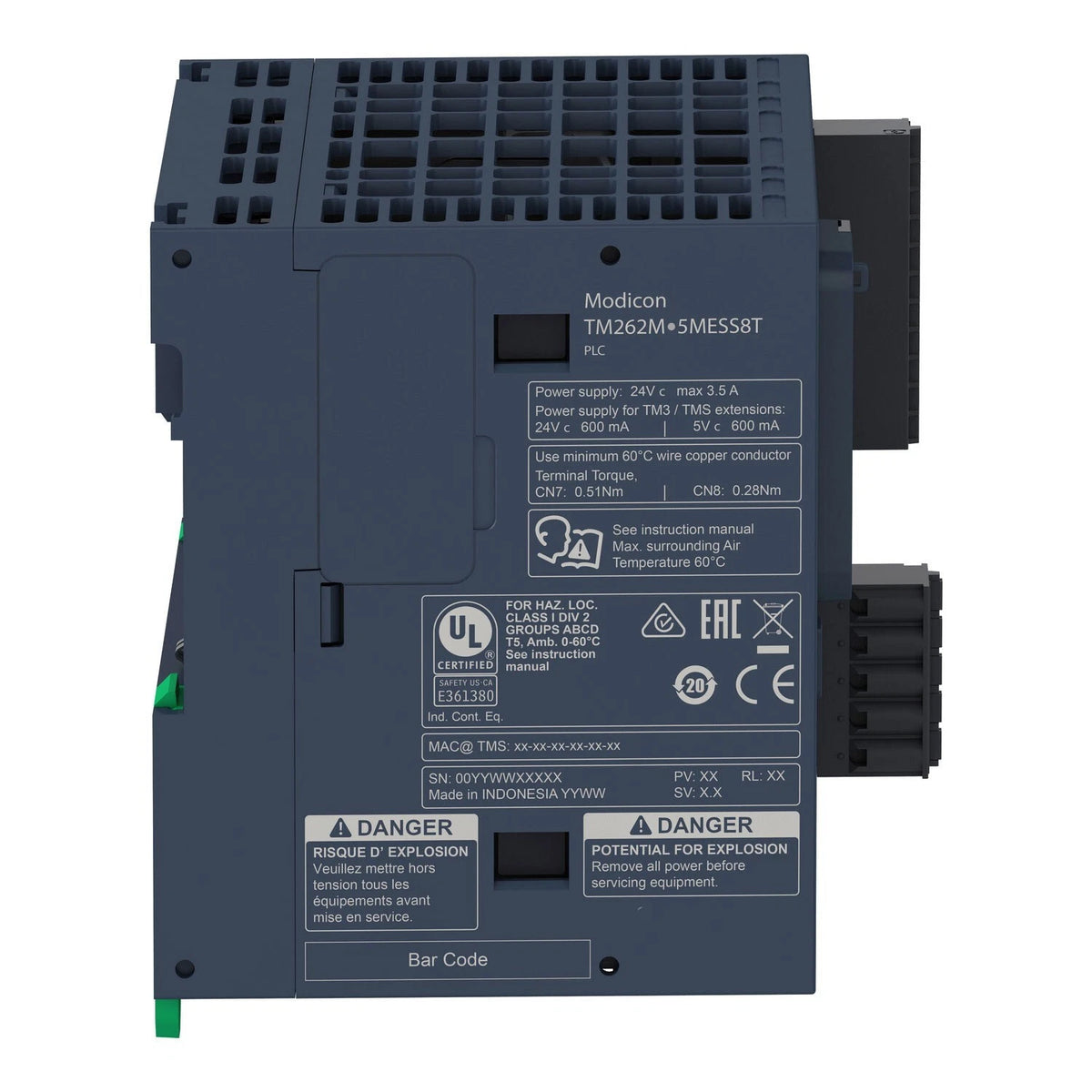

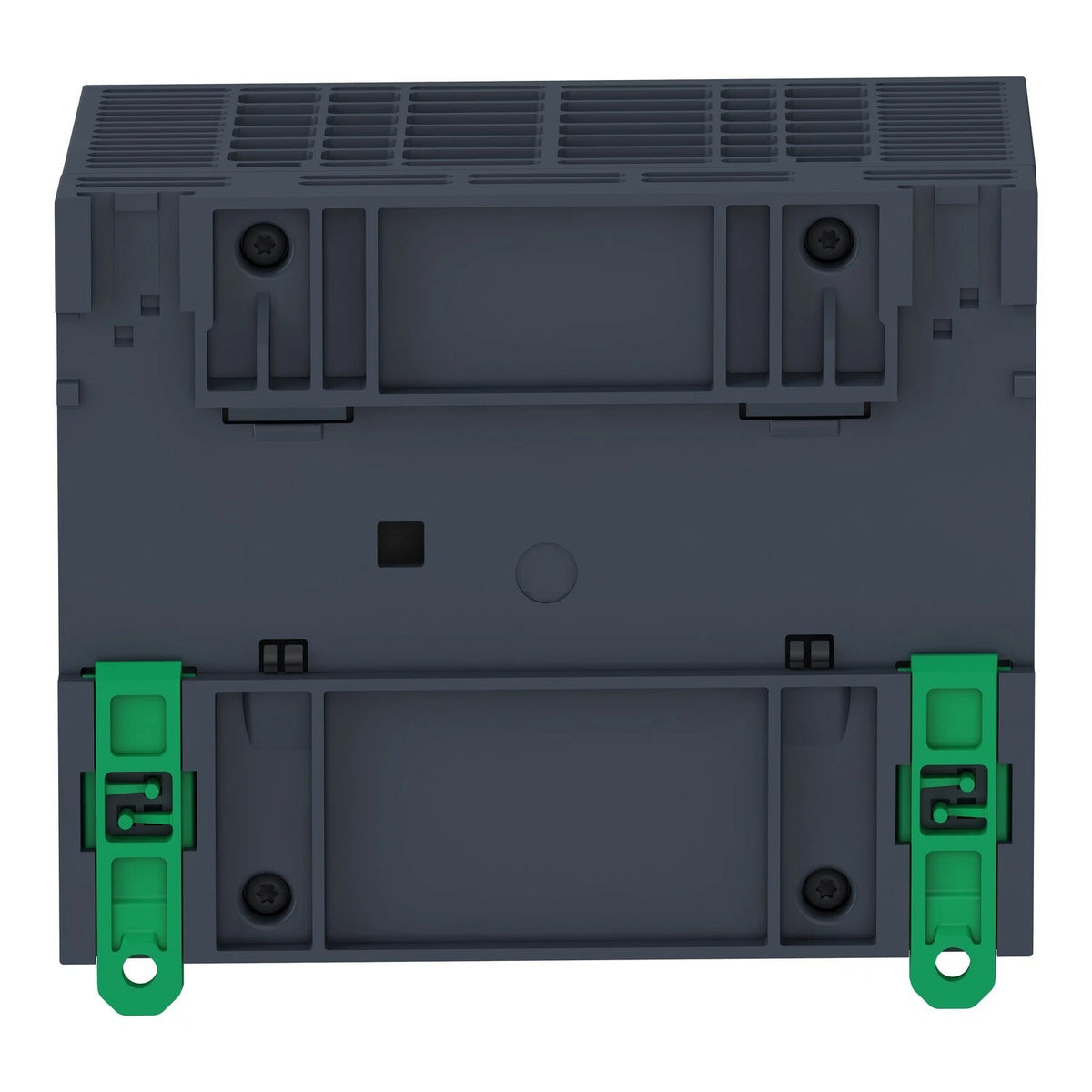

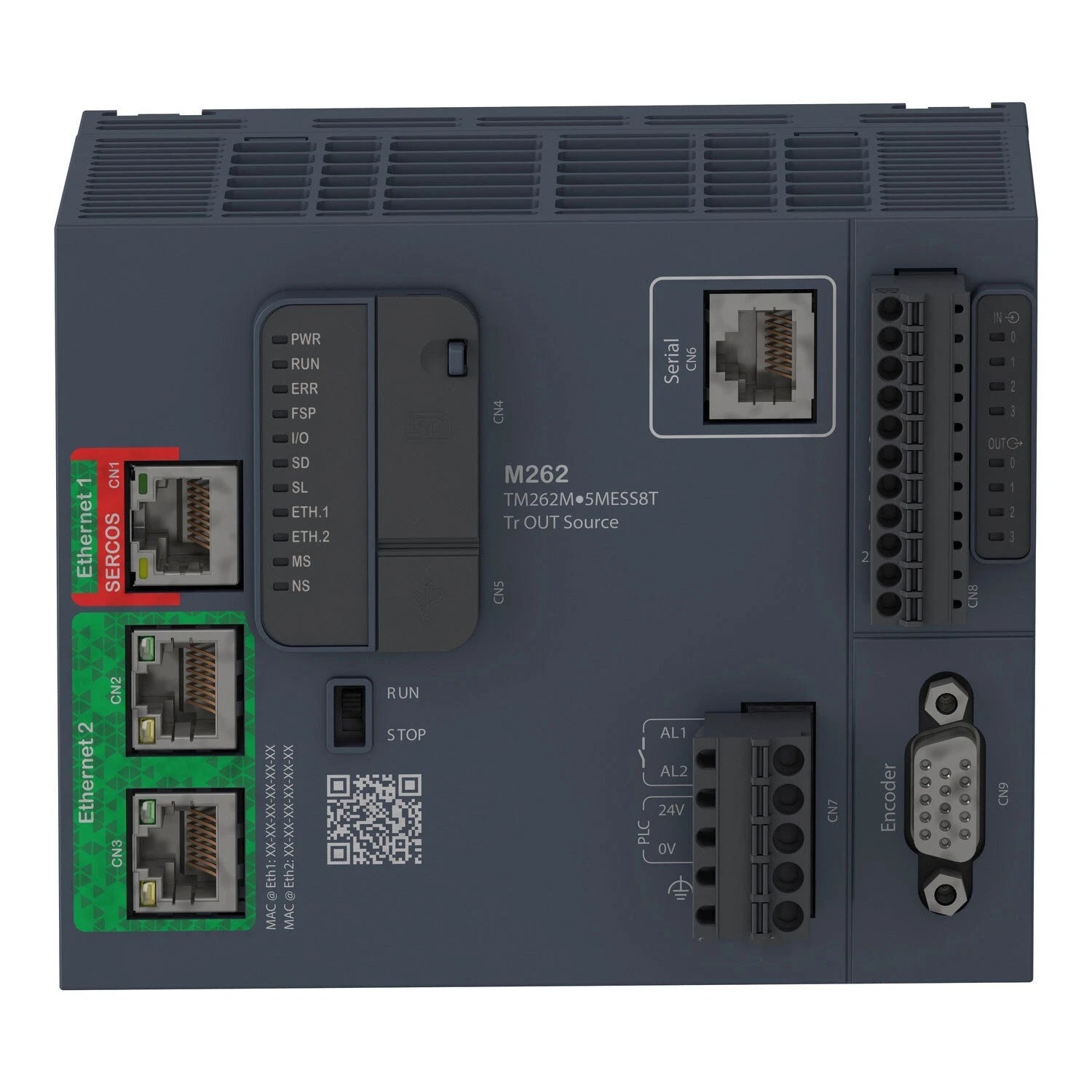

Schneider Electric TM262M25MESS8T Modicon M262 8-Axis Motion Controller
Part #:
TM262M25MESS8T
Manufactured by:
Schneider Electric
- Regular price
- $3,777.00
- Sale price
- $3,777.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Schneider Electric TM262M25MESS8T is a Modicon M262 motion controller combining high-speed logic processing with synch...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: TM262M25MESS8T
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: TM262M25MESS8T
Description / Specifications
Description
Schneider Electric TM262M25MESS8T is a Modicon M262 motion controller designed for high-performance machine automation and synchronized motion applications. It delivers processing performance down to 3 ns per instruction and supports up to 8 synchronized axes with Sercos III and industrial Ethernet connectivity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLCs & Machine Control |
| Part Number | TM262M25MESS8T |
| Subcategory | Programmable Controller |
| Product Type | Logic / Motion Controller |
| Series | Modicon M262 |
| Motion Capacity | Up to 8 Synchronized Axes |
| Processing Performance | 3 ns per Instruction |
| Processor Architecture | Dual-Core |
| Supply Voltage | 24 VDC |
| Discrete Inputs | 4 Fast Inputs |
| Discrete Outputs | 4 Fast Transistor Outputs |
| Output Current | 0.5 A |
| Output Type | Transistor, Sink or Source |
| Program RAM | 32 MB |
| OS / Website RAM | 32 MB |
| System Memory RAM | 192 MB |
| Ethernet Port 1 | 1 × RJ45 |
| Ethernet Port 2 | 2 × RJ45 Switch |
| USB Interface | USB Mini-B |
| Serial Interface | RJ45 |
| Motion Network | Sercos III |
| Industrial Protocols | EtherNet/IP, Modbus TCP, Modbus RTU, Modbus ASCII |
| IIoT Protocols | MQTT, HTTP, HTTPS, OPC UA |
| External Encoder | 5/24 VDC |
| Mounting | DIN Rail or Panel |
| Ingress Protection | IP20 |
| UNSPSC | 32151700 |
| UPC | 606489604212 |
| Weight | 1.48 lbs |
Information About TM262M25MESS8T
Key Features:
- 8-Axis Motion Control: Supports synchronized control of up to 8 motion axes.
- High-Speed Processing: Executes logic instructions in as little as 3 ns.
- Dual-Core CPU: Separates application and communication processing for efficient operation.
- Sercos III: Provides a high-performance real-time communication bus for motion applications.
- Industrial Ethernet: Supports EtherNet/IP and Modbus TCP communication.
- IIoT Connectivity: Supports MQTT, HTTP/HTTPS, OPC UA, and cloud-oriented communication.
- Integrated Fast I/O: Provides 4 fast discrete inputs and 4 fast transistor outputs.
- Flexible Installation: Supports DIN rail or panel mounting for industrial control systems.
The TM262M25MESS8T delivers the motion control, processing, and connectivity functionality required for high-performance industrial machine automation.
Description / Specifications
Description
Schneider Electric TM262M25MESS8T is a Modicon M262 motion controller designed for high-performance machine automation and synchronized motion applications. It delivers processing performance down to 3 ns per instruction and supports up to 8 synchronized axes with Sercos III and industrial Ethernet connectivity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLCs & Machine Control |
| Part Number | TM262M25MESS8T |
| Subcategory | Programmable Controller |
| Product Type | Logic / Motion Controller |
| Series | Modicon M262 |
| Motion Capacity | Up to 8 Synchronized Axes |
| Processing Performance | 3 ns per Instruction |
| Processor Architecture | Dual-Core |
| Supply Voltage | 24 VDC |
| Discrete Inputs | 4 Fast Inputs |
| Discrete Outputs | 4 Fast Transistor Outputs |
| Output Current | 0.5 A |
| Output Type | Transistor, Sink or Source |
| Program RAM | 32 MB |
| OS / Website RAM | 32 MB |
| System Memory RAM | 192 MB |
| Ethernet Port 1 | 1 × RJ45 |
| Ethernet Port 2 | 2 × RJ45 Switch |
| USB Interface | USB Mini-B |
| Serial Interface | RJ45 |
| Motion Network | Sercos III |
| Industrial Protocols | EtherNet/IP, Modbus TCP, Modbus RTU, Modbus ASCII |
| IIoT Protocols | MQTT, HTTP, HTTPS, OPC UA |
| External Encoder | 5/24 VDC |
| Mounting | DIN Rail or Panel |
| Ingress Protection | IP20 |
| UNSPSC | 32151700 |
| UPC | 606489604212 |
| Weight | 1.48 lbs |
Information About TM262M25MESS8T
Key Features:
- 8-Axis Motion Control: Supports synchronized control of up to 8 motion axes.
- High-Speed Processing: Executes logic instructions in as little as 3 ns.
- Dual-Core CPU: Separates application and communication processing for efficient operation.
- Sercos III: Provides a high-performance real-time communication bus for motion applications.
- Industrial Ethernet: Supports EtherNet/IP and Modbus TCP communication.
- IIoT Connectivity: Supports MQTT, HTTP/HTTPS, OPC UA, and cloud-oriented communication.
- Integrated Fast I/O: Provides 4 fast discrete inputs and 4 fast transistor outputs.
- Flexible Installation: Supports DIN rail or panel mounting for industrial control systems.
The TM262M25MESS8T delivers the motion control, processing, and connectivity functionality required for high-performance industrial machine automation.
