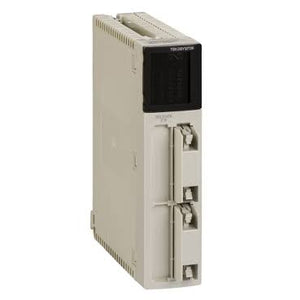

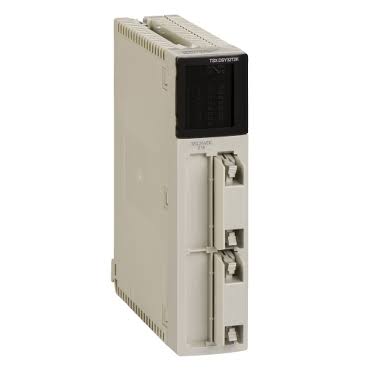

Schneider Electric TSXDSY64T2K Modicon Premium Output Module
- Regular price
- $1,975.00
- Sale price
- $1,975.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TSXDSY64T2K
Description
The Schneider Electric TSXDSY64T2K is a 64-channel discrete transistor output module designed for the Modicon Premium industrial automation platform. It provides 24 V DC positive solid-state outputs for controlling compatible industrial devices, with built-in protection against overloads, short circuits, and output overvoltage.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLC & Automation |
| Part Number | TSXDSY64T2K |
| Subcategory | PLC Digital Output Module |
| Product Range | Modicon Premium |
| Output Type | Solid-State Transistor |
| Number of Outputs | 64 |
| Output Voltage | 24 V DC Positive |
| Operating Voltage Range | 19–30 V DC |
| Current per Channel | 0.1 A |
| Maximum Module Current | 5 A |
| Response Time | 1.2 ms |
| Electrical Connection | 4 HE-10 Connectors |
| Protection | Overvoltage, Overload, Short Circuit |
| Weight | 0.36 kg |
Information About TSXDSY64T2K
The TSXDSY64T2K belongs to Schneider Electric’s Modicon Premium range of PLC I/O modules. It provides 64 discrete outputs with a rated output voltage of 24 V DC, operating within a specified range of 19–30 V DC. Each channel supports up to 0.1 A, while the maximum current for the module is 5 A. Four HE-10 connectors provide the electrical connections, and the module includes automatic overload and short-circuit protection.
Key Features:
-
64 Discrete Outputs: Supports high-density digital output control.
-
24 V DC Operation: Designed for compatible industrial control circuits.
-
Solid-State Outputs: Provides transistor-based switching.
-
Channel Current: Supports up to 0.1 A per output.
-
Module Current Capacity: Maximum total current of 5 A.
-
Overvoltage Protection: Uses a transil diode to help protect outputs.
-
Overload and Short-Circuit Protection: Automatic trip functions help protect the module.
-
Compact PLC Integration: Designed for Modicon Premium automation racks.
The TSXDSY64T2K provides high-density output control and integrated electrical protection for compatible industrial automation systems.
