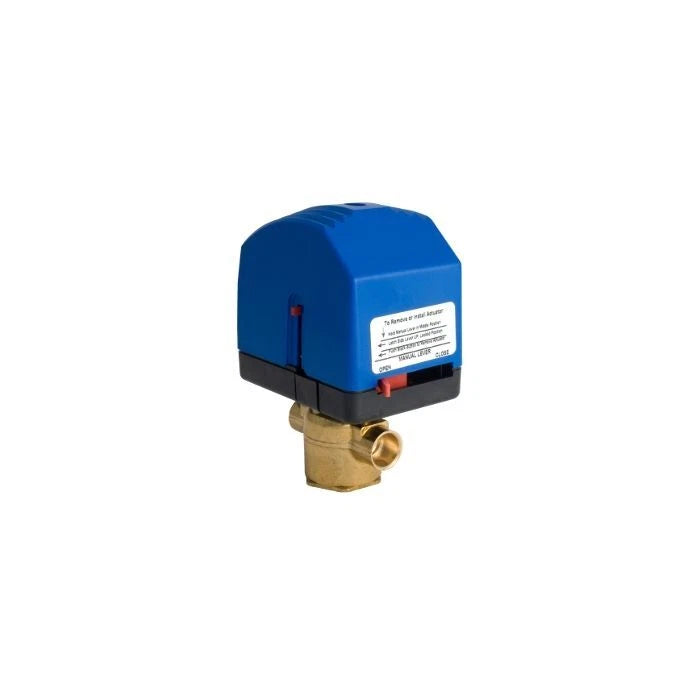

VM2322P23A000 | Schneider Electric 3/4" NPT 2-Way Proportional Control Valve 24VAC
- Regular price
- $519.00
- Sale price
- $519.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VM2322P23A000
Description
The Schneider Electric VM2322P23A000 is a 2-way proportional control valve with a 3/4-inch NPT connection designed for fluid flow regulation in HVAC and building automation systems. It is normally open and paired with a proportional electric actuator operating at 24 VAC with spring return functionality. This assembly is intended for precise control of water or glycol mixtures in non-steam applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | HVAC Control |
| Part Number | VM2322P23A000 |
| Subcategory | Control Valves |
| Valve Pattern | 2-way |
| Valve Size | 3/4 inch |
| End Fitting | NPT |
| Flow Coefficient (Cv) | 2.0 |
| Valve Position | Normally Open |
| Fluid Compatibility | Water, Glycol 25–60% (no steam) |
| Actuator Type | Electric |
| Control Type | Proportional |
| Control Signal Range | 0–10 VDC, 0–5 VDC, 4–20 mA DC, 5–10 VDC |
| Power Input | 24 VAC |
| Loss of Power Action | Spring return |
| Mechanical Movement | Rotary |
| Protection Rating | NEMA 1 |
| Weight | 4.6 lbs |
Information About VM2322P23A000
The VM2322P23A000 is a valve and actuator assembly engineered by Schneider Electric for modulating fluid control applications. The valve body features a 3/4-inch NPT end fitting and a Cv rating of 2.0, supporting controlled flow in hydronic systems. It is compatible with water and glycol solutions ranging from 25% to 60% concentration. The integrated AP23A000 electric actuator supports multiple proportional control signal ranges and provides spring return operation upon power loss for fail-safe positioning.
Key Features:
- 2-Way Proportional Control Valve: Designed for modulating fluid flow in control systems.
- Normally Open Configuration: Allows default open position during unpowered conditions.
- 3/4-Inch NPT Connection: Standard threaded fitting for HVAC and hydronic installations.
- Proportional Electric Actuator: Supports multiple analog control signal ranges.
- Spring Return on Power Loss: Ensures defined fail-safe operation.
- Hydronic Fluid Compatibility: Rated for water and glycol mixtures without steam.
- NEMA 1 Protection Rating: Suitable for indoor mechanical and control environments.
The VM2322P23A000 delivers the reliability and precision required for proportional fluid control in HVAC and building automation applications.
