VPM02D20AA00 | Schneider Electric PacDrive PS-5 Power Supply Module 680 VDC Output, 220–480 VAC Input
- Regular price
- $11,999.00
- Sale price
- $11,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VPM02D20AA00
Description

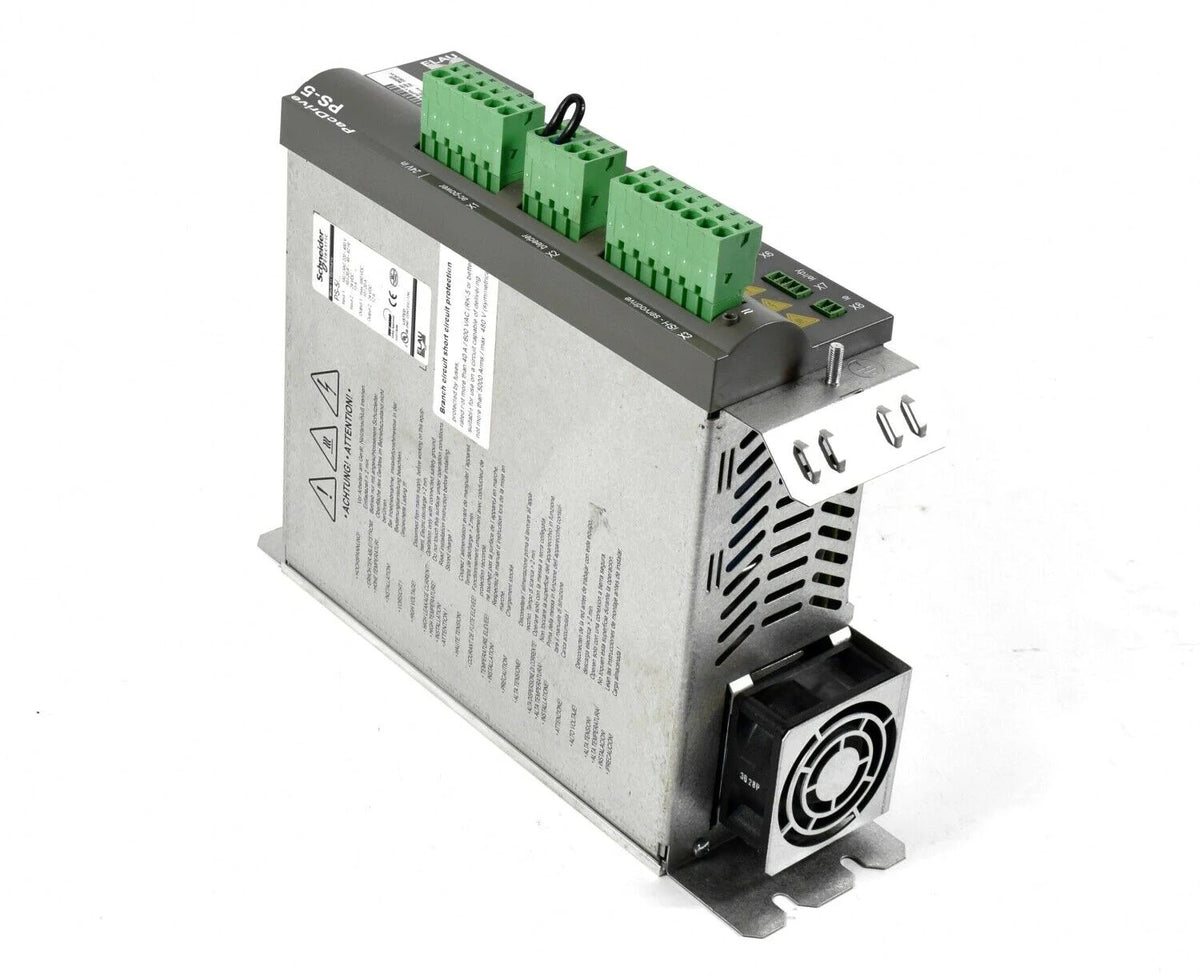

The Schneider Electric VPM02D20AA00 is a PacDrive PS-5 power supply module designed to provide regulated high-voltage DC and auxiliary 24 VDC outputs for industrial automation systems. This unit converts multi-phase AC input power into stable DC power for servo drive and motion control applications. The VPM02D20AA00 supports high-current performance and is built for integration into Schneider Electric PacDrive platforms.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Power Supplies |
| Part Number | VPM02D20AA00 |
| Subcategory | Power Supply |
| Series | PacDrive PS-5 |
| Module Type | Power Supply Module |
| Input 1 Voltage Rating | 220–480 VAC (1/3 Phase) |
| Input 1 Current | 10/20 A |
| Input 1 Frequency | 48–62 Hz |
| Input 2 Voltage | 24 VDC |
| Input 2 Current | 13 A |
| Output 1 Voltage Rating | 680 VDC (Max) |
| Output 1 Current | 10/20 A |
| Output 2 Voltage | 24 VDC |
| Output 2 Current | 12 A |
| Ambient Temperature Range | 5–45 °C |
| Protection Class | IP20 |
| Dimensions | 310 × 225 × 83 mm |
| Weight | 11.00 lbs |
Information About VPM02D20AA00
The VPM02D20AA00 is a discontinued Schneider Electric PacDrive PS-5 series power supply module engineered for industrial drive and motion control installations. It features robust electrical conversion capability, supporting both single-phase and three-phase AC input ranges up to 480 VAC for flexible system compatibility. The module provides a high-voltage 680 VDC output for drive bus operation along with a secondary regulated 24 VDC supply for control circuits. Designed with IP20 protection and operation in controlled ambient environments, it integrates directly into PacDrive automation architectures requiring reliable DC power distribution.
Key Features:
-
High-Voltage DC Output Capability: Provides up to 680 VDC maximum for powering servo drive DC bus systems.
-
Dual Output Support: Supplies both high-voltage DC and auxiliary 24 VDC for control and peripheral circuits.
-
Wide AC Input Range: Accepts 220–480 VAC input in single-phase or three-phase configurations.
-
High Current Performance: Supports 10/20 A output capacity for demanding industrial power applications.
-
Secondary 24 VDC Input Channel: Includes additional 24 VDC input rated at 13 A for system supply redundancy.
-
PacDrive PS-5 Series Integration: Designed specifically for Schneider Electric Elau PacDrive automation platforms.
-
Industrial Protection Rating: Built with IP20 enclosure protection for cabinet-mounted installations.
-
Controlled Temperature Operation: Rated for ambient operating environments from 5 to 45 °C.
The VPM02D20AA00 delivers the reliability and precision required for industrial motion control power distribution and drive system operation.
