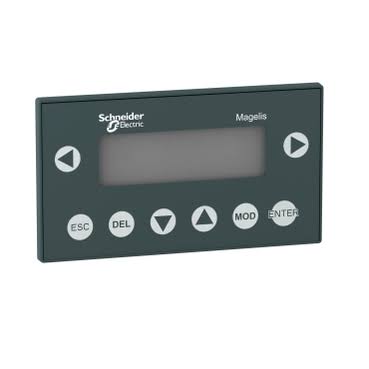

Schneider Electric XBTN410 Magelis 24V Operator Interface Terminal

Description

The Schneider Electric XBTN410 Magelis operator interface is a compact text display with a green backlit LCD and integrated keypad for industrial machine monitoring and control. It features a 122 × 32 pixel display, 24 V DC power supply, and RS-232C/RS-485 serial communication. The unit supports 512 KB of flash memory for configured applications and messages.

Technical Specifications

Information About XBTN410

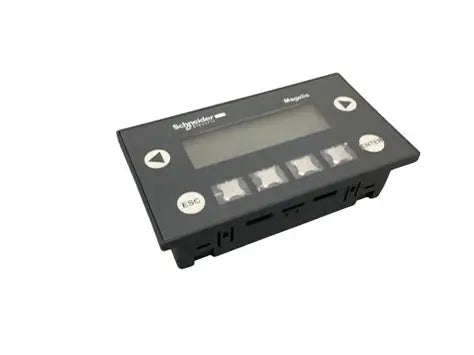

The XBTN410 belongs to Schneider Electric’s Magelis XBTN range of compact operator interface terminals. It features eight keys, including four fixed keys and four customizable keys. The terminal supports up to 200 application pages and 256 alarm pages. It is configured using Vijeo Designer Lite software and communicates with compatible automation equipment through an RS-232C/RS-485 serial connection.

Key Features:

• Green LCD Display: 122 × 32 pixel matrix display for text and machine information.

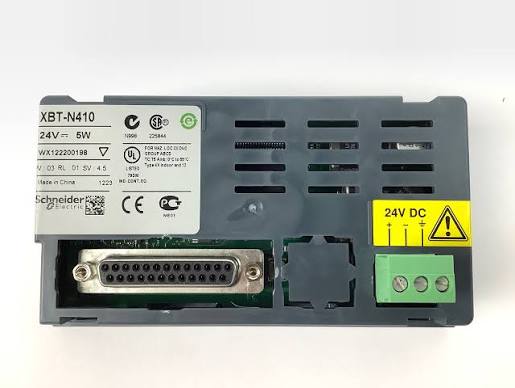

• 24 V DC Power Supply: Operates within an 18–30 V DC supply range.

• Integrated Keypad: Eight keys, including four fixed and four customizable keys.

• Serial Communication: Supports RS-232C and RS-485 interfaces.

• Application Memory: Includes 512 KB of flash memory.

• Alarm Management: Supports up to 256 alarm pages.

• Application Pages: Stores up to 200 application pages.

• Configuration Software: Compatible with Vijeo Designer Lite.

The XBTN410 provides compact operator control and text-based machine monitoring for compatible industrial automation systems.
