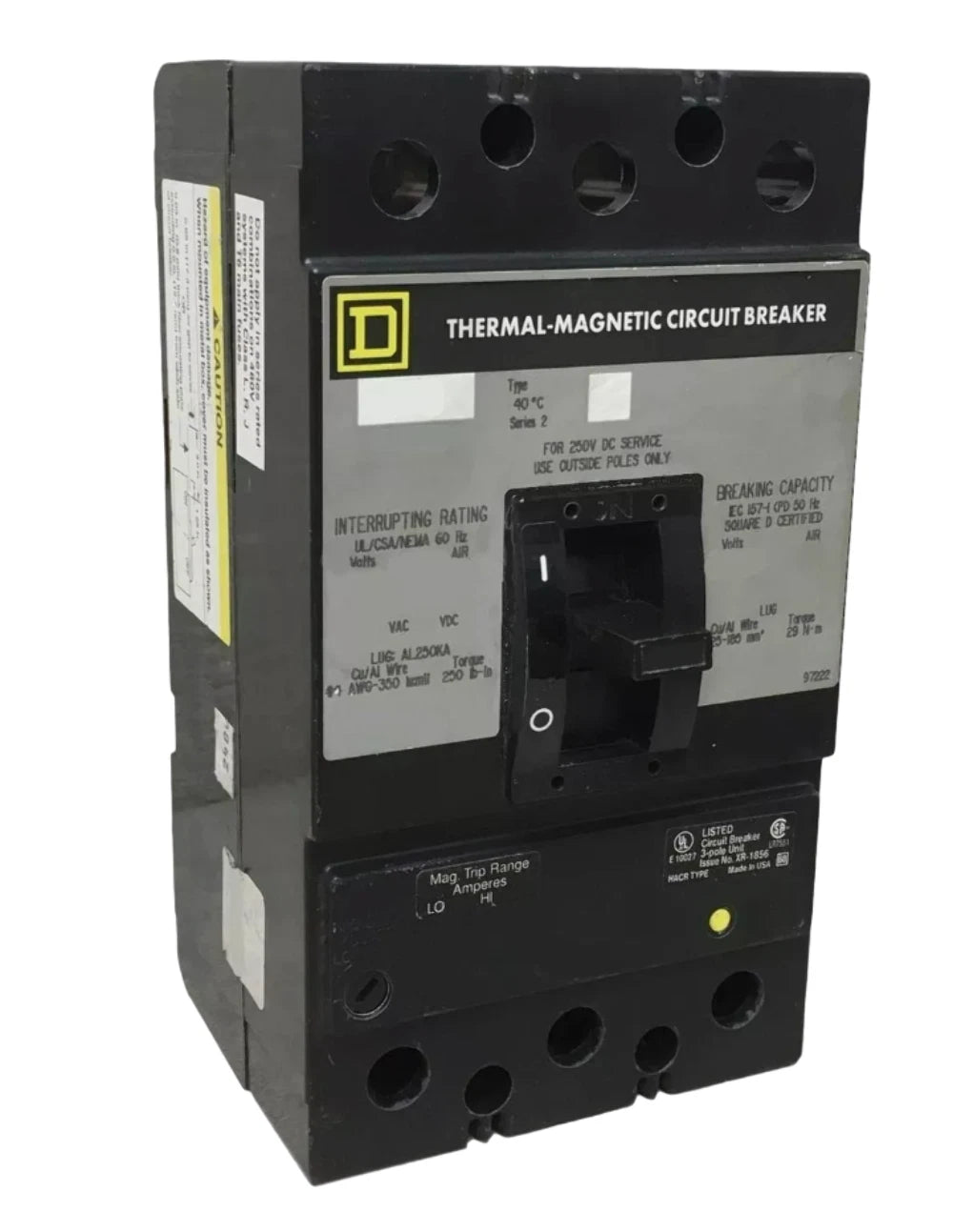

KHL3622522DC1625 | Schneider Electric Three Pole Thermal Magnetic Molded Case Circuit Breaker 225A 600V
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KHL3622522DC1625
Description
The Schneider Electric KHL3622522DC1625 is a three pole molded case circuit breaker designed for dependable circuit protection in commercial and industrial power systems. It combines a thermal magnetic trip unit with high interrupting capability to support controlled protection of three-phase electrical loads.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Protection |
| Part Number | KHL3622522DC1625 |
| Subcategory | Molded Case Circuit Breakers |
| Series | KHL |
| Frame Type | KHL |
| Amperage Rating | 225 A |
| Voltage Rating (AC) | 600 VAC |
| Voltage Rating (DC) | 600 VDC |
| Number of Poles | 3 |
| Phase | 3 Phase |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Mounting Style | Feed-Thru |
| Connection Type | Lugs on Both Ends |
| Interrupting Rating | 35 kA @ 480 V AC |
| Alternate AIC Rating | 20 kA @ 500 V |
| Certifications | UL 489, UL 1066 |
| Application | Commercial / Industrial |
| Weight | 32.10 lbs |
Information About KHL3622522DC1625
The KHL3622522DC1625 is part of the Schneider Electric Square D KHL Series, developed for heavy-duty molded case circuit breaker applications requiring high reliability and protection accuracy. This breaker supports three-phase electrical systems with a continuous current rating of 225 amps and voltage ratings up to 600 volts AC and DC. It incorporates a thermal magnetic trip unit that delivers coordinated protection against overloads and short circuits through long-time and instantaneous response mechanisms. The feed-through mounting design with lugs on both ends allows secure installation in panelboards and switchgear used in industrial and commercial power distribution environments.
Key Features
- Thermal Magnetic Protection System: Utilizes a precision thermal element to protect against sustained overload conditions while an instantaneous magnetic element responds rapidly to short-circuit faults, ensuring comprehensive circuit protection.
- High Interrupting Capacity: Rated to interrupt up to 35 kA at 480 VAC, allowing the breaker to safely clear high fault currents without damage to downstream equipment.
- Three Pole, Three Phase Design: Provides balanced protection across all phases, supporting stable operation in three-phase power distribution networks.
- Feed-Thru Mounting Configuration: Designed with line and load lugs on both ends to support straight-through power flow, simplifying wiring layouts in panelboards and switchgear assemblies.
- Dual AC and DC Voltage Capability: Rated for operation at 600 VAC and 600 VDC, expanding usability across a wide range of power system designs.
- KHL Heavy-Duty Frame Construction: Engineered for mechanical strength and thermal stability, supporting continuous operation in demanding industrial environments.
- UL Certified Safety Compliance: Listed to UL 489 and UL 1066 standards, confirming compliance with recognized safety and performance requirements for molded case circuit breakers.
The KHL3622522DC1625 delivers the reliability and precision required for protecting high-current three-phase circuits in commercial and industrial power distribution systems.
Description
The Schneider Electric KHL3622522DC1625 is a three pole molded case circuit breaker designed for dependable circuit protection in commercial and industrial power systems. It combines a thermal magnetic trip unit with high interrupting capability to support controlled protection of three-phase electrical loads.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Protection |
| Part Number | KHL3622522DC1625 |
| Subcategory | Molded Case Circuit Breakers |
| Series | KHL |
| Frame Type | KHL |
| Amperage Rating | 225 A |
| Voltage Rating (AC) | 600 VAC |
| Voltage Rating (DC) | 600 VDC |
| Number of Poles | 3 |
| Phase | 3 Phase |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Mounting Style | Feed-Thru |
| Connection Type | Lugs on Both Ends |
| Interrupting Rating | 35 kA @ 480 V AC |
| Alternate AIC Rating | 20 kA @ 500 V |
| Certifications | UL 489, UL 1066 |
| Application | Commercial / Industrial |
| Weight | 32.10 lbs |
Information About KHL3622522DC1625
The KHL3622522DC1625 is part of the Schneider Electric Square D KHL Series, developed for heavy-duty molded case circuit breaker applications requiring high reliability and protection accuracy. This breaker supports three-phase electrical systems with a continuous current rating of 225 amps and voltage ratings up to 600 volts AC and DC. It incorporates a thermal magnetic trip unit that delivers coordinated protection against overloads and short circuits through long-time and instantaneous response mechanisms. The feed-through mounting design with lugs on both ends allows secure installation in panelboards and switchgear used in industrial and commercial power distribution environments.
Key Features
- Thermal Magnetic Protection System: Utilizes a precision thermal element to protect against sustained overload conditions while an instantaneous magnetic element responds rapidly to short-circuit faults, ensuring comprehensive circuit protection.
- High Interrupting Capacity: Rated to interrupt up to 35 kA at 480 VAC, allowing the breaker to safely clear high fault currents without damage to downstream equipment.
- Three Pole, Three Phase Design: Provides balanced protection across all phases, supporting stable operation in three-phase power distribution networks.
- Feed-Thru Mounting Configuration: Designed with line and load lugs on both ends to support straight-through power flow, simplifying wiring layouts in panelboards and switchgear assemblies.
- Dual AC and DC Voltage Capability: Rated for operation at 600 VAC and 600 VDC, expanding usability across a wide range of power system designs.
- KHL Heavy-Duty Frame Construction: Engineered for mechanical strength and thermal stability, supporting continuous operation in demanding industrial environments.
- UL Certified Safety Compliance: Listed to UL 489 and UL 1066 standards, confirming compliance with recognized safety and performance requirements for molded case circuit breakers.
The KHL3622522DC1625 delivers the reliability and precision required for protecting high-current three-phase circuits in commercial and industrial power distribution systems.
