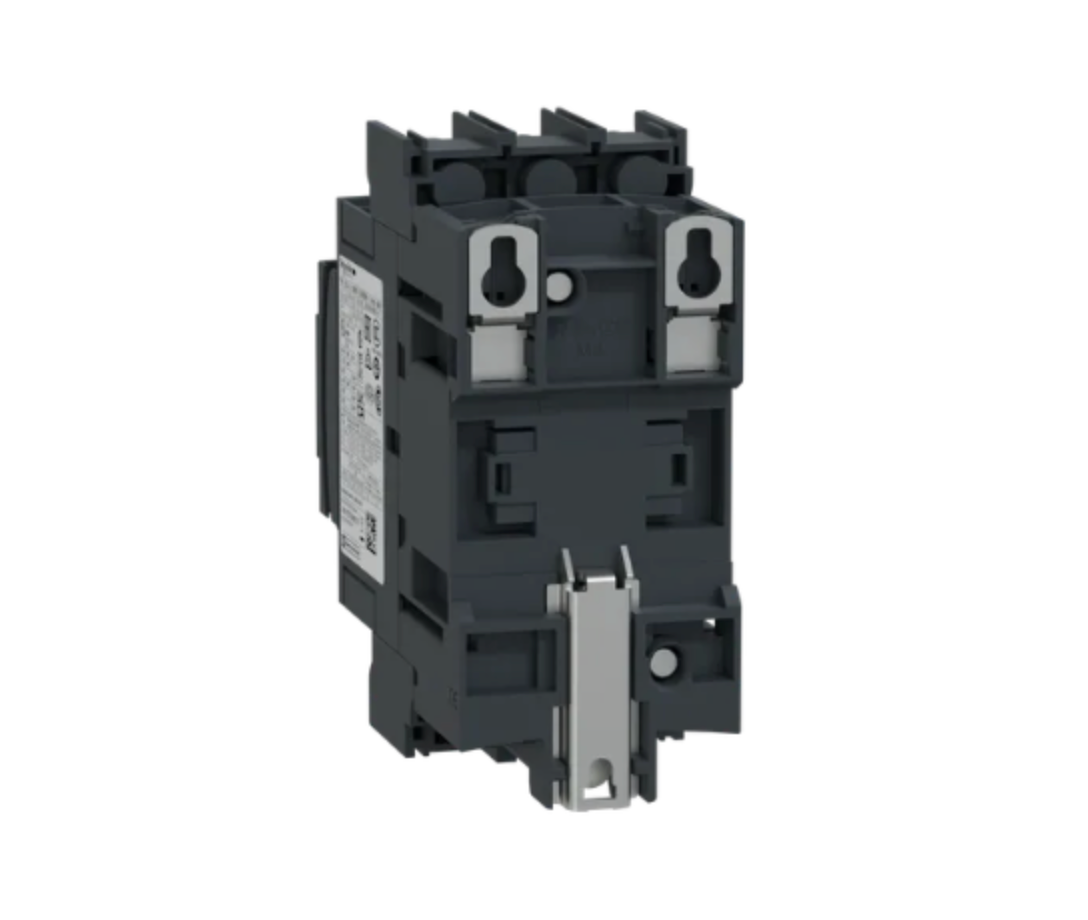

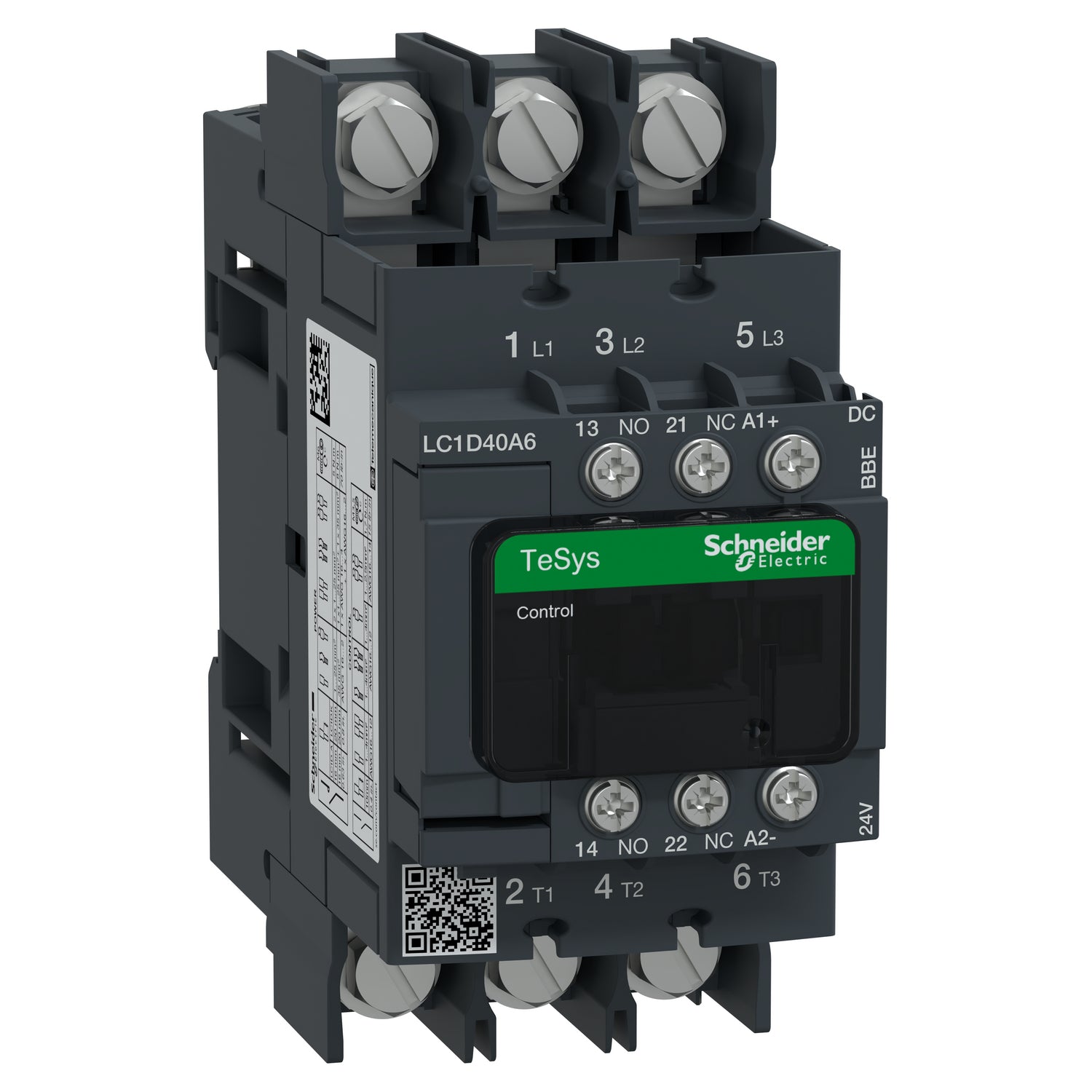

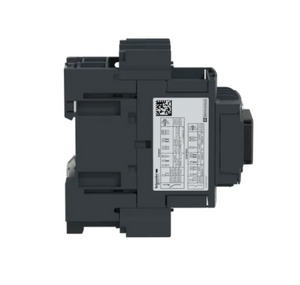

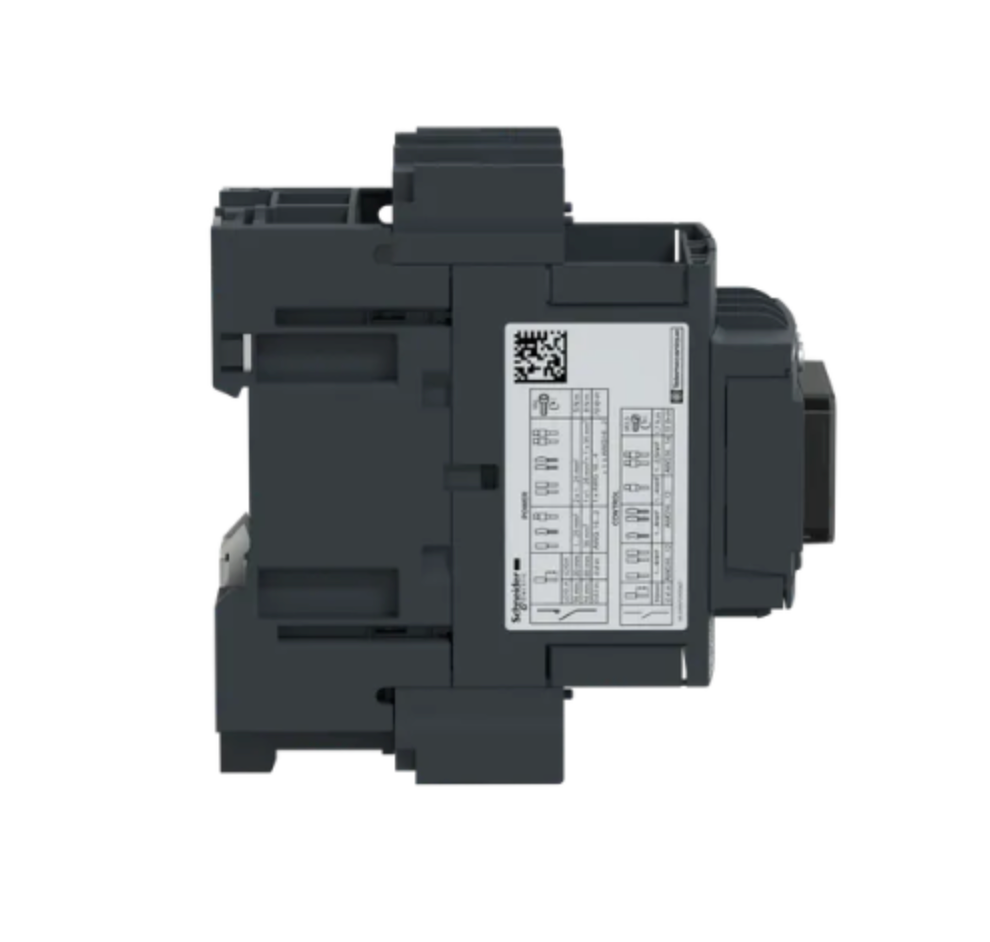

Schneider Electric LC1D40A6BBE IEC Contactor 40A 24V DC Coil TeSys Deca Advanced
- Regular price
- $568.00
- Sale price
- $568.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1D40A6BBE
Description
The Schneider Electric LC1D40A6BBE is a TeSys Deca contactor designed for controlling three-phase motors and resistive loads in industrial systems. It supports up to 40A AC-3 applications and 18.5 kW at 400V, using a low-consumption 24V DC electronic coil for efficient control. This contactor provides reliable switching performance and is optimized for integration with PLC-based control circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1D40A6BBE |
| Subcategory | IEC Contactors |
| Series | TeSys Deca Advanced |
| Product Type | Contactor |
| Poles | 3P (3 NO) |
| Rated Operational Current | 40 A (AC-3) |
| Motor Power Rating | 18.5 kW at 400V AC |
| Rated Operational Voltage | Up to 690 V AC |
| Control Voltage | 24 V DC |
| Auxiliary Contacts | 1 NO + 1 NC |
| Mounting Type | DIN Rail or Panel Mount |
| Terminal Type | Ring-lug screw terminals |
| Mechanical Durability | 10 million cycles |
| Electrical Durability | Up to 2 million cycles (AC-3) |
| Protection Rating | IP20 (front face) |
| Operating Temperature Range | -40°C to 60°C (up to 70°C with derating) |
| Dimensions (H x W x D) | 122 x 55 x 120 mm |
| Weight | 0.992 kg |
Information About LC1D40A6BBE
The LC1D40A6BBE is part of Schneider Electric’s TeSys Deca Advanced series, engineered for motor control and power switching in industrial environments. It features a 3-pole (3NO) configuration with built-in auxiliary contacts (1NO + 1NC), including a mirror contact suitable for safety-related circuits. The unit incorporates an electronic 24V DC coil with low power consumption, allowing direct interfacing with PLC outputs and reducing control energy requirements. Designed for flexible installation, it uses ring-lug screw terminals and supports DIN rail or panel mounting, while maintaining compliance with IEC, UL, CSA, and other international standards.
Key Features:
- TeSys Deca Advanced Design: Built for industrial motor control with enhanced electrical durability and compact footprint
- 40A AC-3 Rating: Supports motor loads up to 18.5 kW at 400V for demanding switching applications
- 24V DC Electronic Coil: Low power consumption coil suitable for direct PLC control integration
- 3-Pole Configuration: Provides 3 normally open power contacts for three-phase motor control
- Integrated Auxiliary Contacts: Includes 1NO + 1NC auxiliary contacts with mirror-certified NC for safety circuits
- Ring-Lug Terminal Connections: Ensures secure and reliable wiring for both power and control circuits
- High Mechanical Durability: Rated up to 10 million mechanical cycles for long operational life
- Flexible Mounting Options: Supports DIN rail or panel mounting for control cabinet installation
The LC1D40A6BBE delivers the reliability and precision required for motor control and automated industrial switching systems.
