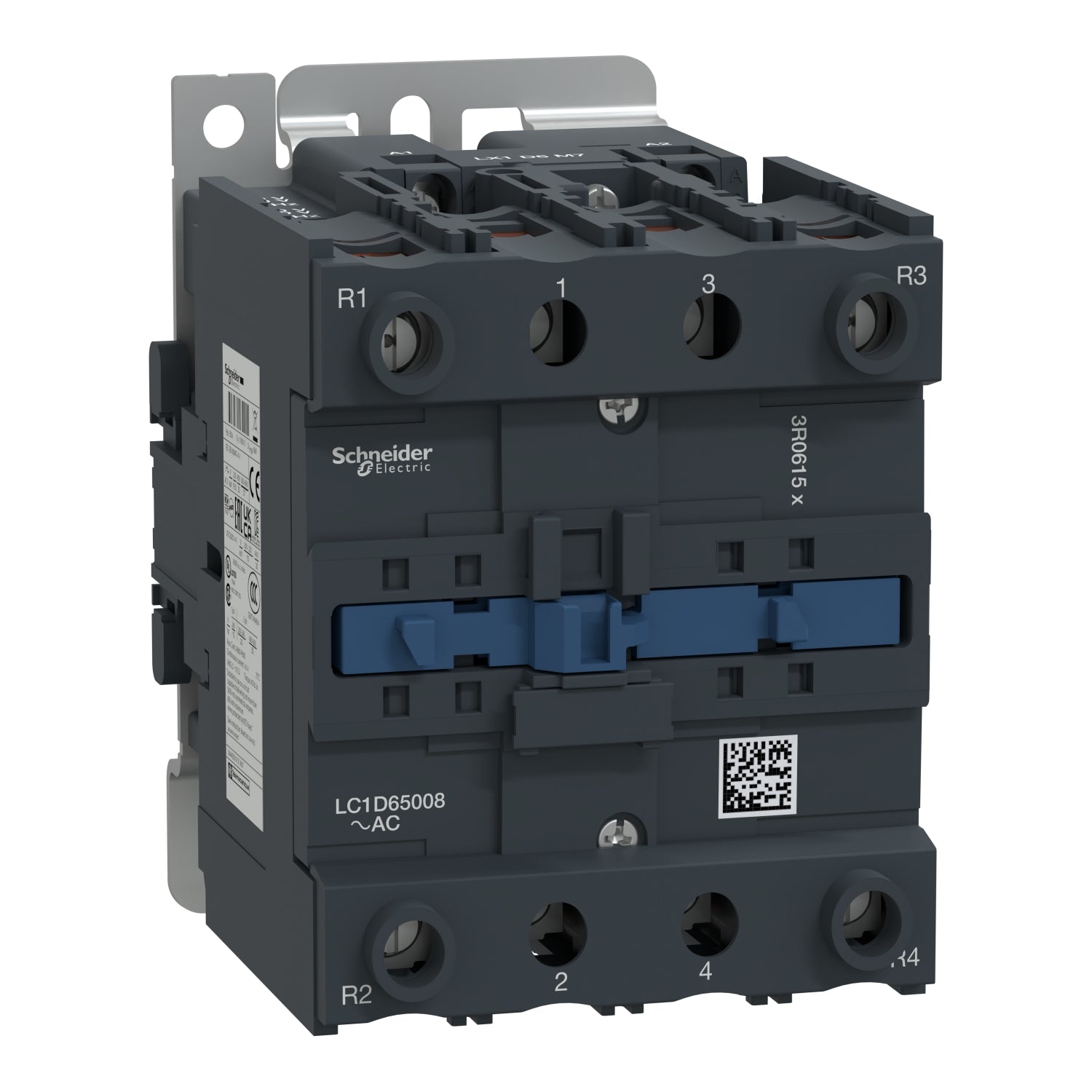

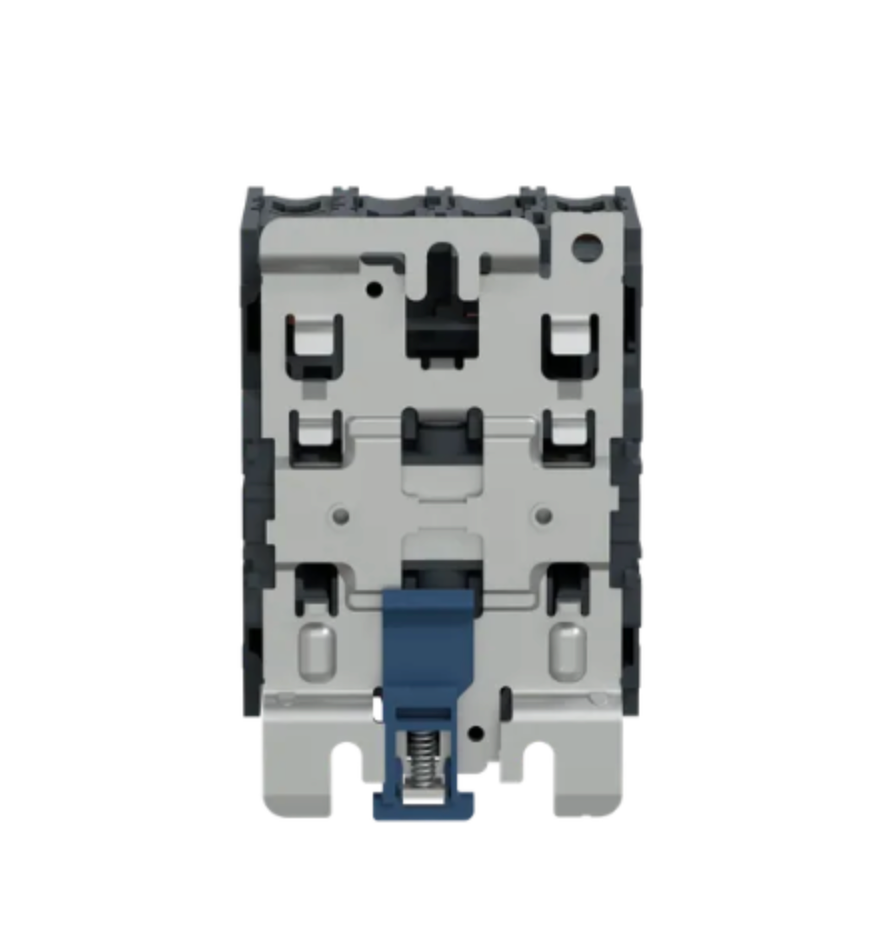

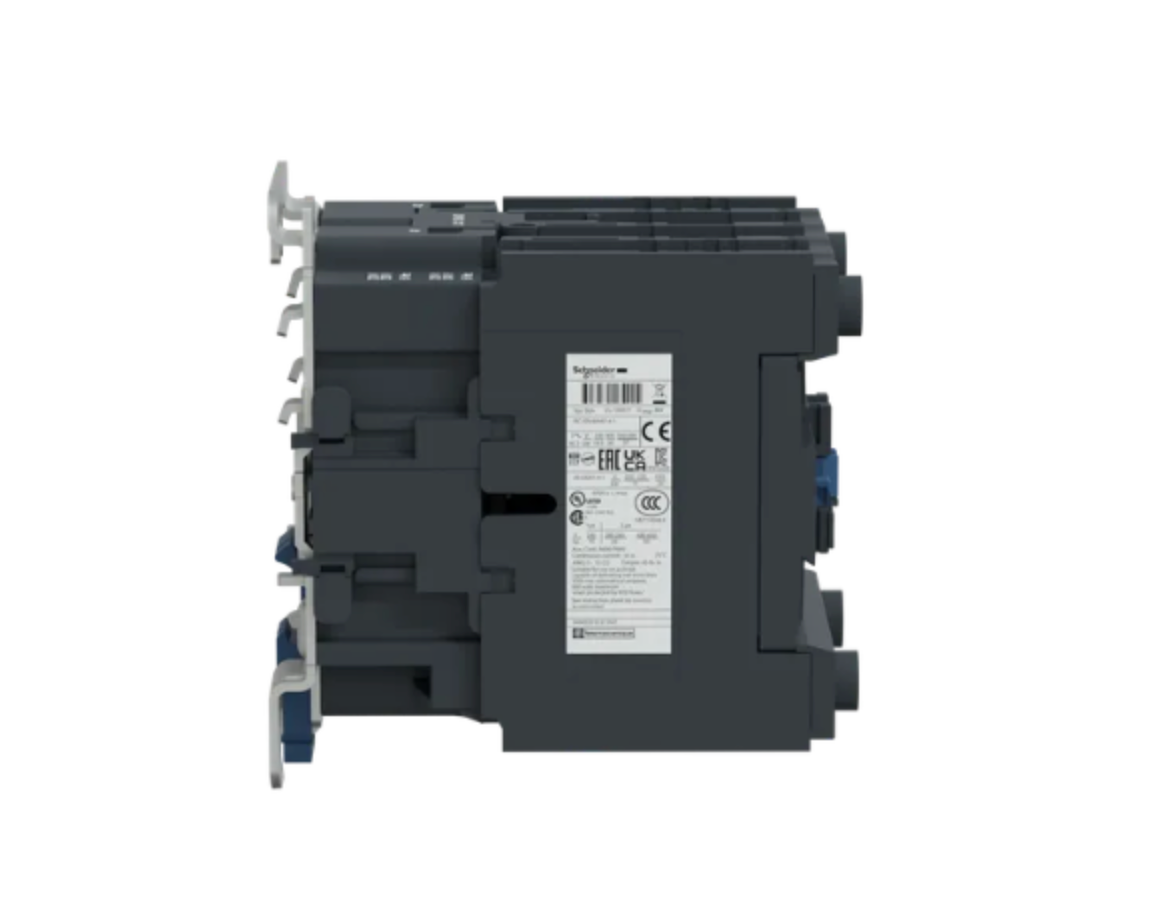

Schneider Electric LC1D65008F7 4-Pole IEC Contactor 80A 110V AC Coil TeSys Deca
- Regular price
- $568.00
- Sale price
- $568.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1D65008F7
Description
The Schneider Electric LC1D65008F7 is a TeSys Deca IEC contactor designed for switching non-inductive loads up to 80A in AC-1 applications. It uses a 4-pole, 2NO+2NC contact arrangement with a 110V AC 50/60Hz coil and is suited for industrial control panels, power switching assemblies, and motor starter configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1D65008F7 |
| Subcategory | IEC Contactors |
| Series | TeSys Deca |
| Product Type | Nonreversing IEC contactor |
| Contactor Application | Resistive load |
| Utilization Category | AC-1 |
| Poles | 4P |
| Contact Configuration | 2 NO + 2 NC |
| Rated Operational Current | 80 A AC-1 |
| Rated Operational Voltage | Up to 690 V AC, 25...400 Hz |
| Control Coil Voltage | 110 V AC 50/60 Hz |
| Terminal Type | Power screw terminals; control screw clamp terminals |
| Mounting | DIN rail or screw fixing |
| Maximum Operating Rate | 3600 cycles/hour |
| Dimensions | 5.00 in H × 3.35 in W × 4.92 in D |
| Certifications | UL, CSA, IEC, CCC, EAC, Marine |
| Weight | 3.20 lb (1.45 kg) |
Information About
The LC1D65008F7 is a TeSys Deca series contactor built by Schneider Electric for resistive load switching in low-voltage industrial systems. Its open-style 4-pole construction uses two normally open and two normally closed power contacts, with screw power terminals and screw clamp control terminals for standard panel wiring practices. The device is rated for up to 690V AC operation and is designed for mounting on DIN rail or by screw fixing, which supports flexible installation in control cabinets. Schneider Electric specifies this model for operating rates up to 3600 cycles per hour and ambient conditions up to 60°C, with compliance across major IEC, UL, CSA, CCC, EAC, and marine certifications.
Key Features:
- TeSys Deca platform: Part of Schneider Electric’s TeSys Deca contactor range for industrial power switching applications.
- 4-pole contact design: Uses a 4P configuration with 2 NO and 2 NC contacts for non-inductive load control.
- AC-1 duty rating: Rated for resistive loads up to 80A, making it suitable for AC-1 switching duties.
- 110V AC coil: Equipped with a 110VAC 50/60Hz control coil for standard industrial control circuits.
- Flexible mounting: Supports DIN-rail mounting or screw fixing for panel integration.
- Frequent operation capability: Designed for operating rates up to 3600 cycles per hour in applications up to 60°C.
- Compact industrial form factor: Measures about 5.00 in high, 3.35 in wide, and 4.92 in deep for efficient cabinet installation.
- Multi-standard approvals: Certified to UL, CSA, IEC, CCC, EAC, and marine standards for broad application acceptance.
The LC1D65008F7 delivers the reliability and precision required for resistive load switching and industrial contactor control assemblies.
