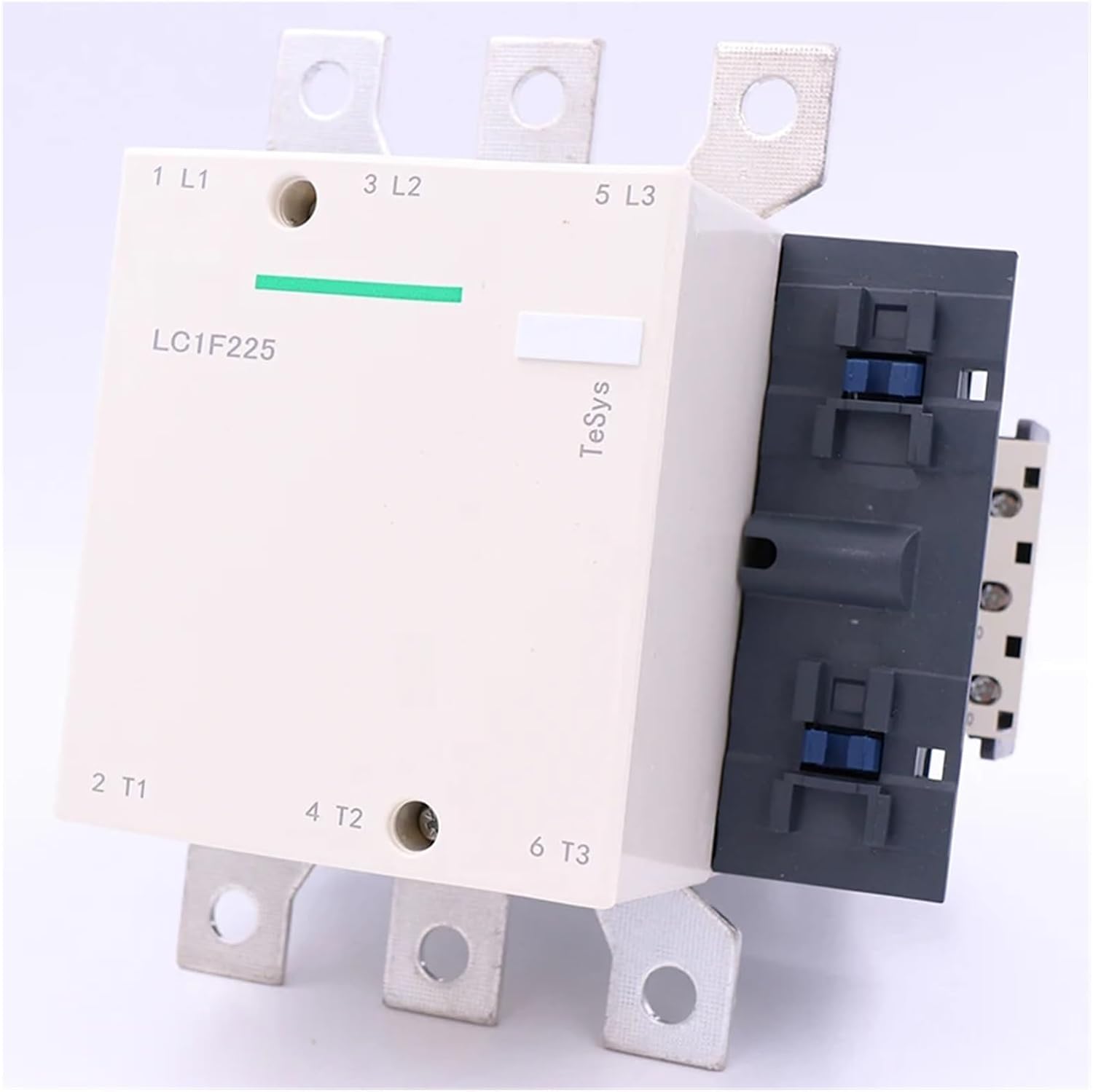

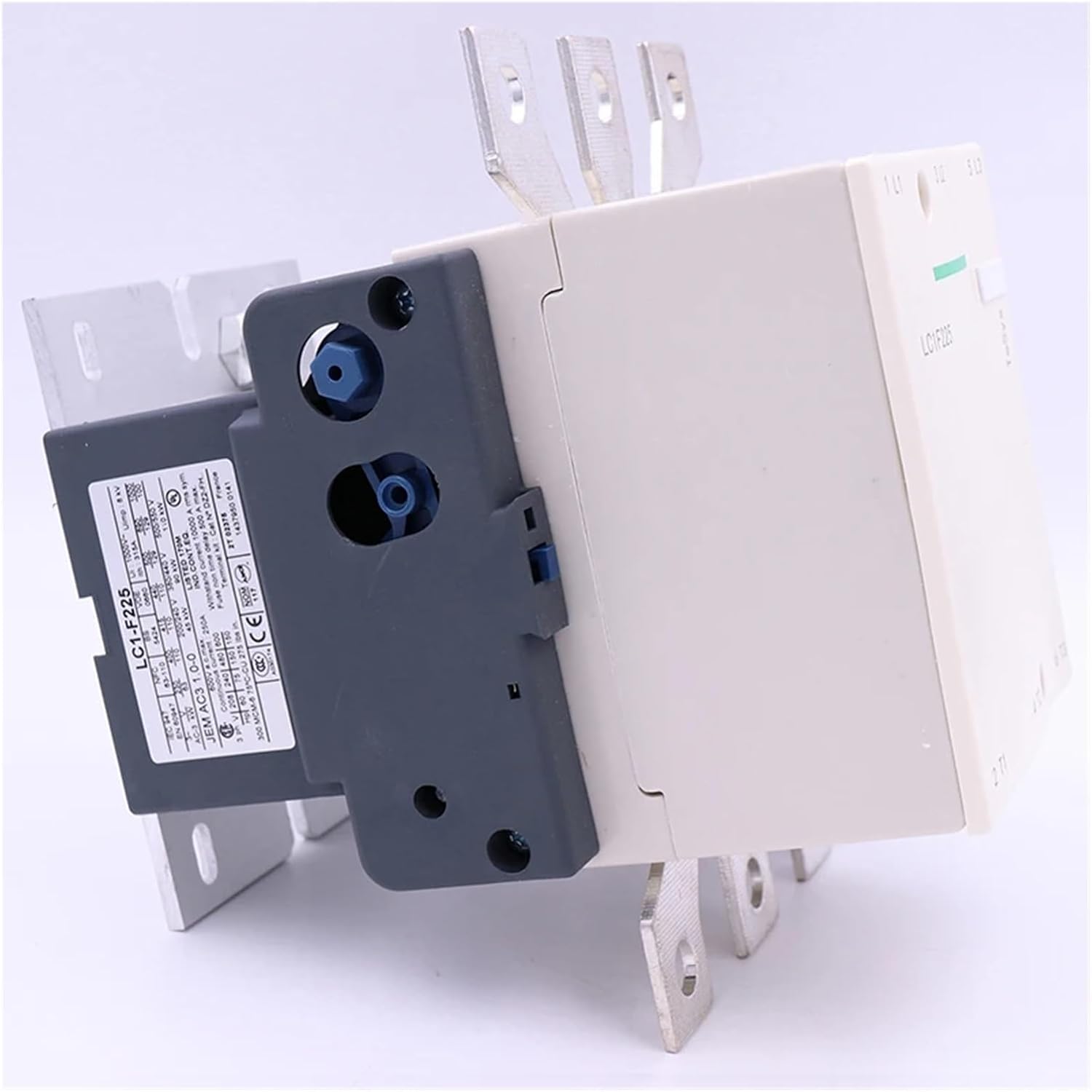

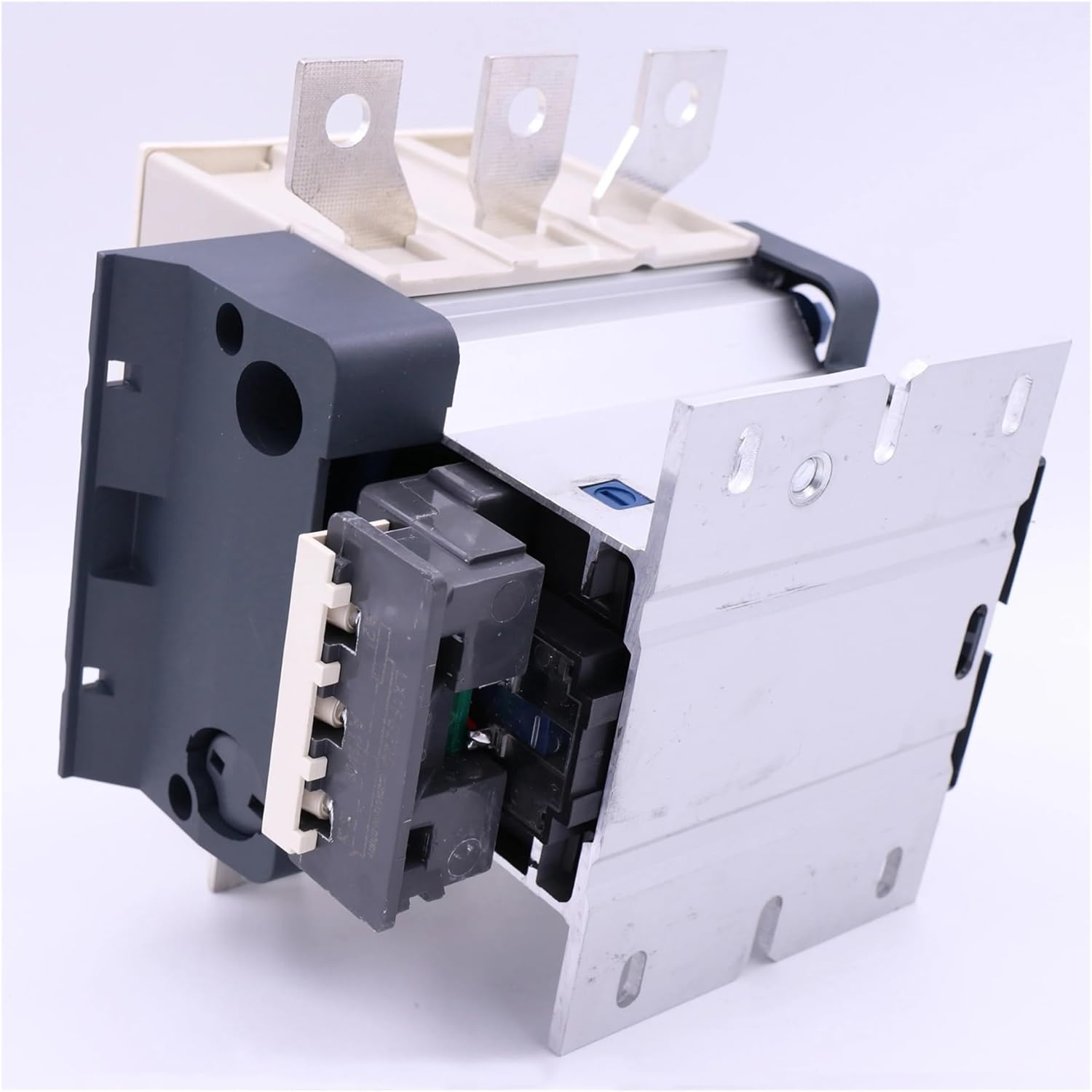

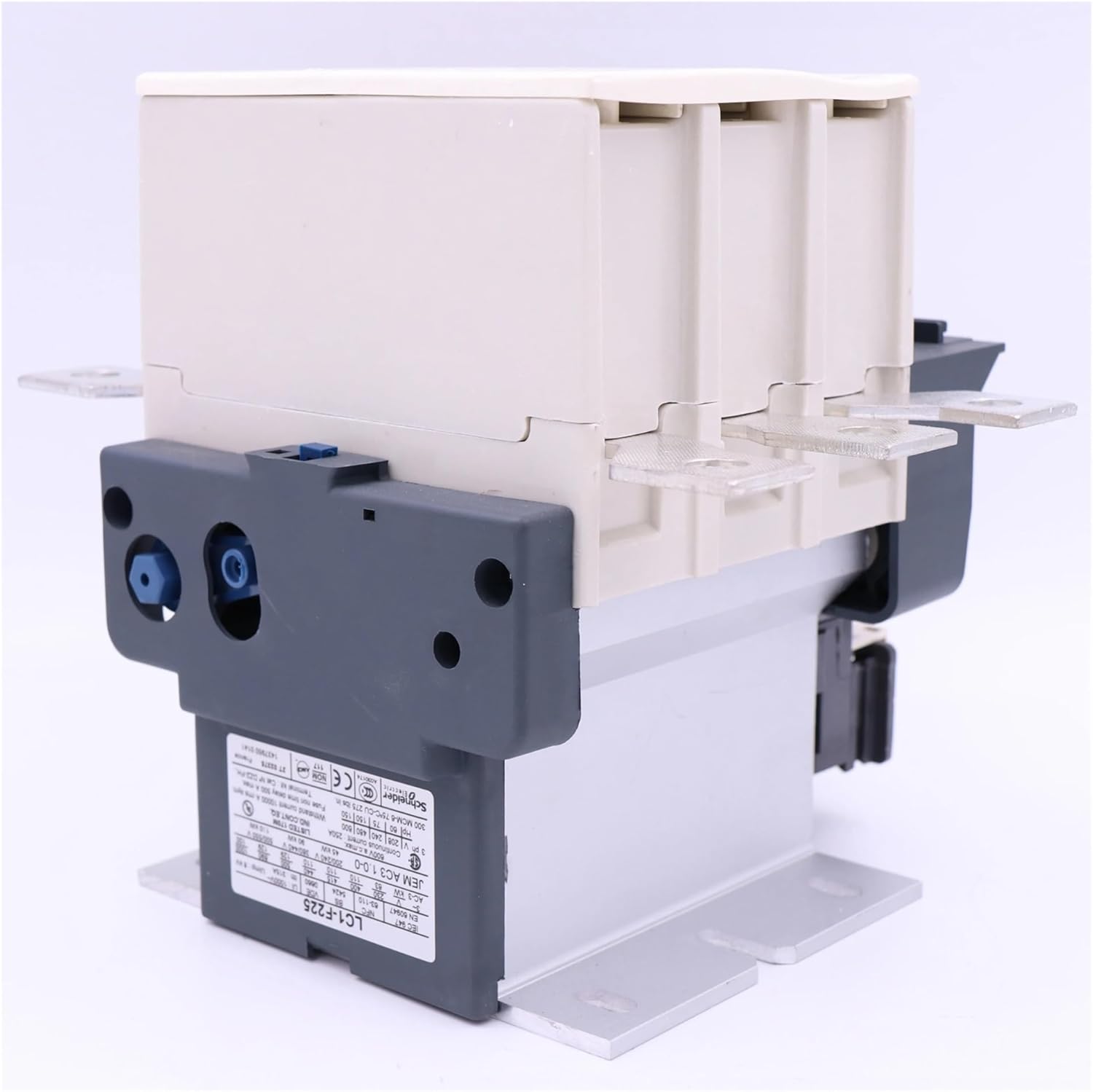

Schneider Electric LC1F225P7 Power Contactor 225A 230V Coil TeSys F
- Regular price
- $1,066.00
- Sale price
- $1,066.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F225P7
Description
The Schneider Electric LC1F225P7 is a TeSys F contactor designed for high-capacity motor control and power switching in industrial systems. It supports up to 225A AC-3 applications and is suitable for motors up to 110 kW at 400V. This contactor provides dependable switching performance for demanding heavy-duty electrical loads.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1F225P7 |
| Subcategory | IEC Contactors |
| Series | TeSys F |
| Product Type | Power Contactor |
| Poles | 3P (3 NO) |
| Rated Operational Current | 225 A (AC-3) |
| Thermal Current | 315 A |
| Rated Operational Voltage | Up to 690 V AC |
| Control Voltage | 230 V AC (40–400 Hz) |
| Motor Power Rating | Up to 110 kW at 400 V AC |
| Breaking Capacity | 1800 A (IEC 60947-4-1) |
| Impulse Withstand Voltage | 8 kV |
| Mechanical Durability | 10 million cycles |
| Mounting Type | Panel Mount |
| Connection Type | Bolted terminals / busbar or lug connections |
| Protection Rating | IP20 |
| Operating Temperature Range | -5°C to 55°C |
| Dimensions (H x W x D) | 197 x 168.5 x 181 mm |
| Weight | 4.75 kg |
Information About LC1F225P7
The LC1F225P7 is part of Schneider Electric’s TeSys F range, engineered for high-power motor control and resistive load switching. It features a 3-pole (3NO) configuration with robust bolted power connections suitable for busbars or cable lugs in high-current applications. The unit includes a 230V AC coil operating across a wide frequency range (40–400 Hz), allowing flexible integration into industrial control systems. Built for durability and long service life, it supports high operational cycles and complies with IEC, UL, CSA, and marine standards.
Key Features:
- High Current Rating: Supports up to 225A AC-3 for heavy-duty motor control applications
- TeSys F Series Construction: Designed for high-power switching in industrial environments
- 3-Pole Configuration: Provides three normally open contacts for three-phase systems
- Wide Voltage Capability: Rated up to 690V AC for flexible industrial applications

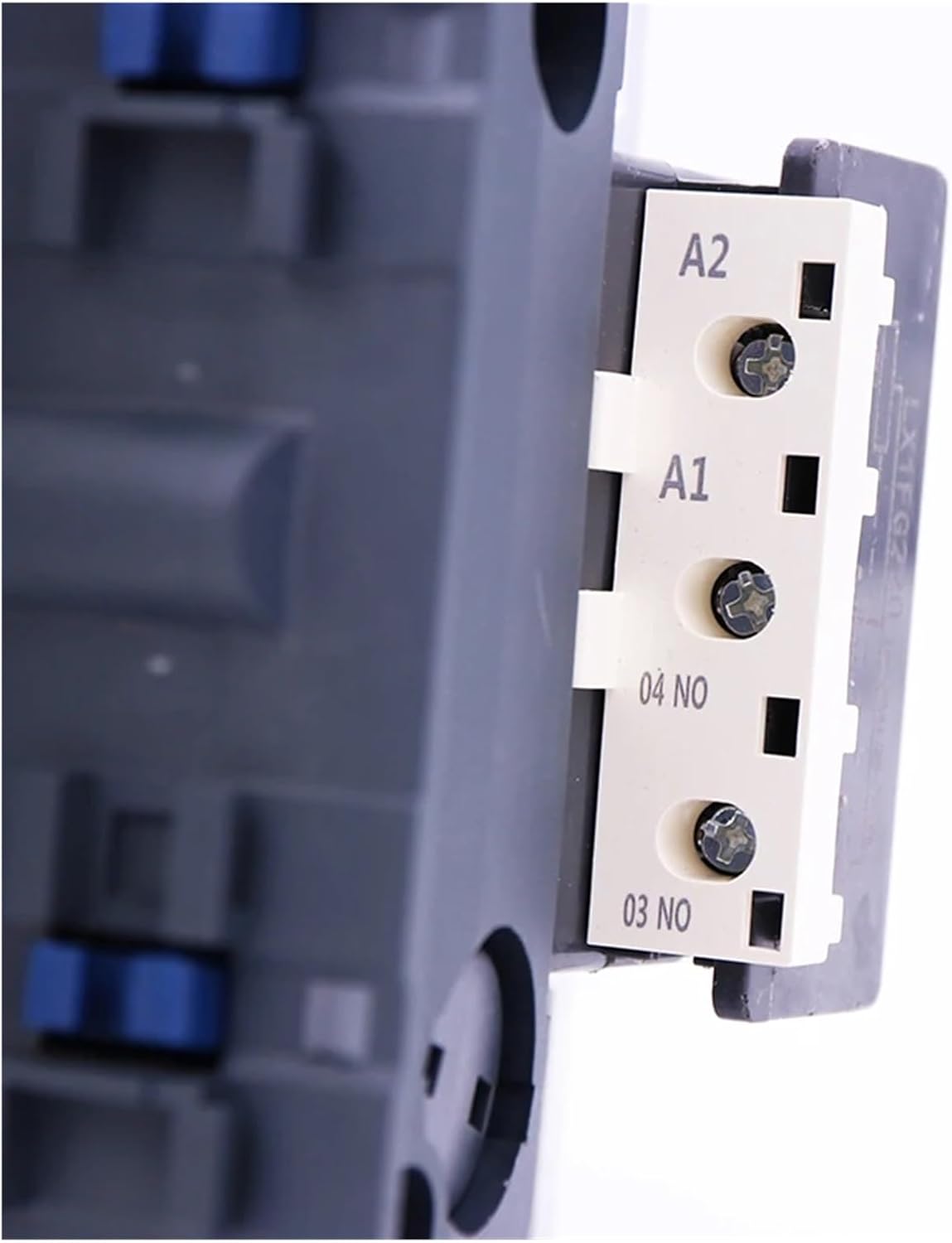

- 230V AC Coil: Operates at 40–400 Hz for compatibility with various control systems
- Bolt-Type Power Terminals: Enables secure connections for high-current cables or busbars
- High Breaking Capacity: Provides up to 1800A breaking capacity for reliable operation
- Long Mechanical Life: Rated up to 10 million cycles for extended durability
The LC1F225P7 delivers the reliability and precision required for high-power motor control and industrial switching applications.
