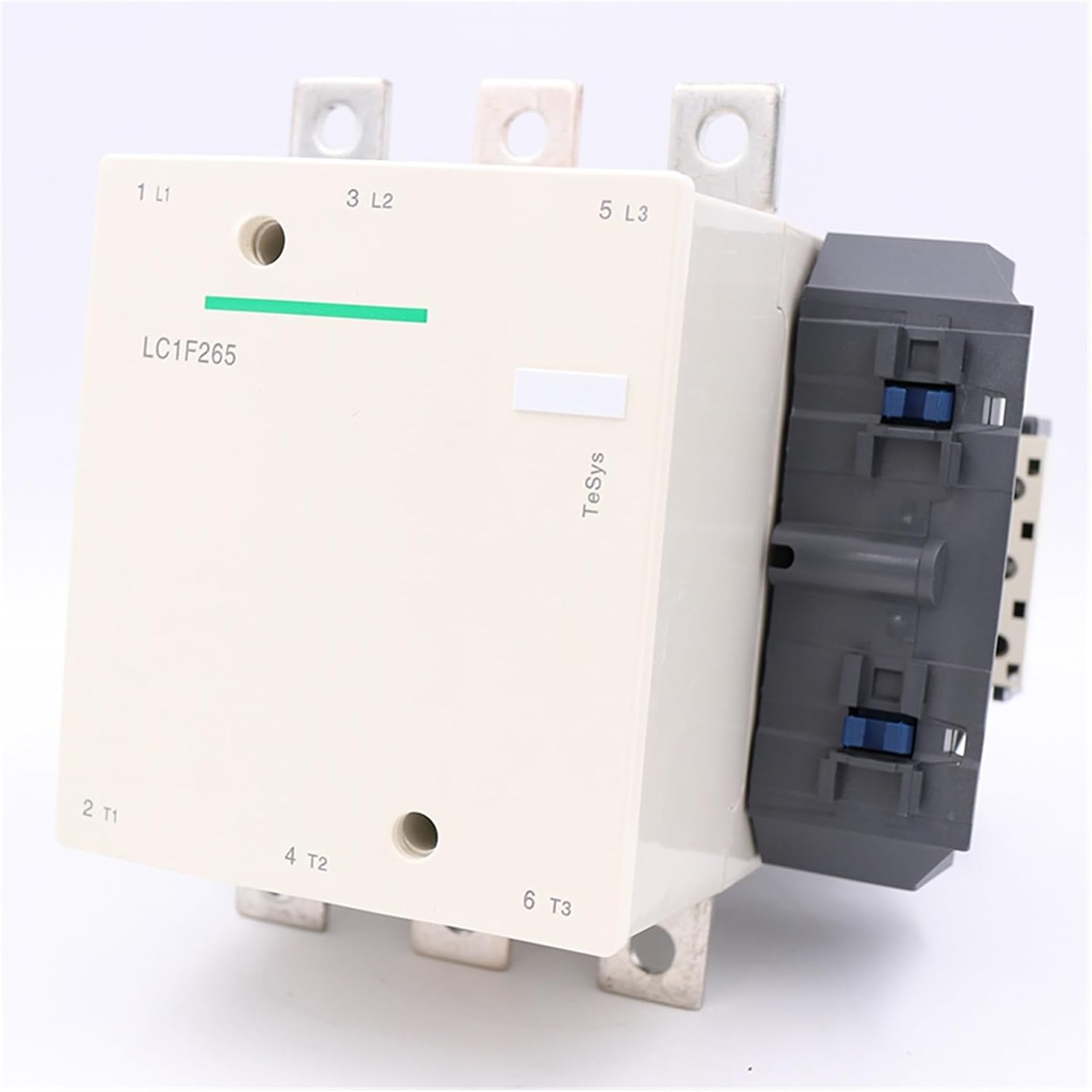

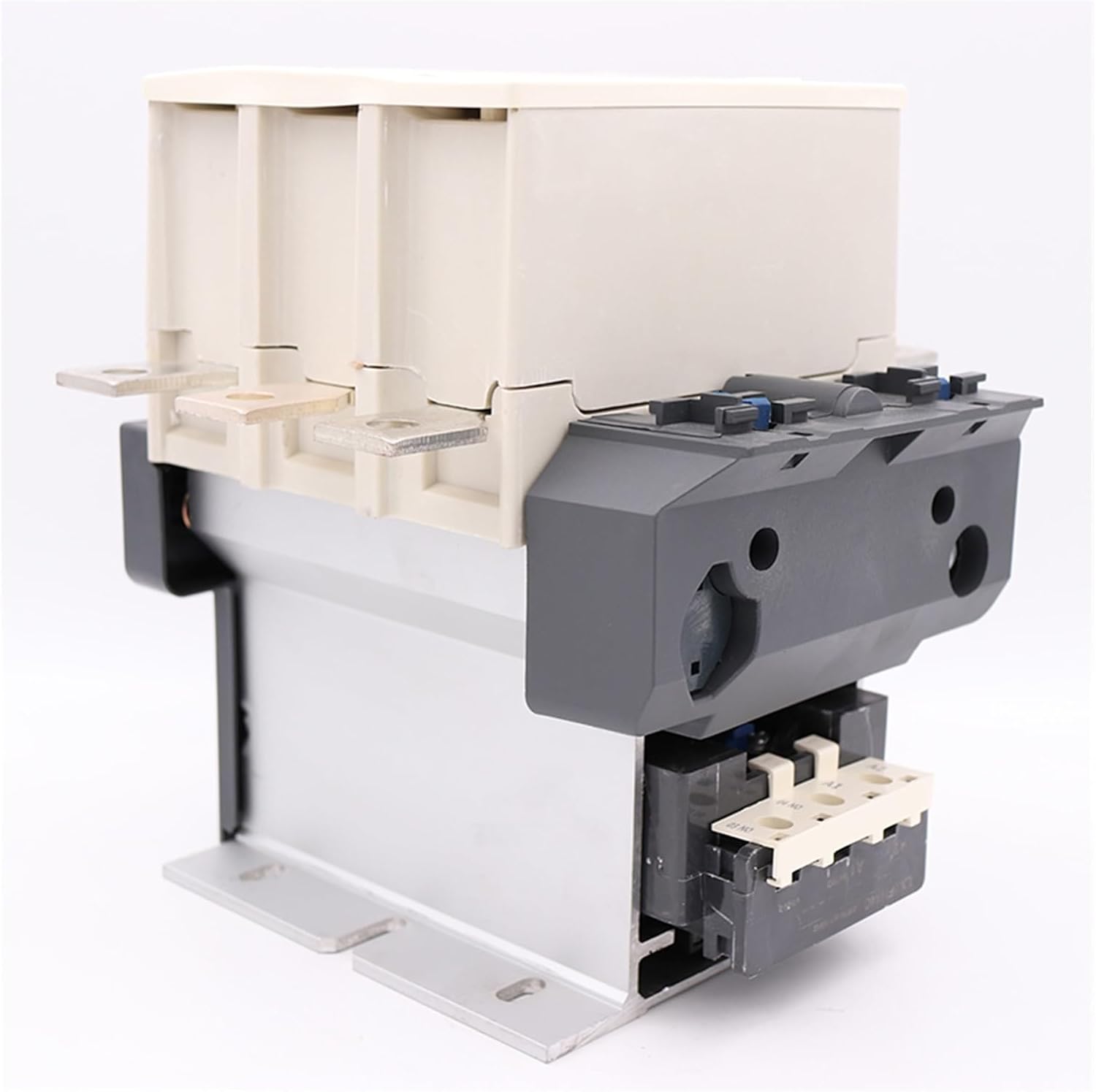

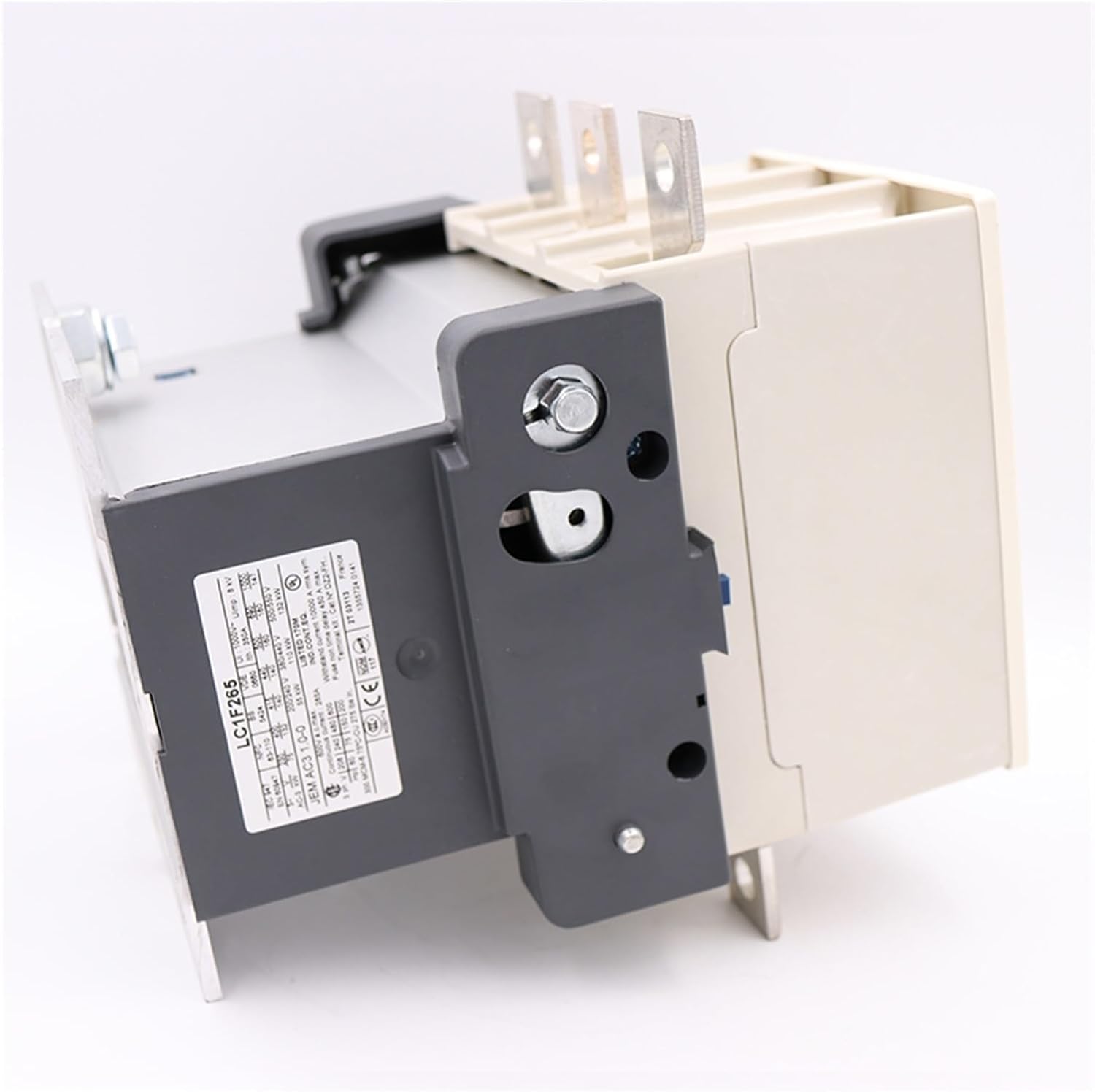

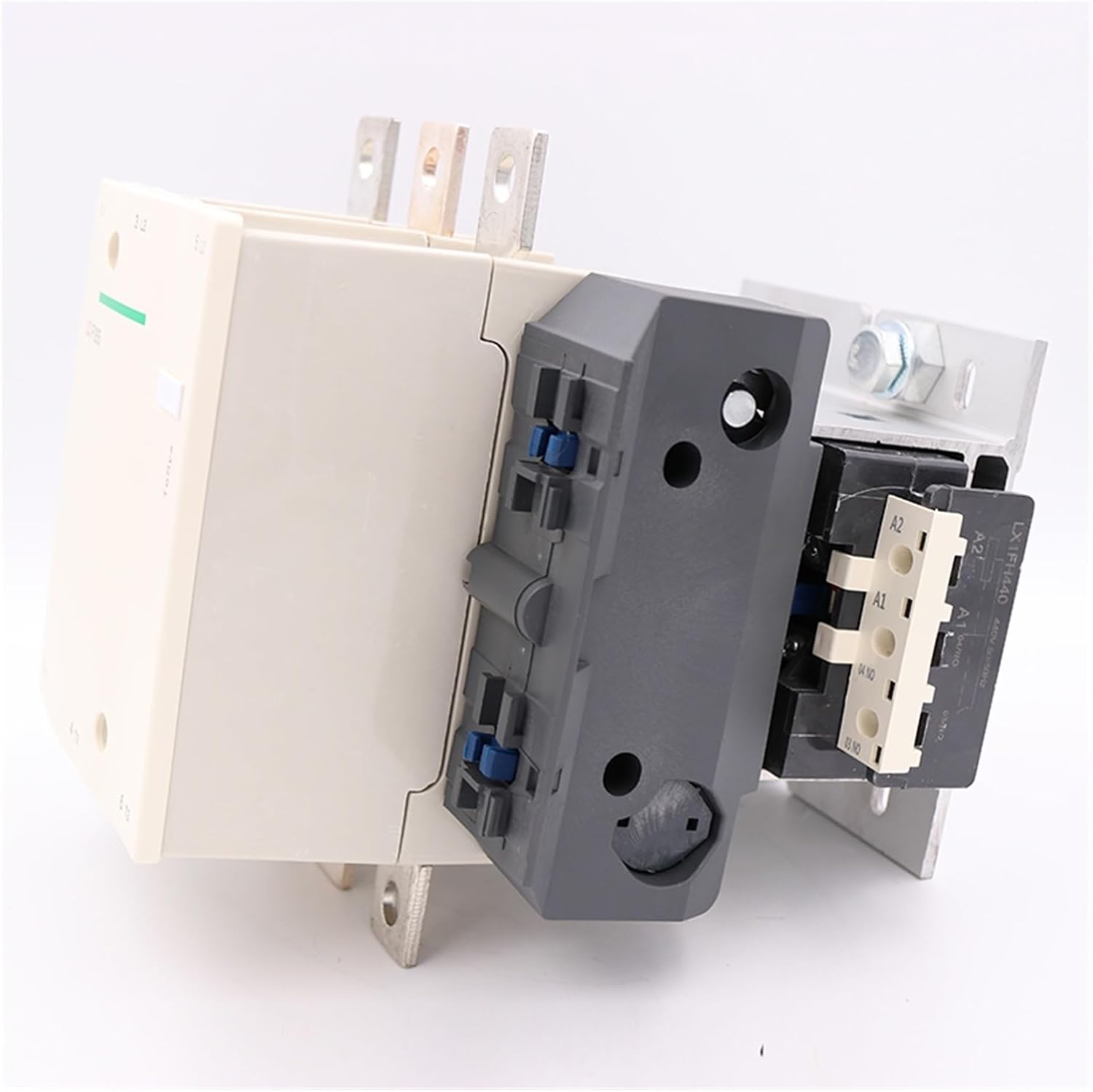

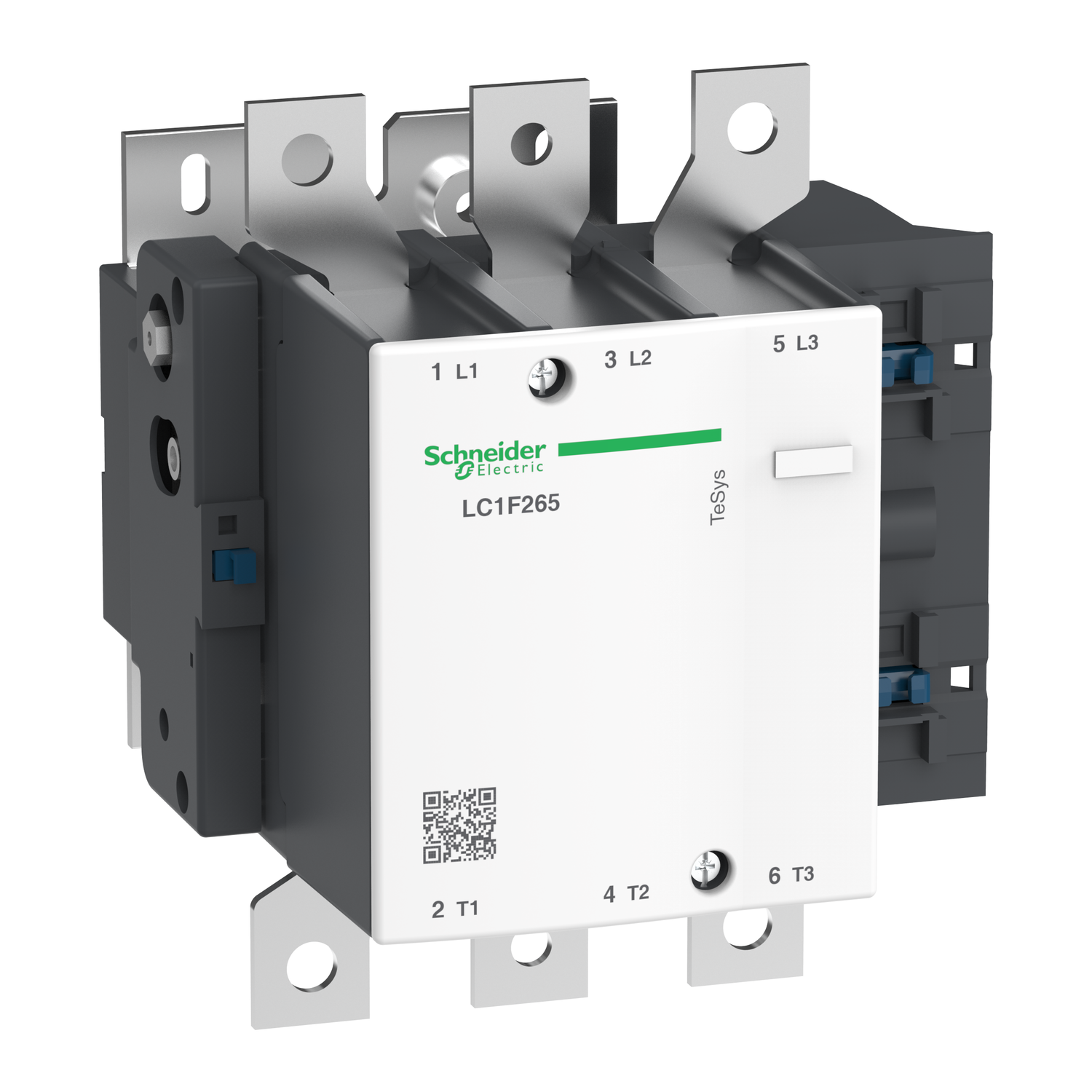

Schneider Electric LC1F265G7 Power Contactor 265A 120V Coil TeSys F
- Regular price
- $826.00
- Sale price
- $826.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F265G7
Description
The Schneider Electric LC1F265G7 is a TeSys F power contactor designed for high-capacity motor control and switching applications. It supports up to 265A in AC-3 duty and is suitable for motors up to 132 kW at 400V. This contactor is engineered for heavy-duty industrial environments requiring reliable switching and long operational life.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LC1F265G7 |
| Subcategory | IEC Contactors |
| Series | TeSys F |
| Product Type | Power Contactor |
| Poles | 3P (3 NO) |
| Rated Operational Current | 265 A (AC-3) |
| Thermal Current | 350 A |
| Rated Operational Voltage | Up to 690 V AC (AC-3), 1000 V AC (AC-1) |
| Control Voltage | 120 V AC (40–400 Hz) |
| Motor Power Rating | Up to 132 kW at 400 V AC |
| Breaking Capacity | 2120 A (IEC 60947-4-1) |
| Impulse Withstand Voltage | 8 kV |
| Mechanical Durability | 10 million cycles |
| Mounting Type | Panel Mount |
| Connection Type | Bolted terminals / busbar or lug connections |
| Protection Rating | IP20 (front face with shrouds) |
| Operating Temperature Range | -5°C to 55°C |
| Dimensions (H x W x D) | 203 x 201.5 x 213 mm |
| Weight | 7.44 kg |
Information About LC1F265G7
The LC1F265G7 is part of Schneider Electric’s TeSys F series, built for large motor control and high-current switching in industrial power systems. It features a 3-pole (3NO) configuration with bolted power connections suitable for busbars or cable lugs, ensuring stable electrical connections under high loads. The device is equipped with a 120V AC coil operating across a wide frequency range (40–400 Hz), allowing flexible integration into various control systems. Designed for durability, it offers high electrical and mechanical endurance and supports the addition of auxiliary blocks and accessories for extended functionality.
Key Features:
- High Current Capacity: Rated for 265A AC-3 applications, suitable for large motor loads
- TeSys F Series Design: Engineered for heavy-duty industrial motor control and switching
- 3-Pole Configuration: Provides 3 normally open contacts for three-phase systems
- Wide Voltage Range: Supports up to 1000V AC-1 and 690V AC-3 operation
- 120V AC Coil: Operates across 40–400 Hz for flexible control system compatibility
- Bolt-Type Power Connections: Allows secure connection to busbars or high-capacity cables
- High Electrical Durability: Designed for frequent switching with up to 2400 cycles per hour
- Expandable Functionality: Compatible with auxiliary contact blocks and accessories
The LC1F265G7 delivers the reliability and precision required for high-power motor control and industrial switching systems.
