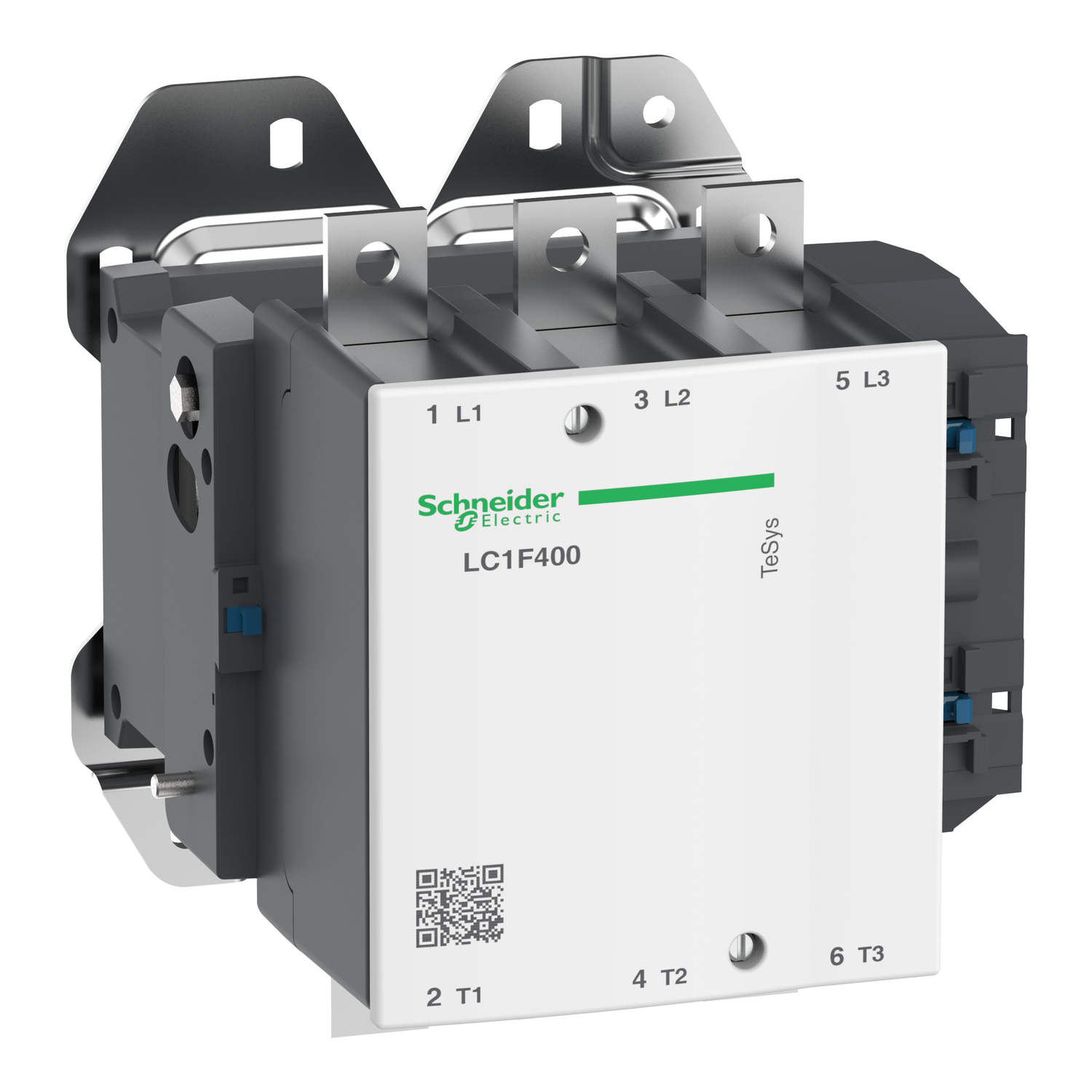

Schneider Electric LC1F400F7 3-Pole 400A TeSys F Contactor 110VAC Coil High Power Motor Control
- Regular price
- $1,752.00
- Sale price
- $1,752.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1F400F7
Description
The Schneider Electric LC1F400F7 is a high-capacity TeSys F contactor designed for controlling large industrial motors and heavy-duty power circuits up to 400A. It features a 3-pole configuration with a 110VAC control coil, providing consistent switching performance in demanding applications. This contactor is engineered for reliability in high-power motor control and resistive load environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Motor Control |
| Part Number | LC1F400F7 |
| Subcategory | Contactor |
| Series | TeSys F |
| Poles | 3 |
| Phase | 3-Phase |
| Rated Operational Current (AC-3) | 400 A |
| Rated Operational Current (AC-1) | 500 A |
| Rated Voltage | Up to 1000 VAC / 460 VDC |
| Coil Voltage | 110 VAC |
| Utilization Category | AC-1, AC-3, AC-4 |
| Contact Configuration | 3 NO |
| Rated Insulation Voltage (Ui) | 1000 V |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Breaking Capacity | 3200 A |
| Short-Time Withstand Current (Icw) | Up to 3600 A |
| Mechanical Durability | 10 million cycles |
| Mounting Type | Plate Mount |
| Protection Rating | IP20 (front face with shrouds) |
| Standards | IEC 60947, UL, CSA, CB |
| Operating Temperature | -5°C to 55°C |
| Weight | 9.1 kg |
Information About LC1F400F7
The LC1F400F7 is part of Schneider Electric’s TeSys F range, built for robust motor control and high-current switching operations. It is constructed with a heavy-duty frame and designed for plate mounting, making it suitable for integration into industrial control panels and automation systems. This contactor supports AC-1, AC-3, and AC-4 utilization categories, allowing it to handle both resistive loads and frequent motor starting operations. With compliance to IEC and UL standards and advanced electromagnetic switching technology, it ensures stable and efficient operation across a wide range of industrial environments.
Key Features:
- High Current Rating: Supports up to 400A AC-3 and 500A AC-1 applications for heavy-duty systems
- 3-Pole Design: Provides reliable switching for three-phase industrial motor circuits
- 110VAC Control Coil: Compatible with standard control voltages in industrial installations
- Wide Voltage Capability: Operates up to 1000VAC and 460VDC for versatile applications
- High Motor Power Handling: Supports motors up to 280 kW at 690VAC and 250 kW at 440VAC
- Durable Mechanical Life: Rated for up to 10 million mechanical cycles for long-term use
- Strong Short-Circuit Withstand: High breaking capacity and short-time current resistance for protection
- Plate Mount Installation: Designed for secure mounting in industrial enclosures
The LC1F400F7 delivers the reliability and precision required for high-power motor control and industrial switching applications.
