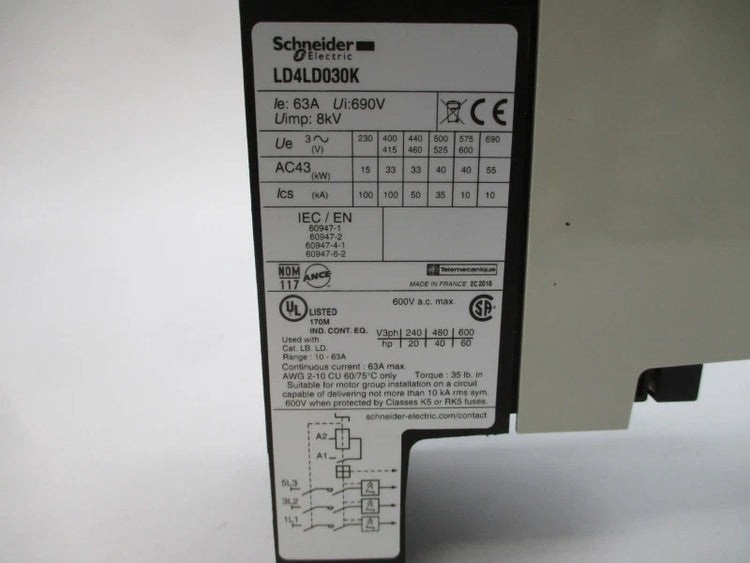

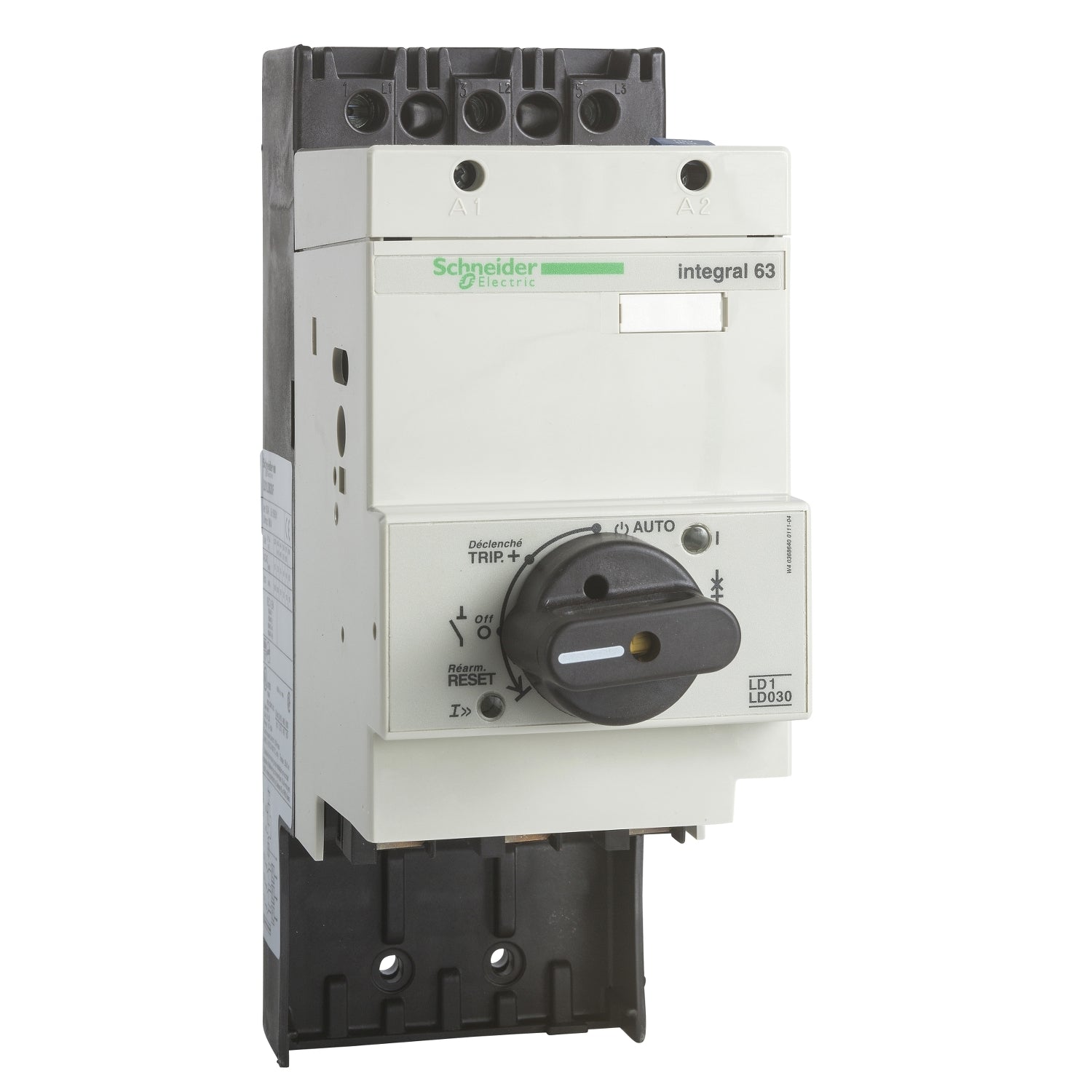

Schneider Electric LD4LD030K Contactor Breaker 63A 690V TeSys Integral 63
- Regular price
- $2,662.00
- Sale price
- $2,662.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LD4LD030K
Description
The Schneider Electric LD4LD030K is a TeSys Integral 63 contactor breaker designed for combined motor control and circuit protection in industrial systems. It supports up to 63A operation at 690V AC and integrates switching and protection functions in a single compact device. This unit is suited for applications requiring coordinated control, overload protection, and short-circuit interruption.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | LD4LD030K |
| Subcategory | Contactor Breakers |
| Series | TeSys Integral 63 |
| Product Type | Contactor Breaker |
| Poles | 3P |
| Rated Operational Current | 63 A |
| Rated Operational Voltage | 690 V AC 50/60 Hz |
| Utilization Category | AC-1 / AC-43 |
| Control Voltage | 110 V AC |
| Motor Power Rating | Up to 30 kW at 400 V AC |
| Breaking Capacity | Up to 50 kA at ≤440 V |
| Impulse Withstand Voltage | 8 kV |
| Insulation Voltage | 690 V |
| Mounting Type | Panel Mount |
| Terminal Type | Screw clamp terminals |
| Operating Temperature Range | -20°C to 60°C |
| Protection Rating | IP20 |
| Dimensions (H x W x D) | 243 x 90 x 192 mm |
| Weight | 3.8 kg |
Information About LD4LD030K

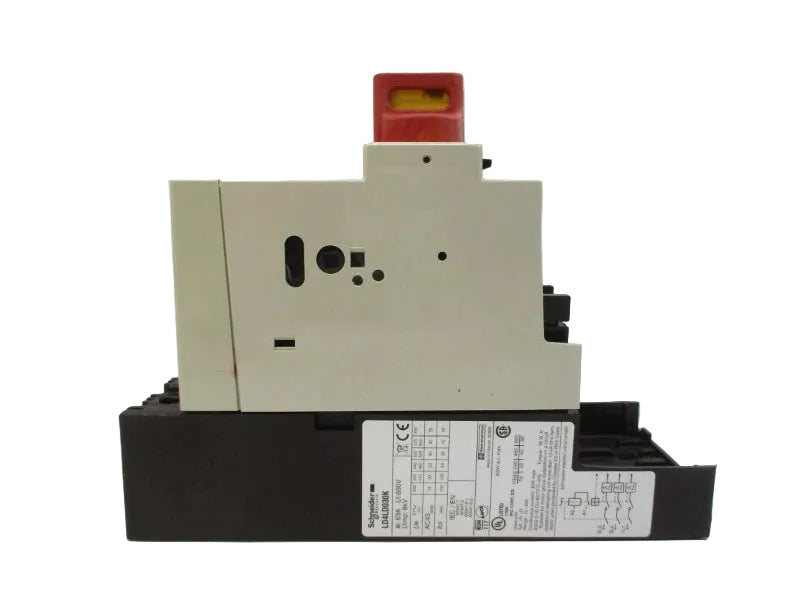

The LD4LD030K is part of Schneider Electric’s TeSys Integral 63 range, engineered as a contactor breaker that combines a contactor and circuit breaker into one unit. It features a 3-pole configuration with integrated protection functions, supporting both AC-1 and AC-43 utilization categories for motor and resistive loads. The device includes a 110V AC control circuit and a front-mounted red emergency stop knob for manual control and safety operations. Designed for industrial environments, it incorporates screw clamp terminals, high breaking capacity, and compliance with multiple international standards for reliable performance.
Key Features:
- Contactor Breaker Design: Combines switching and protection functions in a single integrated unit
- 63A Current Rating: Supports high current applications up to 63A for industrial motor and load control
- High Breaking Capacity: Provides up to 50 kA breaking capacity for reliable short-circuit protection
- 3-Pole Configuration: Enables full three-phase control and protection
- Emergency Stop Control: Equipped with a red front-mounted knob for manual stop and safety control
- 110V AC Control Circuit: Compatible with standard industrial control voltage systems
- Robust Terminal Connections: Screw clamp terminals ensure secure and stable wiring
- Wide Application Range: Suitable for AC-1 and AC-43 categories including motor and resistive loads
The LD4LD030K delivers the reliability and precision required for integrated motor control and circuit protection in industrial power systems.
