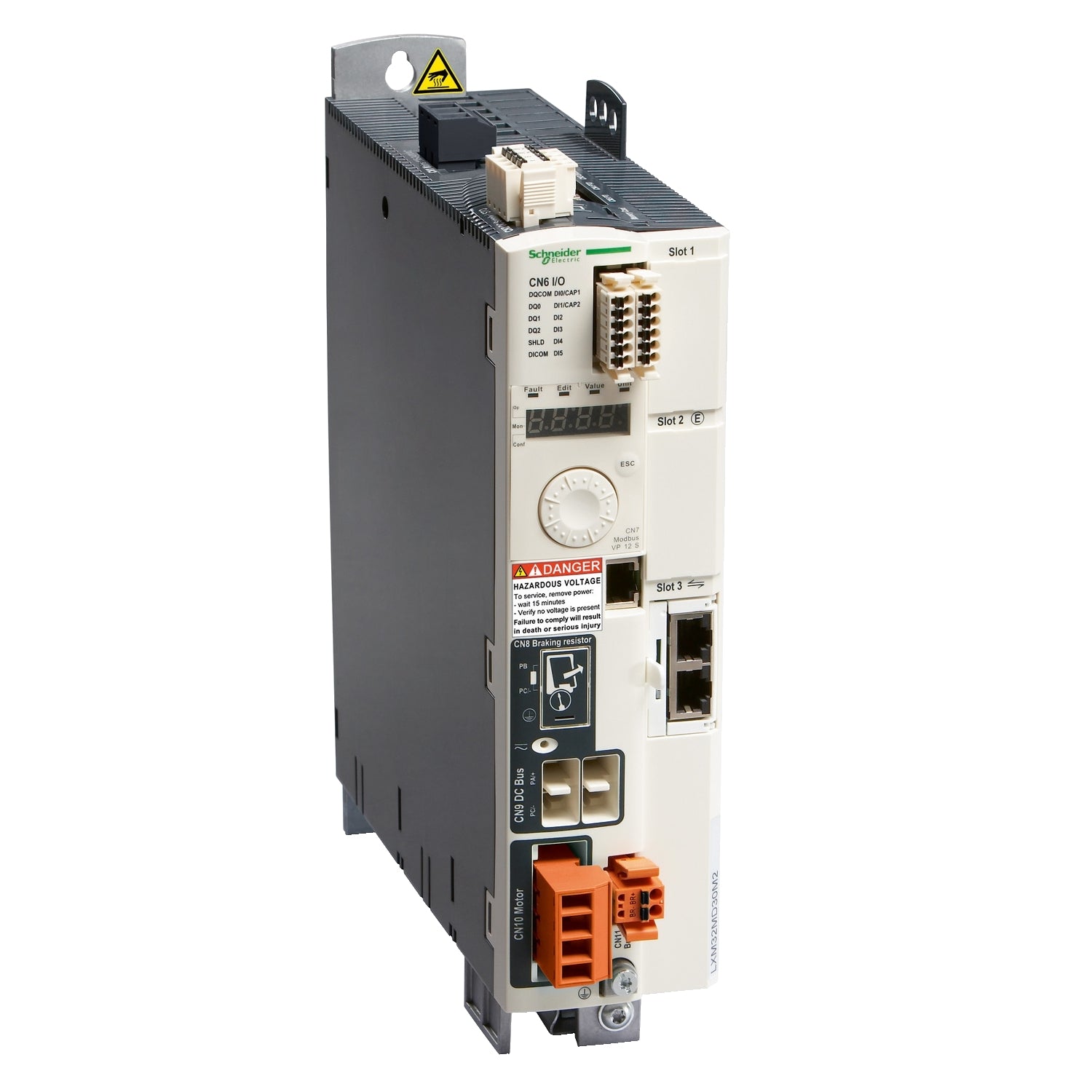

Schneider Electric LXM32MD30N4 Lexium 32 Servo Drive 10A 480VAC Motion Control
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LXM32MD30N4
Description
The Schneider Electric LXM32MD30N4 is a Lexium 32 servo drive designed for precise motion control in industrial automation systems. It delivers high-performance motor control with a continuous output current of 10A and supports multi-voltage operation up to 480 VAC. This drive is engineered for integration with synchronous servo motors in machine automation and material handling applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | LXM32MD30N4 |
| Category | Motors & Drives |
| Subcategory | Servo Drive |
| Product Type | Motion Servo Drive |
| Series | Lexium 32 |
| Supply Voltage | 208–480 VAC (single/three phase) |
| Supply Frequency | 50/60 Hz |
| Continuous Output Current | 10 A @ 8 kHz |
| Peak Output Current | 30 A (short duration) |
| Continuous Power | Up to 5.6 kW |
| Nominal Power | 2–3 kW (depending on voltage) |
| Switching Frequency | 8 kHz |
| Safety Function | STO (Safe Torque Off) |
| Communication Interface | Optional (CANopen, EtherCAT, Ethernet/IP, etc.) |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Dimensions (H x W x D) | 270 x 68 x 237 mm |
| Certifications | CE, UL, CSA, TÜV |
| Weight | 6.0 lbs |
Information About LXM32MD30N4
The LXM32MD30N4 is a Schneider Electric servo drive from the Lexium 32 series, developed for advanced motion control in industrial machinery. It operates on single or three-phase power supplies ranging from 208V to 480V AC and supports high-performance servo motors such as BMH and BSH series. The drive incorporates integrated safety features including Safe Torque Off (STO), ensuring compliance with modern safety standards. Designed in a compact book-style format, it provides efficient space utilization while delivering reliable control in packaging, robotics, and automation systems.
Key Features:
- 10A Continuous Output Current: Provides stable performance for demanding motion control applications
- Multi-Voltage Operation: Supports 208–480 VAC for flexible installation across systems
- Lexium 32 Series Design: Engineered for high-performance industrial automation
- Integrated STO Safety Function: Ensures safe operation with certified torque-off protection
- Wide Motor Compatibility: Supports BMH and BSH servo motors for versatile applications
- High Peak Current Capability: Delivers up to 30A peak for dynamic load handling
- Compact Book Format: Optimizes panel space in control cabinets
- Expandable Communication Options: Supports multiple industrial protocols via optional cards
The LXM32MD30N4 delivers the reliability and precision required for high-performance motion control in industrial automation and machine applications.
Description
The Schneider Electric LXM32MD30N4 is a Lexium 32 servo drive designed for precise motion control in industrial automation systems. It delivers high-performance motor control with a continuous output current of 10A and supports multi-voltage operation up to 480 VAC. This drive is engineered for integration with synchronous servo motors in machine automation and material handling applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | LXM32MD30N4 |
| Category | Motors & Drives |
| Subcategory | Servo Drive |
| Product Type | Motion Servo Drive |
| Series | Lexium 32 |
| Supply Voltage | 208–480 VAC (single/three phase) |
| Supply Frequency | 50/60 Hz |
| Continuous Output Current | 10 A @ 8 kHz |
| Peak Output Current | 30 A (short duration) |
| Continuous Power | Up to 5.6 kW |
| Nominal Power | 2–3 kW (depending on voltage) |
| Switching Frequency | 8 kHz |
| Safety Function | STO (Safe Torque Off) |
| Communication Interface | Optional (CANopen, EtherCAT, Ethernet/IP, etc.) |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Dimensions (H x W x D) | 270 x 68 x 237 mm |
| Certifications | CE, UL, CSA, TÜV |
| Weight | 6.0 lbs |
Information About LXM32MD30N4
The LXM32MD30N4 is a Schneider Electric servo drive from the Lexium 32 series, developed for advanced motion control in industrial machinery. It operates on single or three-phase power supplies ranging from 208V to 480V AC and supports high-performance servo motors such as BMH and BSH series. The drive incorporates integrated safety features including Safe Torque Off (STO), ensuring compliance with modern safety standards. Designed in a compact book-style format, it provides efficient space utilization while delivering reliable control in packaging, robotics, and automation systems.
Key Features:
- 10A Continuous Output Current: Provides stable performance for demanding motion control applications
- Multi-Voltage Operation: Supports 208–480 VAC for flexible installation across systems
- Lexium 32 Series Design: Engineered for high-performance industrial automation
- Integrated STO Safety Function: Ensures safe operation with certified torque-off protection
- Wide Motor Compatibility: Supports BMH and BSH servo motors for versatile applications
- High Peak Current Capability: Delivers up to 30A peak for dynamic load handling
- Compact Book Format: Optimizes panel space in control cabinets
- Expandable Communication Options: Supports multiple industrial protocols via optional cards
The LXM32MD30N4 delivers the reliability and precision required for high-performance motion control in industrial automation and machine applications.
