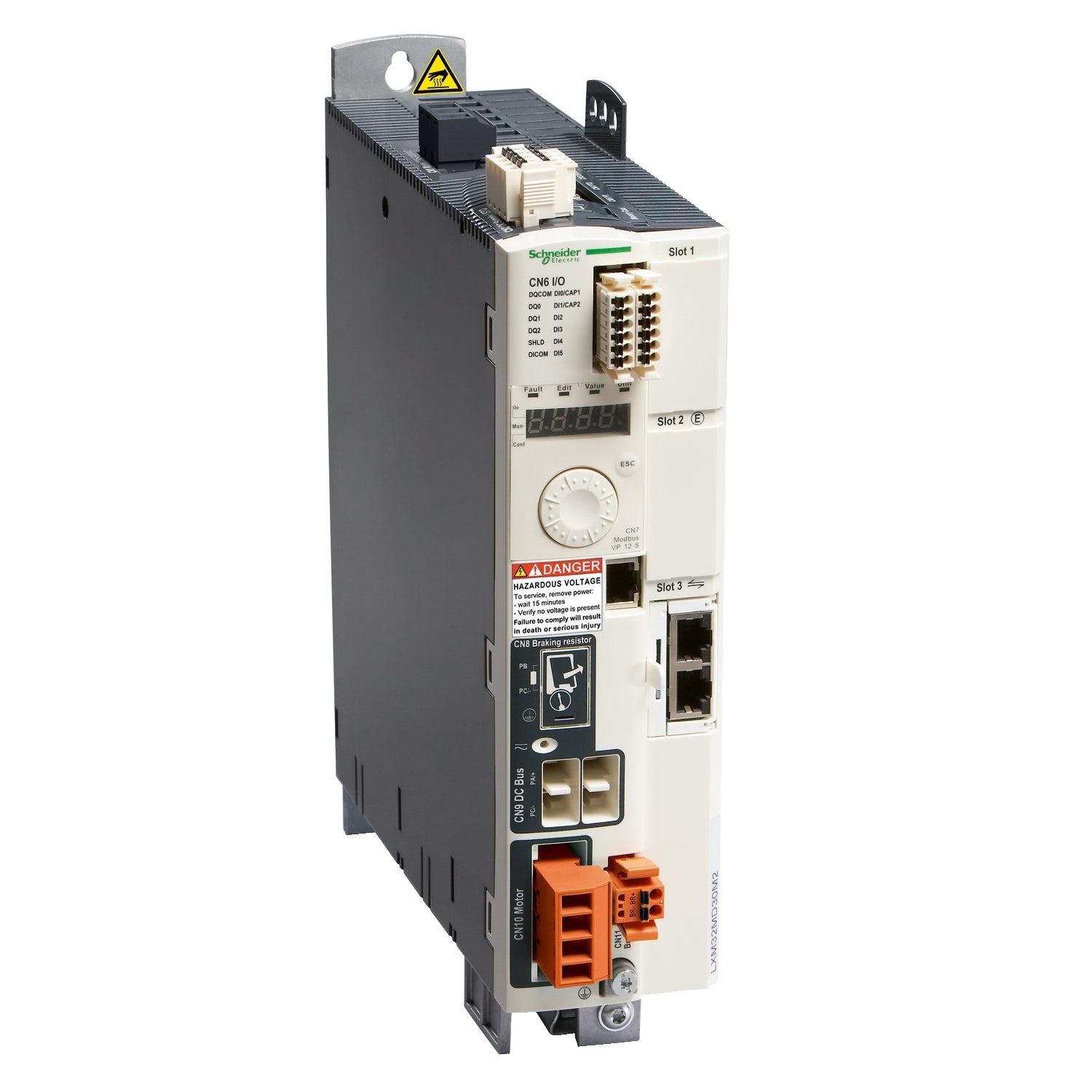

LXM32MD72N4 | Schneider Electric Lexium 32 7kW Servo Drive, 72A, 208–480VAC
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LXM32MD72N4
Description
The Schneider Electric LXM32MD72N4 is a high-performance Lexium 32 motion servo drive designed for precise control of industrial automation systems. This three-phase servo drive supports supply voltages from 208 to 480 VAC and delivers up to 7 kW of nominal power for demanding motion applications. Engineered in a compact book-style format, the LXM32MD72N4 combines fast dynamic response with efficient power delivery for advanced machine control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Servo Drives & Motors |
| Part Number | LXM32MD72N4 |
| Subcategory | Servo Drives |
| Product Series | Lexium 32 |
| Drive Type | Motion Servo Drive |
| Input Phase | Three Phase |
| Rated Supply Voltage | 208–480 VAC |
| Supply Frequency | 50/60 Hz |
| Continuous Output Current | 24 A @ 8 kHz |
| Peak Output Current | 72 A |
| Nominal Power | 7 kW |
| Switching Frequency | 8 kHz |
| Safety Function | Safe Torque Off (STO), SIL 3 |
| Protection Rating | IP20 |
| Cooling Method | Integrated Fan |
| Operating Temperature | 0°C to 50°C |
| Communication Interfaces | Modbus TCP, EtherCAT, CANopen, Ethernet/IP (via optional cards) |
| Mounting Style | Book Mount |
| Dimensions (H × W × D) | 10.6 in × 4.3 in × 9.3 in |
| Weight | 10.6 lb |
Information About LXM32MD72N4
The LXM32MD72N4 is a servo drive from Schneider Electric’s Lexium 32 series, developed to pair with BMH and BSH synchronous servo motors. It features an integrated EMC filter, electrical isolation between power and control circuits, and a high switching frequency to ensure precise motor performance. Designed for industrial machinery, this drive supports multiple communication protocols via optional cards, allowing flexible system integration. Its compliance with international safety and EMC standards ensures reliable operation throughout the machine lifecycle.
Key Features:
- High Output Capability: Provides up to 72 A peak output current for dynamic motion control
- Wide Voltage Range: Operates on three-phase 208–480 VAC power supplies
- Compact Book-Style Design: Maximizes power density while minimizing panel space
- Fast Dynamic Response: Delivers up to 1,600 Hz speed bandwidth for precise control
- Integrated Safety Function: Includes Safe Torque Off (STO) rated up to SIL 3
- Flexible Communication Options: Supports multiple industrial networks via optional cards
- Integrated Cooling System: Built-in fan ensures thermal stability during continuous operation
The LXM32MD72N4 delivers the reliability and precision required for high-performance industrial motion control systems.
Description
The Schneider Electric LXM32MD72N4 is a high-performance Lexium 32 motion servo drive designed for precise control of industrial automation systems. This three-phase servo drive supports supply voltages from 208 to 480 VAC and delivers up to 7 kW of nominal power for demanding motion applications. Engineered in a compact book-style format, the LXM32MD72N4 combines fast dynamic response with efficient power delivery for advanced machine control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Servo Drives & Motors |
| Part Number | LXM32MD72N4 |
| Subcategory | Servo Drives |
| Product Series | Lexium 32 |
| Drive Type | Motion Servo Drive |
| Input Phase | Three Phase |
| Rated Supply Voltage | 208–480 VAC |
| Supply Frequency | 50/60 Hz |
| Continuous Output Current | 24 A @ 8 kHz |
| Peak Output Current | 72 A |
| Nominal Power | 7 kW |
| Switching Frequency | 8 kHz |
| Safety Function | Safe Torque Off (STO), SIL 3 |
| Protection Rating | IP20 |
| Cooling Method | Integrated Fan |
| Operating Temperature | 0°C to 50°C |
| Communication Interfaces | Modbus TCP, EtherCAT, CANopen, Ethernet/IP (via optional cards) |
| Mounting Style | Book Mount |
| Dimensions (H × W × D) | 10.6 in × 4.3 in × 9.3 in |
| Weight | 10.6 lb |
Information About LXM32MD72N4
The LXM32MD72N4 is a servo drive from Schneider Electric’s Lexium 32 series, developed to pair with BMH and BSH synchronous servo motors. It features an integrated EMC filter, electrical isolation between power and control circuits, and a high switching frequency to ensure precise motor performance. Designed for industrial machinery, this drive supports multiple communication protocols via optional cards, allowing flexible system integration. Its compliance with international safety and EMC standards ensures reliable operation throughout the machine lifecycle.
Key Features:
- High Output Capability: Provides up to 72 A peak output current for dynamic motion control
- Wide Voltage Range: Operates on three-phase 208–480 VAC power supplies
- Compact Book-Style Design: Maximizes power density while minimizing panel space
- Fast Dynamic Response: Delivers up to 1,600 Hz speed bandwidth for precise control
- Integrated Safety Function: Includes Safe Torque Off (STO) rated up to SIL 3
- Flexible Communication Options: Supports multiple industrial networks via optional cards
- Integrated Cooling System: Built-in fan ensures thermal stability during continuous operation
The LXM32MD72N4 delivers the reliability and precision required for high-performance industrial motion control systems.
