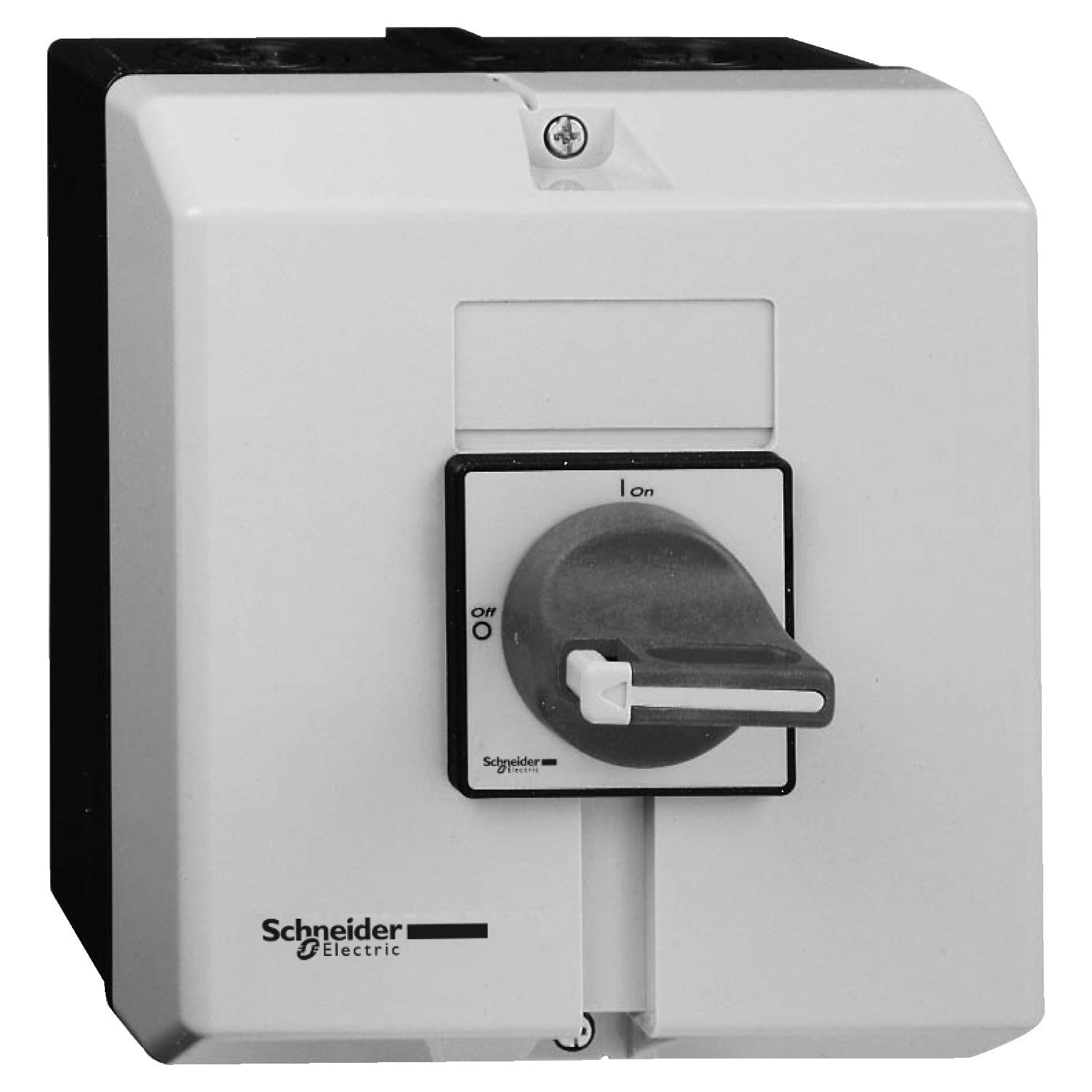

Schneider Electric VCF5GE 3-Pole Emergency Stop Disconnect Switch 690VAC TeSys VARIO IP65
- Regular price
- $455.00
- Sale price
- $455.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VCF5GE
Description
The Schneider Electric VCF5GE is an enclosed emergency stop switch disconnector designed for safe isolation of electrical circuits in industrial applications. It features a 3-pole configuration with a rotary handle for reliable manual operation and circuit interruption. This device is built to ensure secure shutdown and isolation in machinery and control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Safety Switches |
| Part Number | VCF5GE |
| Subcategory | Disconnect Switch |
| Series | TeSys VARIO |
| Product Type | Enclosed Emergency Stop Switch Disconnector |
| Poles | 3 |
| Rated Operational Voltage | 690 VAC |
| Rated Operational Current (AC-23A) | 68.5 A at 400 V |
| Thermal Current (Ithe) | 100 A |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Short-Time Withstand Current (Icw) | 1500 A (1 s) |
| Breaking Capacity | 1000 A at 400 V |
| Making Capacity (Icm) | 2.8 kA |
| Mounting Type | Enclosed / Panel Mount |
| Handle Type | Rotary (Red Handle, Yellow Plate) |
| IP Rating | IP65 |
| Mechanical Durability | 30,000 cycles |
| Operating Temperature | -20°C to 50°C |
| Weight | 2.19 kg |
Information About VCF5GE
The VCF5GE is part of Schneider Electric’s TeSys VARIO range, engineered for high-performance switching and emergency disconnection. It is constructed as an enclosed unit with a robust housing and a red rotary handle on a yellow front plate for clear emergency identification. Designed for panel or enclosure mounting, it provides safe isolation and supports padlocking to prevent unauthorized operation. With compliance to IEC standards and high durability ratings, it ensures consistent performance in industrial environments requiring reliable safety control.
Key Features:
- Emergency Stop Function: Provides immediate manual disconnection of electrical circuits for safety
3-Pole Configuration: Enables complete isolation of three-phase systems - Rotary Handle Operation: Ensures clear ON/OFF indication with simple manual control
- Padlockable Handle: Supports up to three padlocks for secure lockout/tagout procedures
- High Voltage Rating: Operates up to 690VAC for industrial power systems
- Durable Enclosure: IP65-rated housing protects against dust and water ingress
- High Breaking Capacity: Designed to handle demanding switching and fault conditions
- Long Mechanical Life: Rated for up to 30,000 cycles for reliable operation
The VCF5GE delivers the reliability and precision required for safe circuit isolation and emergency stop control in industrial systems.
