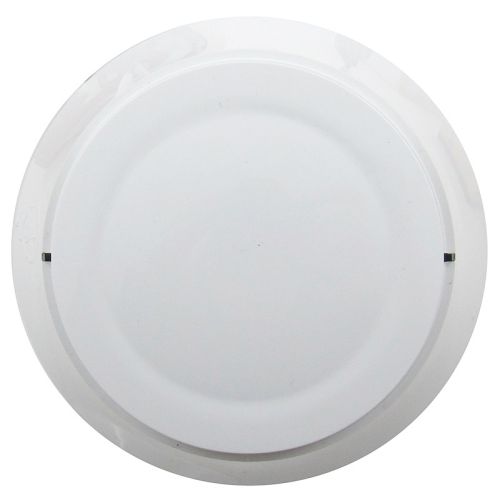

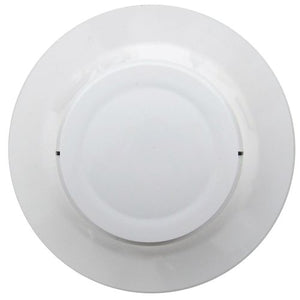

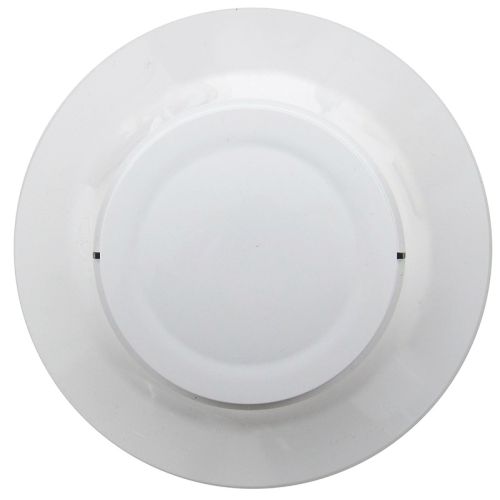

SD365-IV | Fire-Lite Intelligent Addressable Photoelectric Smoke Detector, Ivory
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SD365-IV
Description
The Fire-Lite SD365-IV is an intelligent addressable photoelectric smoke detector designed for use with LiteSpeed® and CLIP protocol systems. This model offers accurate smoke detection and point addressability, enabling precise fire alarm system monitoring. Its ivory housing combines modern aesthetics with reliable performance for commercial, residential, and institutional applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite Alarms by Honeywell |
| Category | Fire Safety |
| Part Number | SD365-IV |
| Subcategory | Smoke Detector |
| Detection Method | Photoelectric |
| Operating Voltage Range | 15–32 VDC |
| Standby Current | 200 μA @ 24 VDC |
| Alarm Current | 2 mA @ 24 VDC |
| Maximum Current | 4.5 mA @ 24 VDC |
| Air Velocity Range | 0–4000 ft/min (0–1219.2 m/min) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Operating Humidity | 10%–93% non-condensing |
| LED Indicators | Red, green, amber – on, off, or blinking |
| Addressing | Up to 159 devices per loop |
| Housing Color | Ivory (other colors available) |

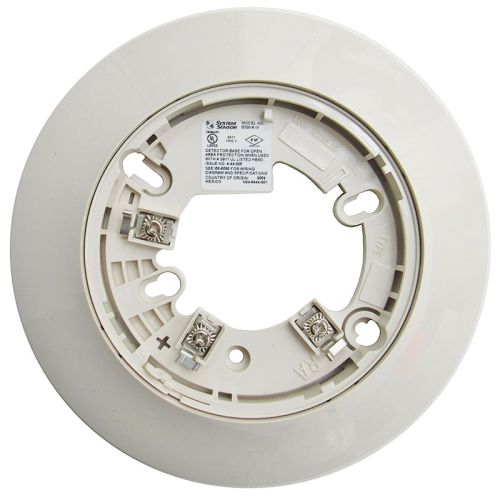

| Diameter | 6.2" (B300-6 base), 4.1" (B501 base) |
| Height | 2.0" installed in B300-6 base |
| Approvals | UL, ULC, CSFM, FM |
| Weight | 3.4 oz (95 g) |
Information About SD365-IV

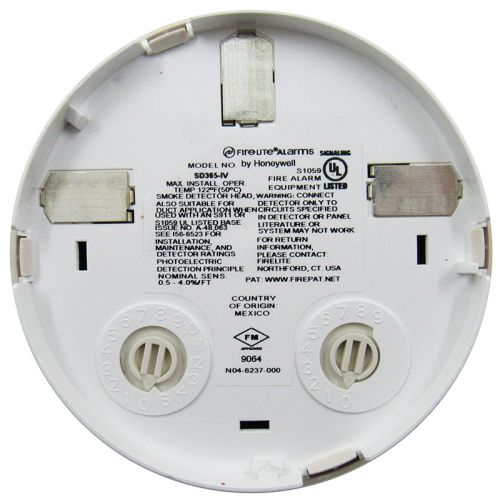

The SD365-IV is part of the Fire-Lite SD365 series, which replaces the SD355 line of detectors. It uses a photoelectronic sensing chamber and addressable-analog communication to transmit smoke density information to the control panel. Featuring rotary address switches, dual-color LEDs, and compatibility with LiteSpeed® and CLIP protocols, it ensures flexible integration with Fire-Lite systems. The detector is available in multiple finishes, supports up to 159 addresses, and includes a 6-inch base and trim ring for streamlined installation.
Key Features
- Photoelectric Sensing: Provides accurate detection of visible smoke particles from smoldering fires.
- Addressable Technology: Each device can be uniquely identified by the control panel for faster response.
- Protocol Compatibility: Operates in both LiteSpeed® and CLIP communication modes.
- Multi-Color LED Indicators: Red, green, or amber LEDs offer clear status visibility from all directions.
- Automatic Sensitivity Adjustment: Compensates for environmental changes to minimize false alarms.
- Compact Profile: Low-profile design integrates well with modern ceilings.
- Expanded Options: Available in white, ivory, and black to suit different installations.
- Easy Installation: Includes a 6" mounting base and trim ring for quick setup.
The SD365-IV delivers the reliability and precision required for modern fire alarm systems in diverse building environments.
