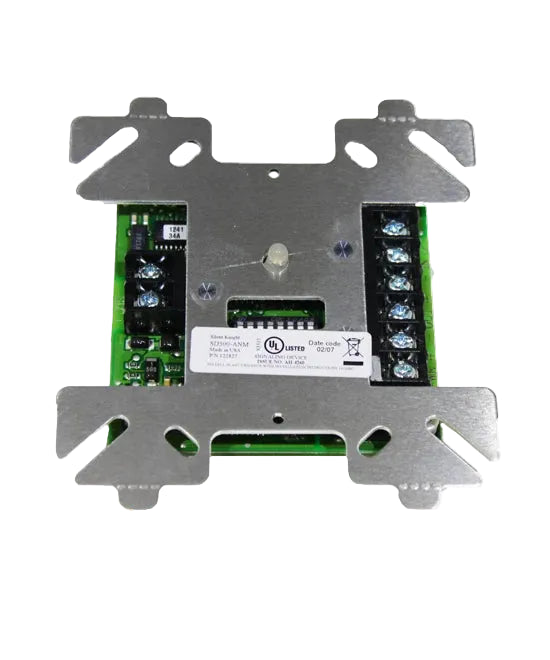

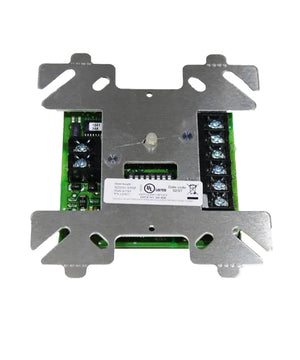

SD500-ANM | Honeywell Silent Knight Addressable Notification Module 2A
- Regular price
- $274.55
- Sale price
- $274.55
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SD500-ANM
Description
The Honeywell SD500-ANM Addressable Notification Module is an intelligent module designed to control and supervise notification appliance circuits within Silent Knight fire alarm systems. Operating at 24 VDC, it provides up to 2 amps of notification appliance current for horns, strobes, and combination devices. Featuring DIP switch programming and LED status indication, it enables flexible and supervised NAC control in addressable installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Alarm Systems |
| Part Number | SD500-ANM |
| Subcategory | Addressable Notification Modules |
| Model | Silent Knight SD500 Series |
| Device Type | Addressable Notification Module |
| Operating Voltage | 24 VDC |
| Notification Appliance Current | 2 Amp Max |
| SLC Current | 0.55 mA |
| Auxiliary Power Current | Standby: 6 mA; Alarm: 56 mA |
| Mounting | 4-Square Electrical Box |
| Programming Method | DIP Switch |
| Status Indicator | LED |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Weight | 0.5 lb (approx.) |
Information About SD500-ANM
The SD500-ANM is an addressable notification module developed for use with Honeywell Silent Knight fire alarm control panels utilizing the SD500 series protocol. It installs in a standard 4-square electrical box and connects to the signaling line circuit (SLC) for communication and supervision. The module draws minimal SLC current and provides a supervised 24 VDC output rated up to 2 amps for notification appliances. Designed for indoor commercial applications, it operates within standard fire alarm temperature ranges and includes LED indication for operational and alarm status feedback.
Key Features:
- Addressable NAC Control: Provides supervised notification appliance circuit control.
- 2 Amp Output Capacity: Supports up to 2A of 24 VDC notification appliance current.
- DIP Switch Programming: Allows manual address configuration and setup.
- LED Status Indicator: Visual indication of module communication and alarm condition.
- 4-Square Box Mounting: Designed for installation in standard electrical boxes.
- Low SLC Current Draw: Approximately 0.55 mA on the signaling line circuit.
- Aux Power Consumption: 6 mA standby; 56 mA during alarm condition.
- Wide Operating Temperature: Rated from 32°F to 120°F (0°C to 49°C).
The SD500-ANM delivers the reliability and precision required for supervised notification appliance control in addressable fire alarm systems.
