Part #: SD505-ADH Manufactured by: Honeywell
Regular price
$254.00
Sale price
$254.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The SD505-ADH is a steel-housed, addressable duct smoke detector with pre-installed sensor, designed for IntelliKnight pan...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: SD505-ADH
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Honeywell
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: SD505-ADH

Description / Specifications

Description

The Honeywell SD505-ADH is a discontinued analog addressable duct smoke detector designed to detect smoke and combustion products in HVAC air ducts. It prevents smoke re-circulation through ventilation systems and is built to work with IntelliKnight fire alarm panels via Silent Knight sensor modules.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category
Panel Accessories
Part Number SD505-ADH
Subcategory Enclosure
Housing Material Steel backbox with clear plastic cover
Pre-Installed Sensor SD505-APS (Photoelectric)
System Compatibility Silent Knight IntelliKnight series
Communication 2-wire connection to SLC loop
Alarm Indication LED on sensor head
Mounting Options Duct mount with included template
Sampling Tubes Supported 3 standard lengths (field selectable)
Wiring Terminals Large terminal screws for ease of use
Dimensions (H×L×W)
14 × 13 × 7 in
Weight 4 lbs





Information About SD505-ADH

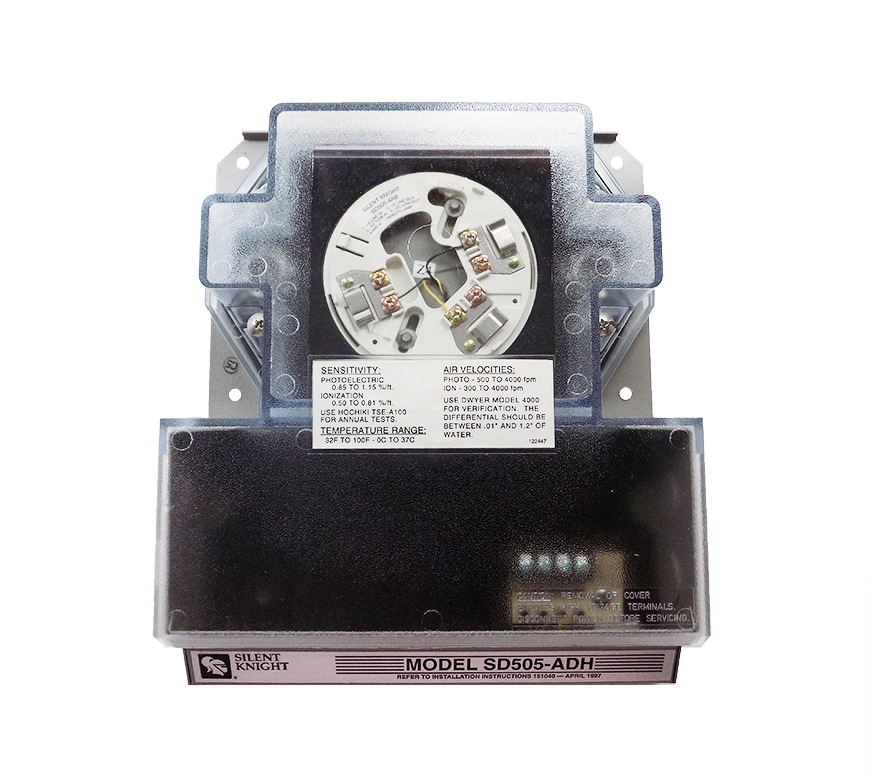

The SD505-ADH features a heavy-duty steel housing with a clear plastic cover and includes a pre-installed SD505-APS photoelectric smoke detector. This model detects smoke present in airflow through HVAC systems and communicates directly with the IntelliKnight series control panels. The panel responds by activating programmed responses such as shutting down fans and blowers. The unit mounts directly to ducts and supports three standard sampling tube lengths. A two-wire connection to the SLC loop simplifies installation, and the unit is UL listed for commercial and industrial applications.

Key Features:

  • Pre-Installed Sensor: Comes with SD505-APS analog photoelectric sensor for immediate integration.
  • Addressable Detection: Connects to IntelliKnight control panels via 2-wire SLC loop for advanced programming.
  • Early Smoke Detection: Monitors air in ducts to detect smoke before it enters building areas.
  • Durable Housing: Features rugged steel backbox and clear plastic cover for visibility and protection.
  • Visual Alarm Indication: Integrated LED indication on the sensor head for local status confirmation.
  • Flexible Mounting: Includes template and supports 3 standard tube lengths for various duct sizes.
  • Large Terminal Screws: Simplifies wiring and connection for installers.
  • UL Listed for Duct Applications: Approved for use in commercial HVAC environments.
  • Discontinued Model: Still used in legacy IntelliKnight systems but replaced by newer models.
  • Compatible Detectors: Supports SD505-APS (photoelectric) and SD505-AIS (ionization) modules.

The SD505-ADH provides reliable duct smoke detection with direct addressable system integration for early warning and HVAC system response.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Honeywell SD505-ADH is a discontinued analog addressable duct smoke detector designed to detect smoke and combustion products in HVAC air ducts. It prevents smoke re-circulation through ventilation systems and is built to work with IntelliKnight fire alarm panels via Silent Knight sensor modules.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category
Panel Accessories
Part Number SD505-ADH
Subcategory Enclosure
Housing Material Steel backbox with clear plastic cover
Pre-Installed Sensor SD505-APS (Photoelectric)
System Compatibility Silent Knight IntelliKnight series
Communication 2-wire connection to SLC loop
Alarm Indication LED on sensor head
Mounting Options Duct mount with included template
Sampling Tubes Supported 3 standard lengths (field selectable)
Wiring Terminals Large terminal screws for ease of use
Dimensions (H×L×W)
14 × 13 × 7 in
Weight 4 lbs





Information About SD505-ADH

The SD505-ADH features a heavy-duty steel housing with a clear plastic cover and includes a pre-installed SD505-APS photoelectric smoke detector. This model detects smoke present in airflow through HVAC systems and communicates directly with the IntelliKnight series control panels. The panel responds by activating programmed responses such as shutting down fans and blowers. The unit mounts directly to ducts and supports three standard sampling tube lengths. A two-wire connection to the SLC loop simplifies installation, and the unit is UL listed for commercial and industrial applications.

Key Features:

  • Pre-Installed Sensor: Comes with SD505-APS analog photoelectric sensor for immediate integration.
  • Addressable Detection: Connects to IntelliKnight control panels via 2-wire SLC loop for advanced programming.
  • Early Smoke Detection: Monitors air in ducts to detect smoke before it enters building areas.
  • Durable Housing: Features rugged steel backbox and clear plastic cover for visibility and protection.
  • Visual Alarm Indication: Integrated LED indication on the sensor head for local status confirmation.
  • Flexible Mounting: Includes template and supports 3 standard tube lengths for various duct sizes.
  • Large Terminal Screws: Simplifies wiring and connection for installers.
  • UL Listed for Duct Applications: Approved for use in commercial HVAC environments.
  • Discontinued Model: Still used in legacy IntelliKnight systems but replaced by newer models.
  • Compatible Detectors: Supports SD505-APS (photoelectric) and SD505-AIS (ionization) modules.

The SD505-ADH provides reliable duct smoke detection with direct addressable system integration for early warning and HVAC system response.
